— Pins on the plug of the extension cord are the
same number, size and shape of those of the plug
on the charger,
— Extension cord is properly wired and in good
electrical condition, and
— Wire size is large enough for AC ampere rating of
charger as follows
100-120 Volt
Charger
Cord Length (feet)
25
50
100
220-240 Volt
Charger
Cord Length
(meters)
50
75
Recommended Extension Cord Length
SAVE THESE
INSTRUCTIONS
Functional
Description
B
F
A

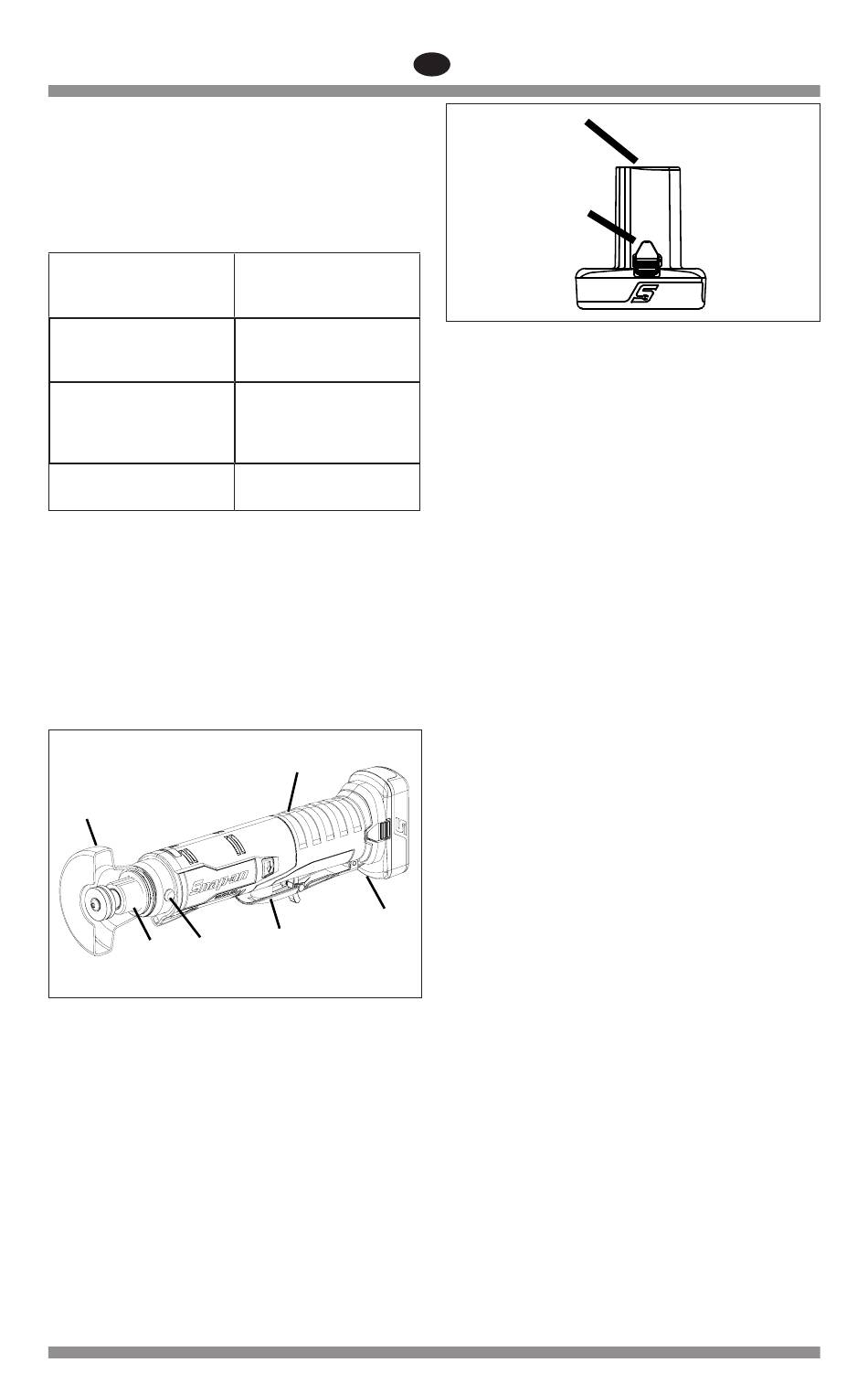

Figure 1: Cutoff Tool
A – Spindle
B – Wheel Guard
C – Battery Pack
D – Trigger
E – Grip
F – Spindle Lock
ZCTCO861CE Rev C
EN
EN
Wire Size (AWG)
18
18
18
Wire Size (mm)
0.75
1.0
E
C
D
8
A
B
Figure 2: Battery Pack
A – Terminal
B – Latch Button
Specifications
Free Running Speed ......................... 25,000 r/min
Wheel Size .......................................... 3" (76 mm)
Max. Wheel Thickness .............. 0.125" (3.18 mm)
Arbor Size ..................................... 3/8" (9.53 mm)
Motor Voltage ........................................14.4 VDC
Weight with Battery Pack ......... 2.95 lbs. (1.34 kg)
Length ....................................... 11.88" (302 mm)
Height ........................................... 3.25" (83 mm)
Width ............................................. 3.38" (86 mm)
Operating Temperature
............................... -4°F(-20°C) to 140°F(60°C)
Storage Temperature
............................... -4°F(-20°C) to 140°F(60°C)
Noise* (Tested in accordance with UL 62841-1,
Annex I)
Sound Pressure Level (A)
CTCO861 ................................................86.6 dB
Uncertainty, K ...........................................3.3 dB
Sound Power Level (A)
CTCO861 ................................................98.2 dB
Uncertainty, K ...........................................3.3 dB
Vibration* (Tested in accordance with UL 62841-1,
Annex I)
Vibration Level
CTCO861 ...............................................2.5 m/s
Uncertainty, K ......................................0.43 m/s
*These declared values were obtained by laboratory
type testing with the stated standards and are not
adequate for use in risk assessments. Values
measured in individual work places may be higher.
Values and risk of harm experienced by an individual
user are unique and depend upon the environment
and manner in which the user works, the work piece
and the workstation design, as well as upon the
exposure time and the physical condition of the user.
Snap-on disclaims liability for the consequences of
using the declared values, instead of values reflecting
the actual exposure determined in an individual risk
assessment in a work place situation over which we
have no control.
