o Each slot in the CFS is labelled with a code, such as "1A," which indicates the
specific slot number.

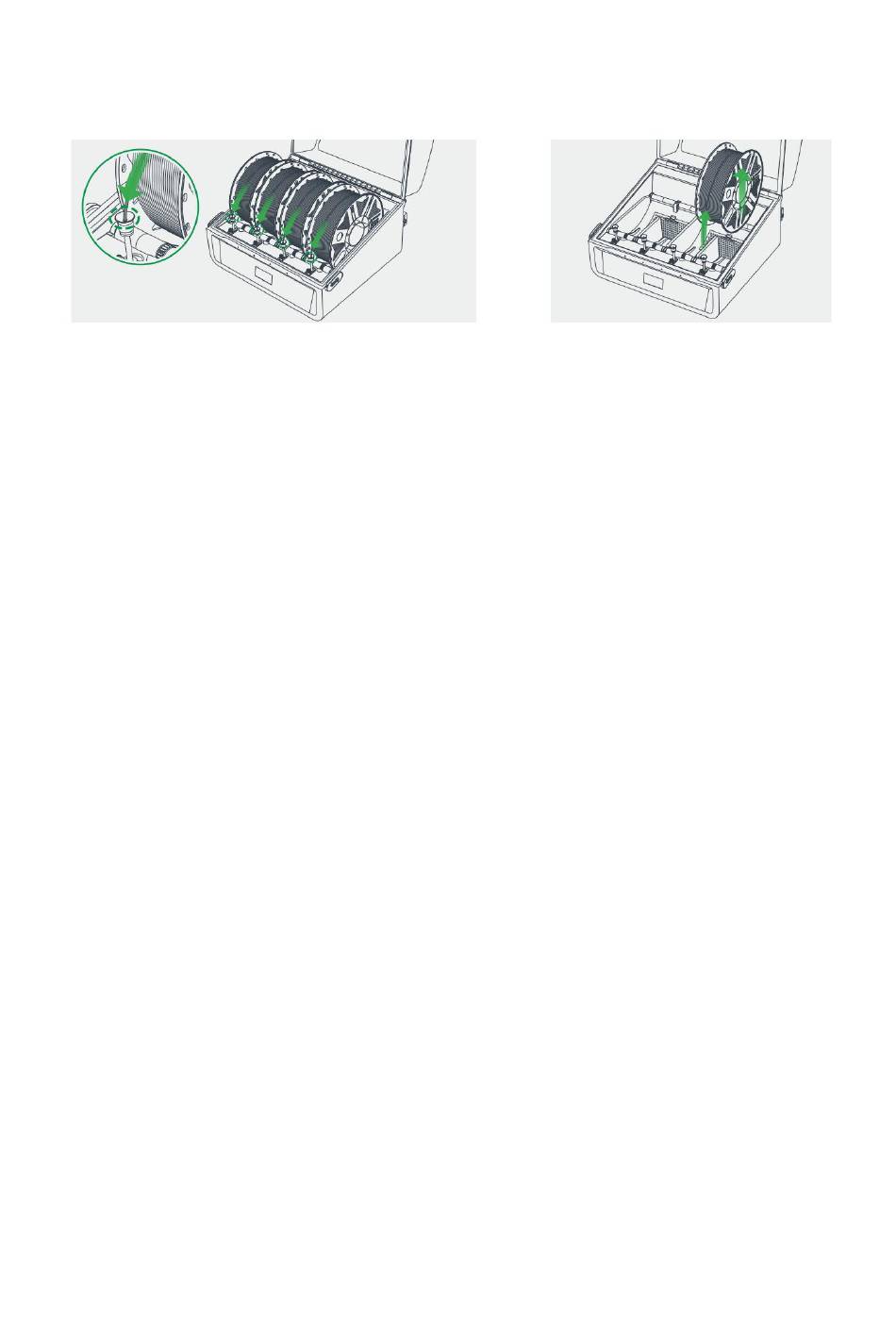

Loading Filament
o Place the filament spool into the designated slot in the CFS.
o Align the filament tip with the Teflon tube in the corresponding silo.
o Gently push the filament into the tube until you feel resistance. Release the
filament once you feel a pulling force, as the CFS will automatically load it.
Unloading Filament
o Before unloading, ensure the filament is no longer inside the printer's extruder.
o If the filament is still in the extruder, use the "Retract" button to pull the
filament back into the CFS.
o Once the filament is fully retracted, simply lift the spool and remove it from the
CFS.
CFS Usage
Connecting Multiple CFS Units for Use
The diagram illustrates a one-to-one connection setup for integrating the CFS with a
printer. The connection flow is as follows:
CFS to Filament Buffer:
o The CFS is connected to the Filament Buffer using a PTFE tube for
filament transfer.
o Power supply and data communication are also routed directly between
the CFS and the Filament Buffer.
Filament Buffer to Printer:
o The Filament Buffer is connected to the printer via another PTFE tube,
which delivers the filament to the printer for use.
The diagram demonstrates a one-to-four connection setup where multiple CFS units
are connected to a single printer via a shared Filament Buffer. The connection flow is as
follows:
9
