Commissioning

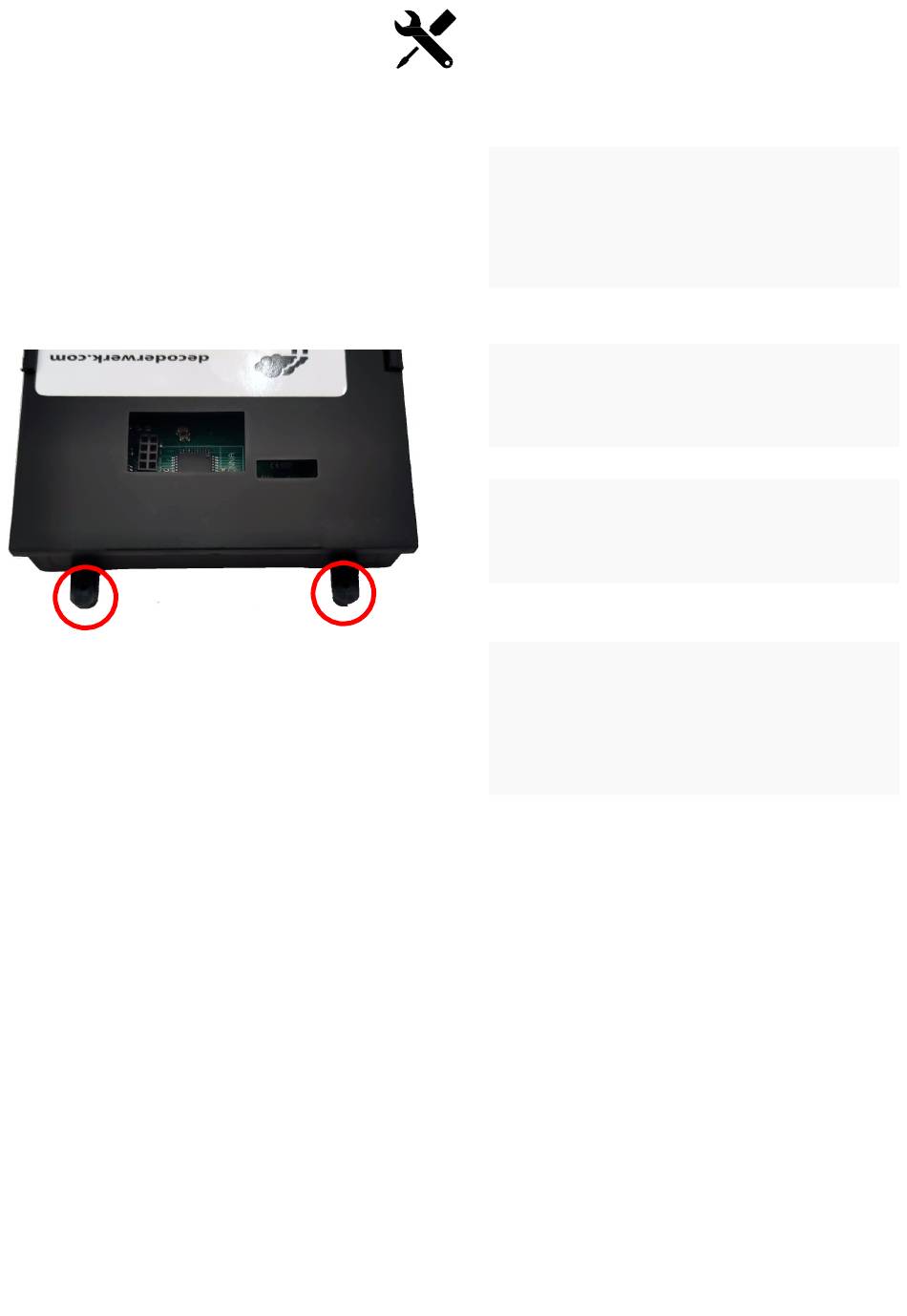

There are two fixing holes for
◆
mounting the Deco ders.
Thanks to the sturdy protective housing, the
◆
surface doesn't matter
The installation location should be protected
◆
from accidental contact by persons or objects.

Installation

Dimensions
Width 93mm
◆
Depth 77mm
◆
Height approx. 35mm
◆
Fastening
2 fixing holes M3
◆
Inner diameter 3.5mm
◆
Connections
Screw terminal connections
◆
Maximum cross-section 1.5mm
◆
Field of application
The decoders are designed for a storage
◆
and continuous operating temperature
range of 0-50° Celsius.
Avoid large temperature fluctuations.
◆
