Commissioning
The occupied and feedback module elder
◆
combines the detection, i.e. the current
detection, of occupied sections and can
report these back directly via the S88,
LocoNet and RS buses for further
processing. The module is completely
galvanically isolated.
The 8 red LEDs in the cut-out indicate the
◆
track occupancy.
Observe the correct polarity of PWR to the
◆
control panel as shown in the illustration.
Connectio
n
Performance
30V DC voltage
◆
30V alternating voltage
◆
3A current per channel
◆
Memory
The decoder can freeze the last state if the digital
voltage is removed.

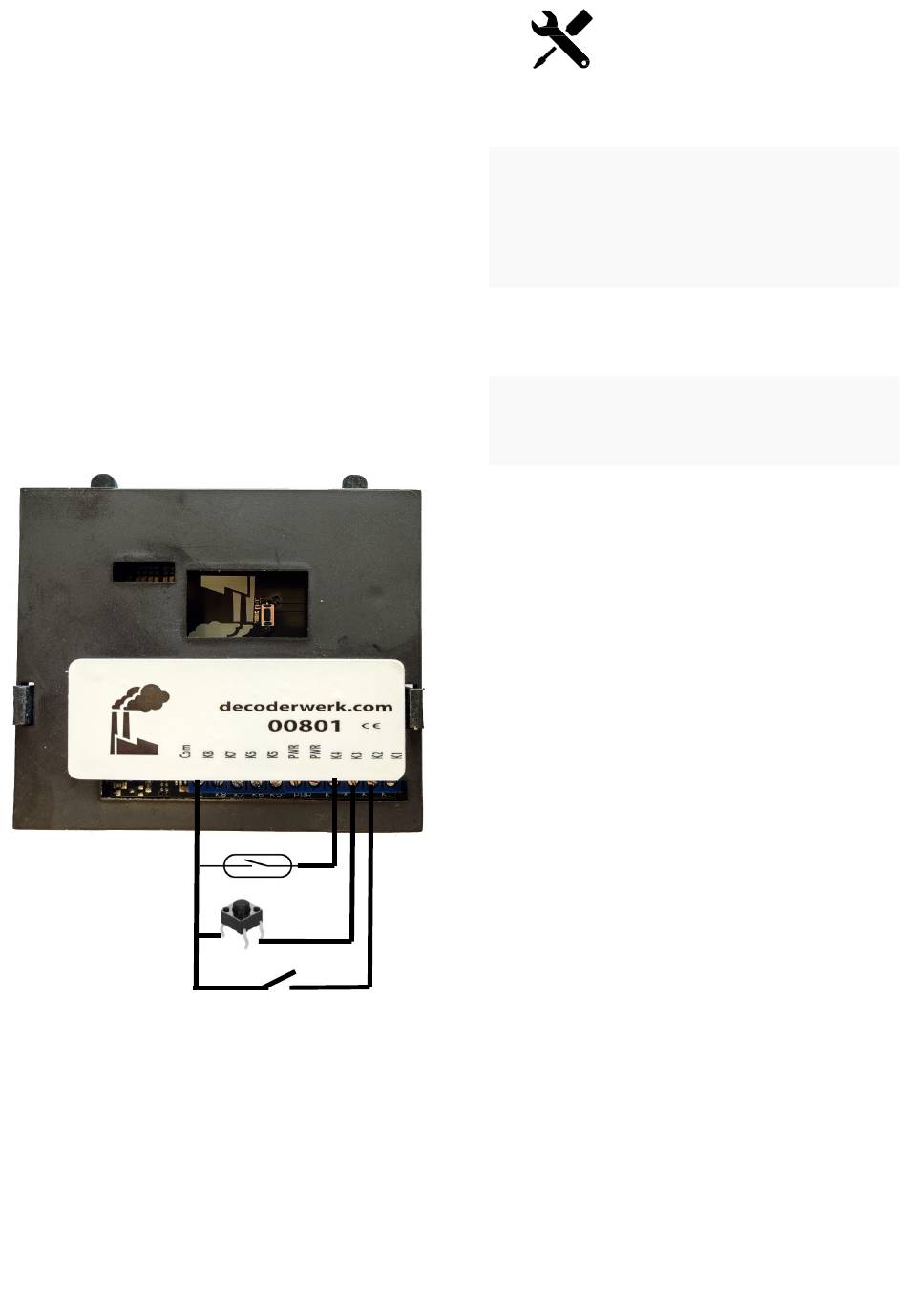

You can connect any switches such as reed
contacts, push-buttons, switches and much
more to connections K1-8. The inputs are
electrically isolated and switch the
optocouplers directly.
Switch these push-buttons, switches, reeds
etc. against the common earth connection "C".
The PWR connections are connected directly to
the digital central control unit, regardless of
which bus is used.
7
