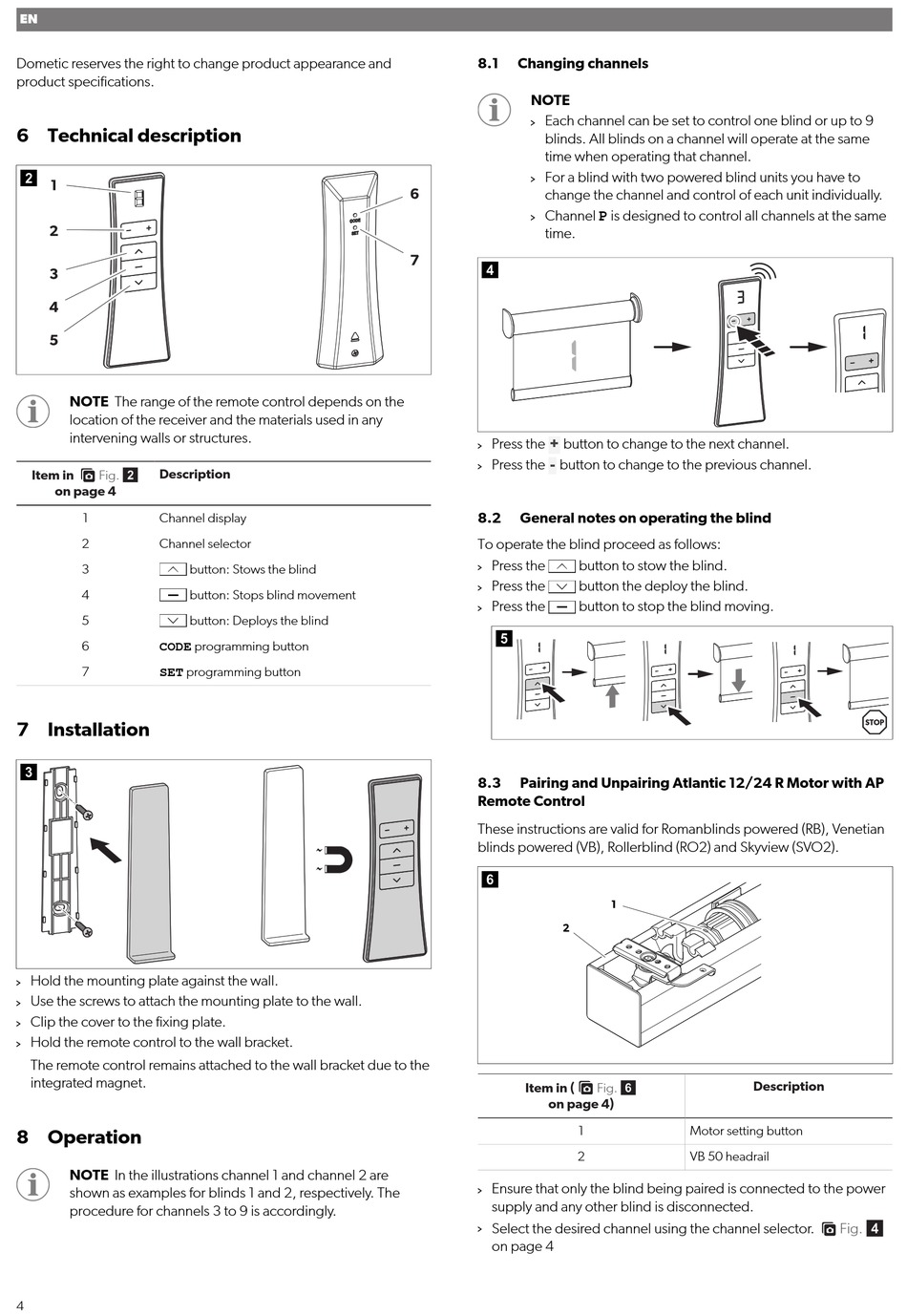

Dometic AP Remote control Montage- Und Bedienungsanleitung Seite 4

EN
Dometic reserves the right to change product appearance and
product specifications.
6 Technical description

NOTE The range of the remote control depends on the
location of the receiver and the materials used in any
intervening walls or structures.
Description
Item in Fig. 
on page 4
1 Channel display
2 Channel selector
3
4
5
6 CODE programming button
7 SET programming button
7 Installation

Hold the mounting plate against the wall.
Use the screws to attach the mounting plate to the wall.
Clip the cover to the fixing plate.
Hold the remote control to the wall bracket.
The remote control remains attached to the wall bracket due to the
integrated magnet.
8 Operation
NOTE In the illustrations channel 1 and channel 2 are
shown as examples for blinds 1 and 2, respectively. The
procedure for channels 3 to 9 is accordingly.
4
button: Stows the blind
button: Stops blind movement
button: Deploys the blind
8.1 Changing channels
NOTE
Each channel can be set to control one blind or up to 9
blinds. All blinds on a channel will operate at the same
time when operating that channel.
For a blind with two powered blind units you have to
change the channel and control of each unit individually.
Channel P is designed to control all channels at the same
time.

+
Press the button to change to the next channel.
-
Press the button to change to the previous channel.
8.2 General notes on operating the blind
To operate the blind proceed as follows:
Press the button to stow the blind.
Press the button the deploy the blind.
Press the button to stop the blind moving.

8.3 Pairing and Unpairing Atlantic 12/24 R Motor with AP
Remote Control
These instructions are valid for Romanblinds powered (RB), Venetian
blinds powered (VB), Rollerblind (RO2) and Skyview (SVO2).

Item in ( Fig. 
on page 4)
1
2
Ensure that only the blind being paired is connected to the power
supply and any other blind is disconnected.
Select the desired channel using the channel selector.
on page 4
Description
Motor setting button
VB 50 headrail
Fig. 
