1.4 Technical data
230 V ~ 50 Hz ( ~ alternating current)
Rated voltage:
Rated power:
2200 W
Mode of operation: S1*
Protection class:
I
Highest speed of the compressor: 2850 min
Pressure vessel volume: 50 l
Permissible maximum pressure: max. 10 bar
Theo. Suction capacity approx. 412 l/min
Theo. Output approx. 148 l/min (7 bar)
Protection class: IP32**
IP32
Dimensions: 784 x 418 x 695 mm
Total mass: 41 kg
Compressor oil: L-DAB 46
*
Continuous operation under constant load
**
IP3X: Protection against the intake of foreign
bodies Ø > 2.5 mm.
Keep tools and wires away from the unit.
IPX2: Protection against water falling at an angle (dripping wa-
ter), 15° relative to the unit's standard operating position.

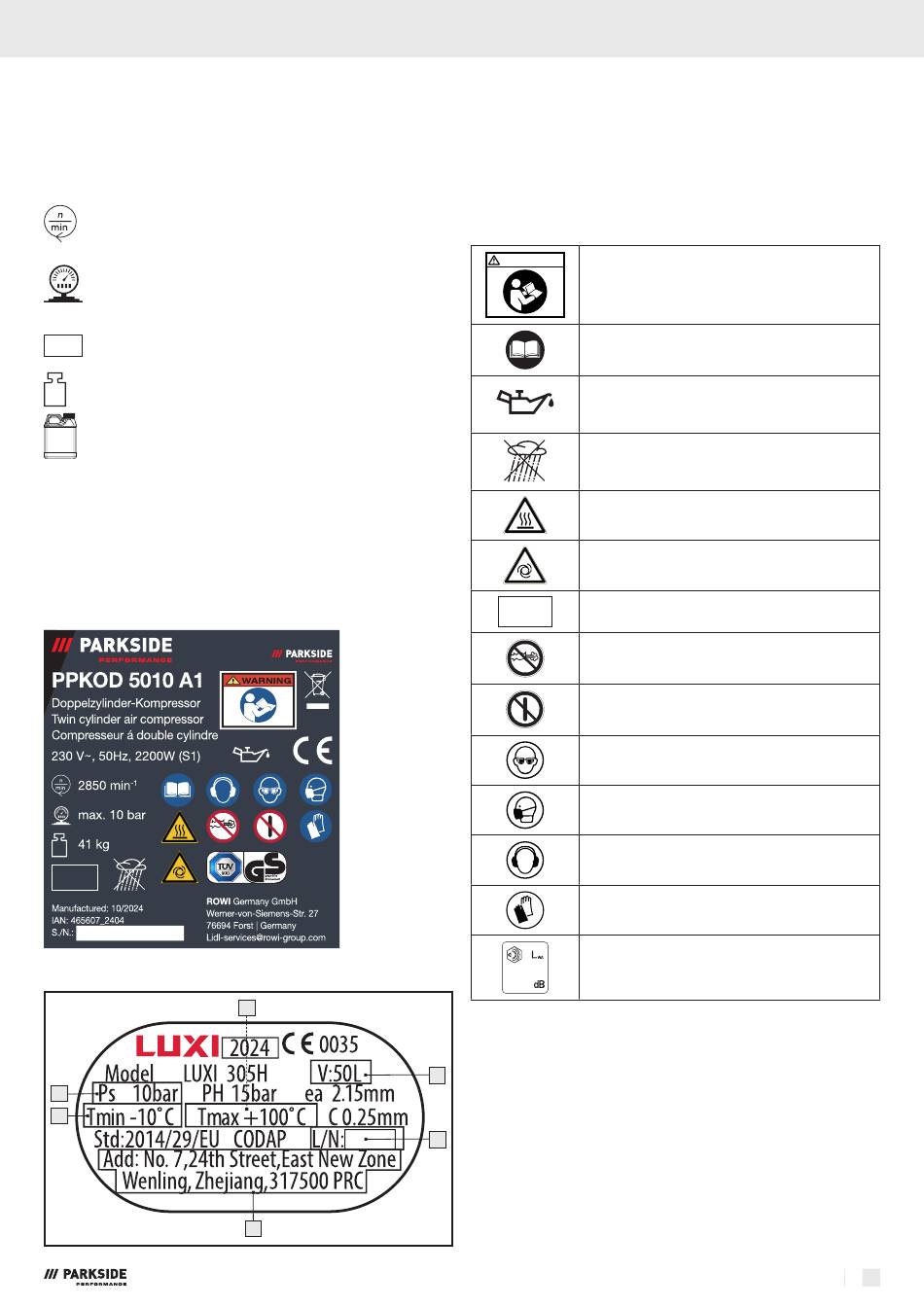

NAMEPLATE
IP32
BADGE
a
c
-1
WEEE
b
e
a) maximum operating pressure (hp in bar);
b) maximum operating temperature (Tmax in °C);
c) minimum operating temperature (Tmin in °C);
d) capacity of the vessel (V in L);
e) name, registered trade name or registered trademark and ad-
dress of the manufacturer;
f) type identification and serial or batch identification of the vessel.
Explanations of all symbols found on the product
WARNING
WARNING!
Read the manual before use.
Manual must be read.
WARNING!
Before initial start-up: 1- fill up with oil
2- replace oil plug
Do not expose the machine to rain. The
device may only be stationed, stored and
operated under dry ambient conditions.
Risk of high temperatures
Compressor unit may start without warning.
Protection class
IP32
Do not open the valve before the
air hose is connected.
Do not leave device on
Wear eye protection
Wear respiratory protection
Wear ear protection
Wear protective gloves
Guaranteed sound power level
95
Noise emission values
Sound pressure level L
Uncertainty K
= 1.89 dB
d
pA
Sound power level L
WA
Uncertainty K
= 1.89 dB
WA
f
Guaranteed sound power level: 95 dB (A)
Wear ear protection!
= 73.5 dB (A)
pA
= 93.5 dB (A)
