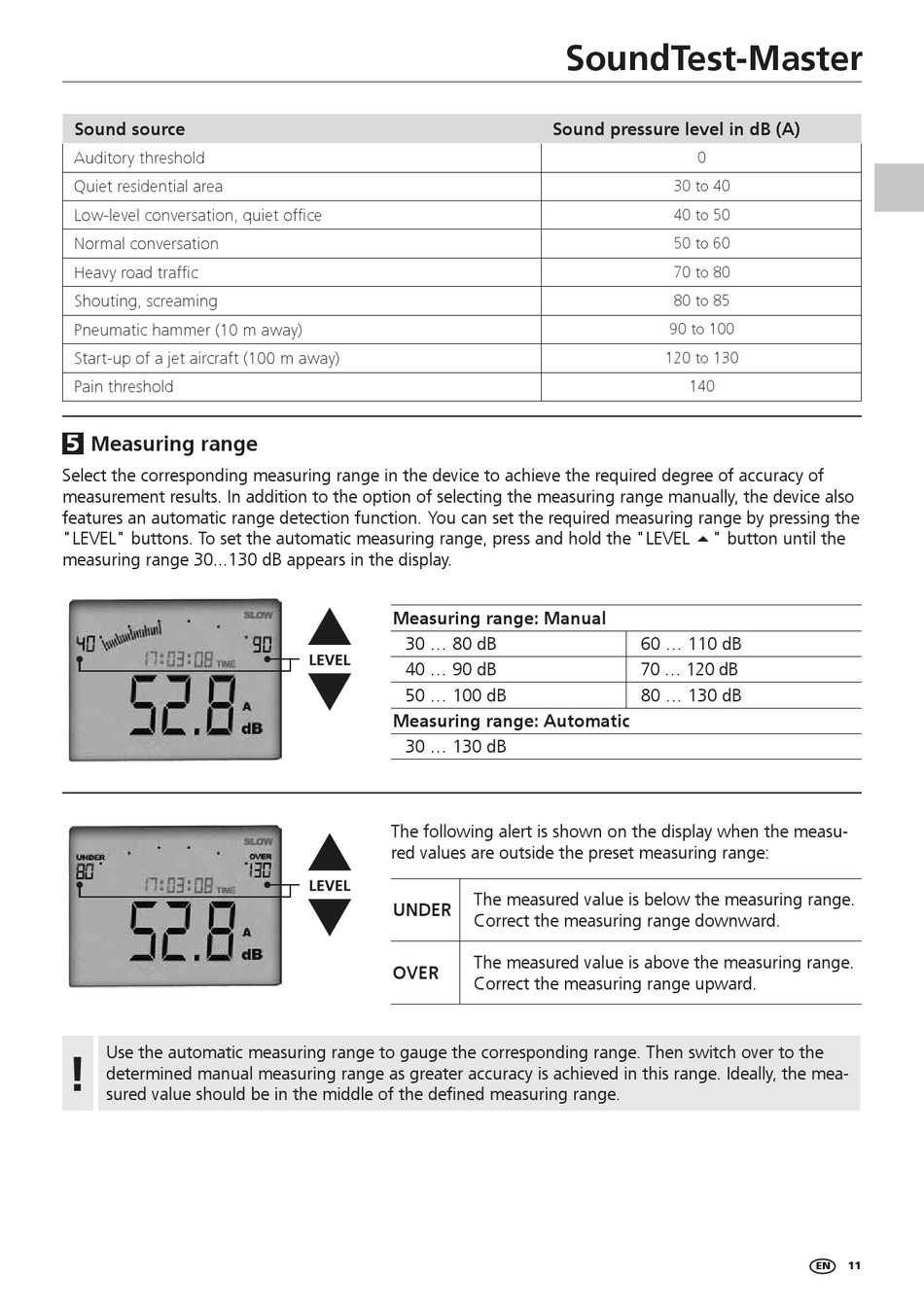

LaserLiner SoundTest-Master Bedienungsanleitung Seite 11

Sound source
Auditory threshold
Quiet residential area
Low-level conversation, quiet office
Normal conversation
Heavy road traffic
Shouting, screaming
Pneumatic hammer (10 m away)
Start-up of a jet aircraft (100 m away)
Pain threshold
5
Measuring range
Select the corresponding measuring range in the device to achieve the required degree of accuracy of
measurement results. In addition to the option of selecting the measuring range manually, the device also
features an automatic range detection function. You can set the required measuring range by pressing the
"LEVEL" buttons. To set the automatic measuring range, press and hold the "LEVEL 5" button until the
measuring range 30...130 dB appears in the display.
Use the automatic measuring range to gauge the corresponding range. Then switch over to the
!
determined manual measuring range as greater accuracy is achieved in this range. Ideally, the mea-
sured value should be in the middle of the defined measuring range.
Sound pressure level in dB (A)
Measuring range: Manual
30 ... 80 dB
40 ... 90 dB
50 ... 100 dB
Measuring range: Automatic
30 ... 130 dB
The following alert is shown on the display when the measu-
red values are outside the preset measuring range:
The measured value is below the measuring range.
UNDER
Correct the measuring range downward.
The measured value is above the measuring range.
OVER
Correct the measuring range upward.
SoundTest-Master
0
30 to 40
40 to 50
50 to 60
70 to 80
80 to 85
90 to 100
120 to 130
140
60 ... 110 dB
70 ... 120 dB
80 ... 130 dB
