tempLED RayProof V3 Montageanleitung Seite 17

MONTAGEANLEITUNG
tempLED RayProof V3 Serie
DipSwitch-Einstellungen

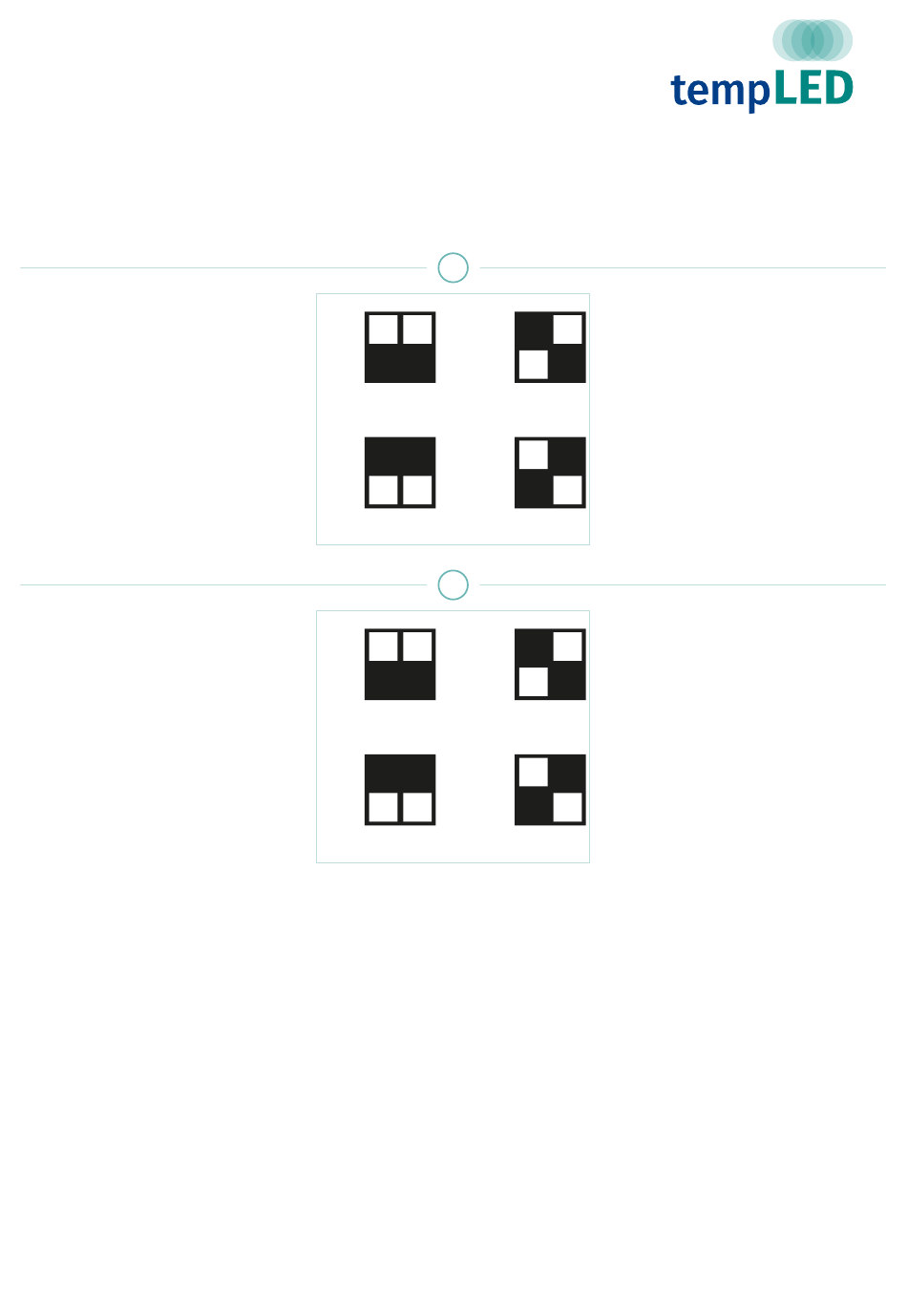

Schritt 4:
Einstellungen für RayProof V3 65
Im Uhrzeigersinn:
1 | 2
ON | ON
OFF | ON
ON | OFF
OFF | OFF
Schritt 5:
Einstellungen für RayProof V3 80
Im Uhrzeigersinn:
1 | 2
ON | ON
OFF | ON
ON | OFF
OFF | OFF
ON
OFF
65 Watt
55 Watt
ON
45 Watt
OFF
36 Watt
ON
OFF
80 Watt
75 Watt
ON
70 Watt
OFF
65 Watt
© tempLED GmbH | Kaiserreich Straße 4
info@tempLED.de | www.tempLED.de
4
ON
OFF
1 2 1
ON
OFF
1 2 1
5
ON
OFF
1 2 1
ON
OFF
1 2 1
| 83088 Kiefersfelden
| WEEE-Reg.-Nr.: DE 26163456
V.01/2024
INSTALLATION GUIDE
tempLED RayProof V3 series
DipSwitch settings
Step 4:
Settings for RayProof V3 65
Clockwise:
2
1 | 2
ON | ON
OFF | ON
ON | OFF
OFF | OFF
2
Step 5:
Settings for RayProof V3 80
Clockwise:
2
1 | 2
ON | ON
OFF | ON
ON | OFF
OFF | OFF
2
| Deutschland
65 watts
55 watts
45 watts
36 watts
80 watts
75 watts
70 watts
65 watts
