POWER SUPPLY
The device uses an auto-range power supply that accepts input voltages between 100 und 240 volts.
1
Connect the device via the mains cable to a grounded mains socket.
2
To switch off the unit, disconnect the power plug.
3
Do not connect the unit to the mains voltage via a dimmer.
4

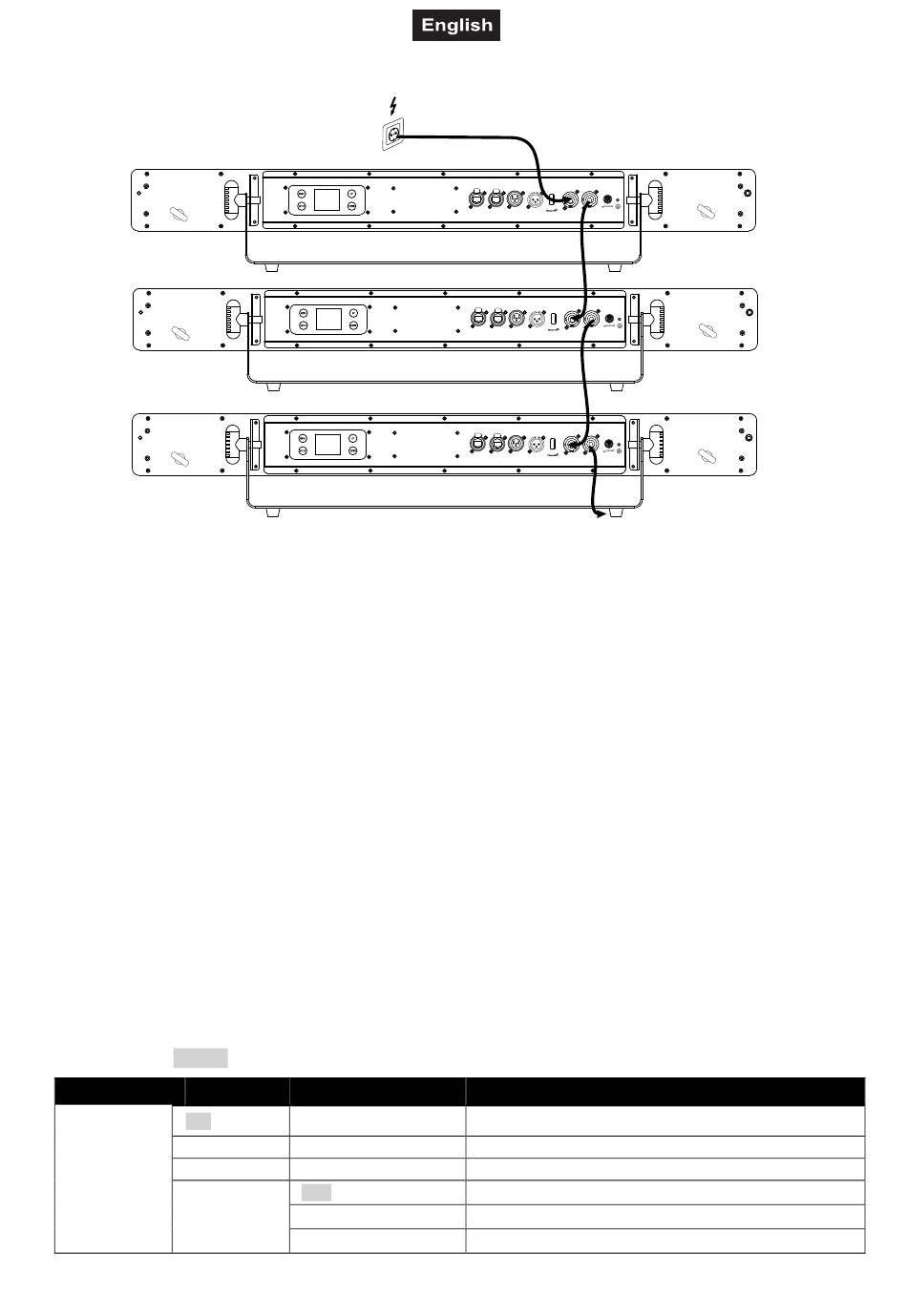

The jack POWER OUT allows for power supply of further devices. To interconnect several devices,
connect the jack POWER OUT to the input POWER IN of the next unit until all units are connected.
Matching power cables with P-Con plugs are available as accessories. In this manner, up to 8 devices
can be linked at 230/240 input voltage and up to 4 devices at 110/115 input voltage.
OPERATION
After you connected the effect to the mains, the device requires a short initialization process and is then
ready for operation. All settings remain stored even if the device is disconnected from the mains.
The built-in control panel of the unit features four operating buttons and a display which shows all operation
statuses. The device can be operated in stand-alone mode via the control board or in DMX-controlled mode
via any commercial DMX controller. With a suitable radio receiver, the DMX control signal can also be
transmitted wirelessly to the unit. The operating modes can be selected by means of the display and the
operating buttons.
Menu structure
Default settings shaded
Submenu 1
SSubmenu 2
001 – 512
Prev
DMX Setup
Next
ADDR
(Address)
Chan*
NETWORK
NETWORK
Submenu 3
4CH
10CH
15CH
33/44
NETWORK
DMX IN
DMX OUT
POWER IN
POWER OUT
100-240V~ 50/60Hz
NETWORK
NETWORK
DMX IN
DMX OUT
POWER IN
POWER OUT
100-240V~ 50/60Hz
NETWORK
DMX IN
DMX OUT
POWER IN
POWER OUT
100-240V~ 50/60Hz
Description
Setting the DMX starting address
Quick DMX addressing to previous
Quick DMX addressing to next
4-channel mode
10- channel mode
15- channel mode
00159459, Version 1.0
