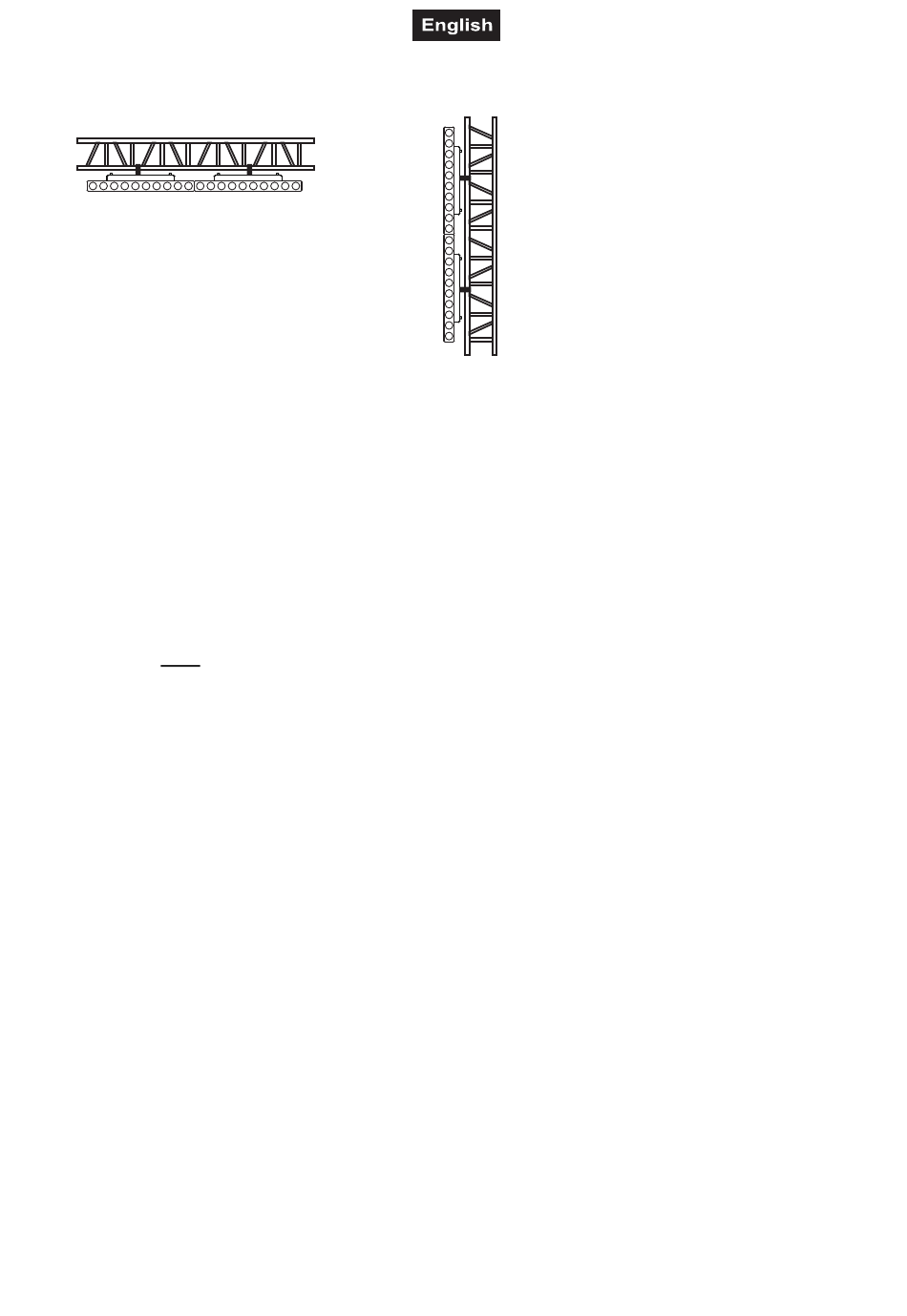

Connecting several devices via connecting fasteners
When connecting several devices, please consider the load bearing capacity of your trussing and please
follow these instructions.
For connection you will need an Allen key size
5.
Lay the devices you wish to connect in front of you with the back side facing you. Arrange the devices in the
desired sequence.
Each device has a connecting fastener on each outer side to connect other devices horizontally. Now align
the devices so that the locking mechanisms lie parallel to the devices to be connected.
Insert the Allen key into the locking mechanism and turn until the connecting fastener latches into place.
Please pay attention that all connecting fasteners are completely latched with the connected devices.
Please note: Each device must be mounted with the mounting-bracket to your trussing system using an
appropriate clamp.
Always install an appropriate safety bond.
30/44
00159459, Version 1.0
