Operation via Art-Net
For use via appropriate lighting control software supporting Art-Net. The device can be configured via the
control panel.
To be able to operate the device in Art-Net mode, it must first be set to Art-Net under the menu item ADVA
=>Network => Comm Choose, Art-Net. (see Menu structure).
Data Connection
The device uses a RJ45 data connection for connection to a computer or a previous or subsequent device.

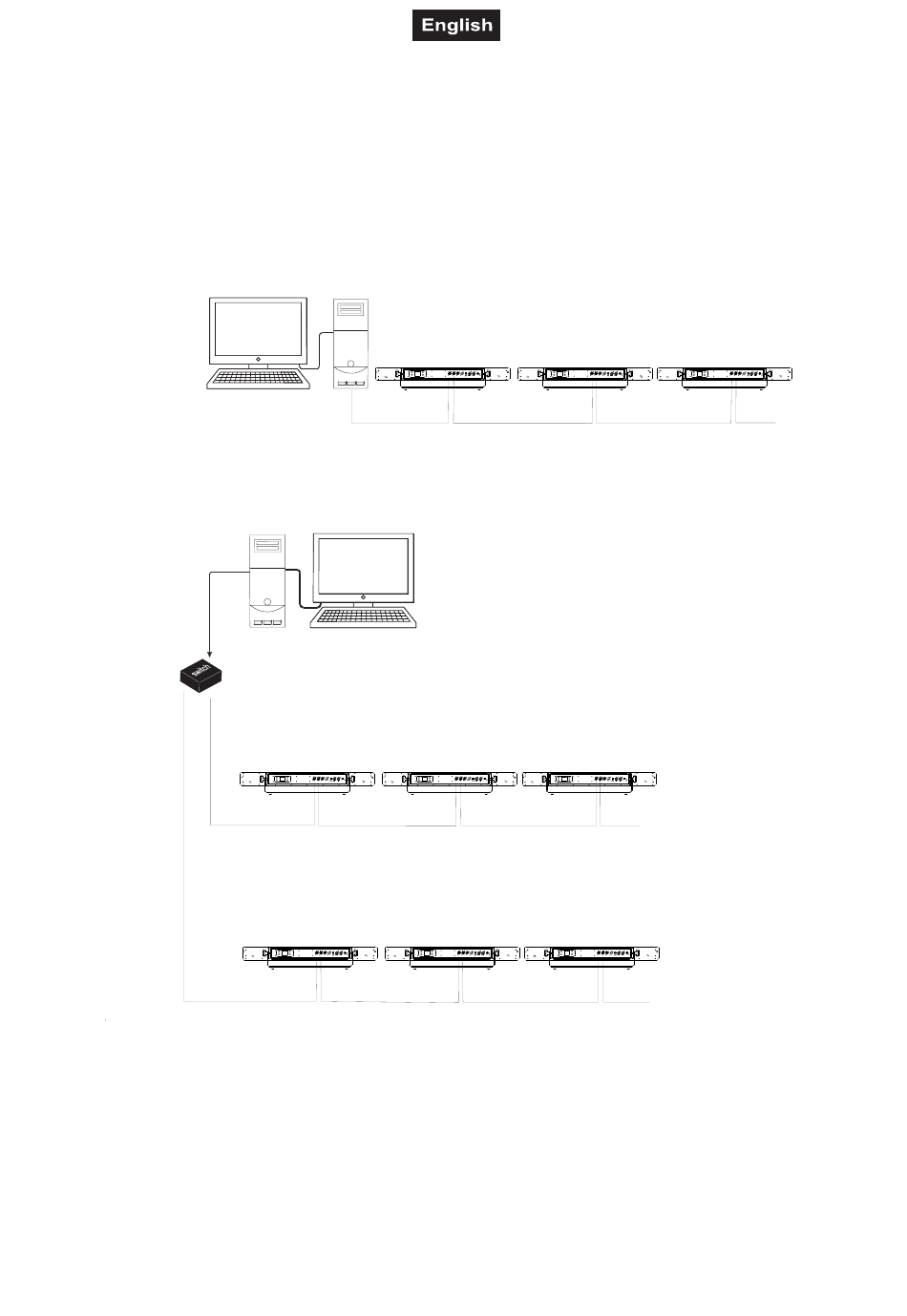

To link all data ports the wiring can be carried out according to the following two installation methods.
Interconnect the devices with network cables. The network ports can be used as inputs and outputs, as
desired.
Connect the first device in the chain to the computer's network card (optionally through a network switch)
with a network cable.
If needed, cables up to 100 meters long may be used (point-to-point connection provided).
Please refer to the instructions under Menu structure.
