OPeRaTInG The maChIne
2.
2.1
2.2
2.3
2.4
2.5
Operating the machine
Range of applications
Information
Stripping of floor coverings on dry floors. Floor coverings such as carpets, vinyl, coatings,
paint or similar. Only CONTEC / TYROLIT tools can be used. The use of the machine out-
side is only possible in dry weather.
Operational function
The floor stripper removes any bonded floor covering by using a vibrating blade.
The blade is driven by an electric motor (No.2). The speed is powered by a separa-
te motor (No.37).
The blade drive starts as soon as the machine is switched on and can easily be switched
using the ‹on off› switch (No.49). The drive unit motor starts by pressing the dead man
switch (No.44) on the handle bar. If the handle bar is pushed forward the drive unit con-
nects to the rear wheels (No.23) and the machine starts to move. The drive can be locked
in the moving position by stepping on the foot lever (No. 57) at the bottom of the handle
bar.
Preparation (carpet, coverings)
Before starting work, cut the floor covering into strips of about 25 cm (9.8 in). You can-
not work faster if you cut wider strips. To begin, cut one strip crosswise. Then lift the floor
covering slightly in order to get the blade underneath it. We recommend that you cut the
first strip at right angles to the main working direction. By doing so, access to the adjacent
strips is made easier.
Cut the strips smaller if the floor covering is bonded very securely, e.g. with an epoxy ad-
hesive. The blades are sharpened by the floor pavement. Therefore the blade only has to
be changed if it is twisted, rounded or becomes worn. The rear driving wheels (No.23) are
subject to wear. They have to be changed if necessary.
Adjusting the handle
The height of the handle bar can be adjusted to adapt the machine to the stature of the
operator. To adjust the height, loosen the two screws (No.42) at the base of the handle.

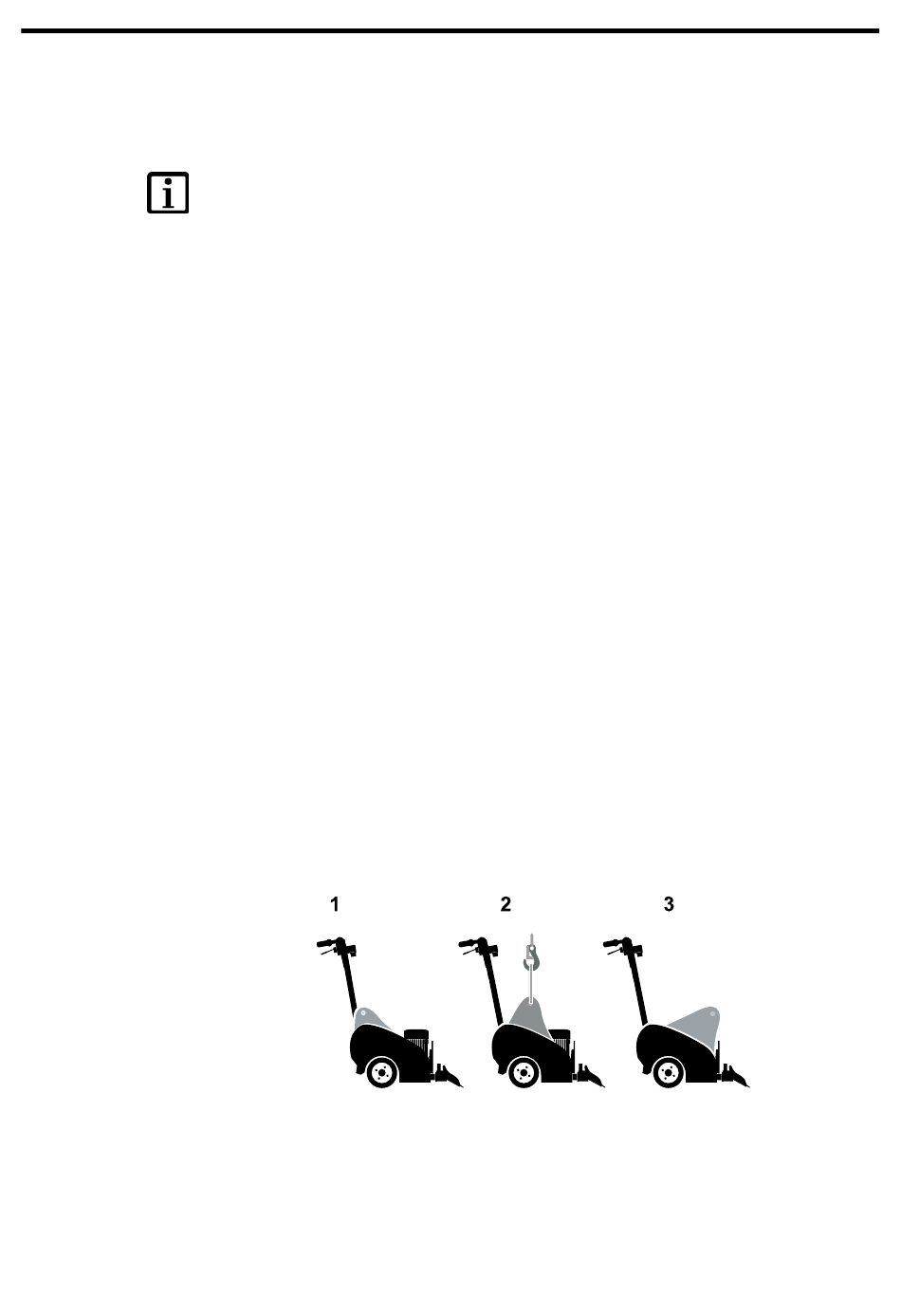

Adjusting the weights
The two center weights (Nos.103 and 104) can be locked in three different positions.
The locking bolt (No.111) is situated on the right hand outside weight (No.102). The bolt
must be pulled out before changing the position.
Position 1:
The weight is mostly on the rear traction wheels. The wheels don't slip and the drive is inc-
reased. Option for transporting the machine with a crane.
Position 2:
Middle position und crane transport.
7
