X-axis limit switch port
4
EXPAND INTERFACE
5
LASER
6
MAINBOARD INTERFACE
7
Y-axis motor port
Y-axis limit switch port
8
1
LASER IN
2
X-axis motor port
USB DRIVE
17
16
RESET
15
SCREEN
14
ALARM
9
IN PUT DC-24V
12
COMPUTER INTERFACE
10
OUT PUT DC-12V
11
13
AUTO FOCUS
EMERGENCY
14
1
LASER IN： Laser cable input port
2
X-AXIS MOTOR PORT: connect with X-motor branch of
motherboard cable

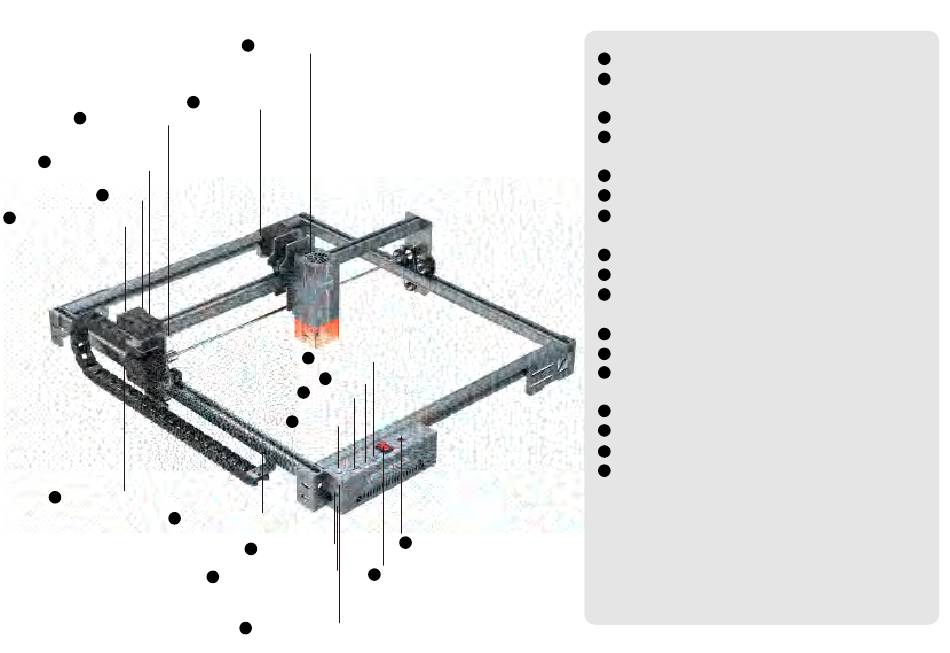

3
X-AXIS LIMIT SWITCH PORT
connect with 2P line
：
4
EXPAND INTERFACE： Expansion interfaces, accessories(chucks,
rollers, conveyors)output ports
5
LASER OUT: input to laser through cable
6
MAINBOARD INTERFACE： input through motherboard cable
7
Y-AXIS MOTOR PORT: connect with Y-motor branch of
motherboard cable
8
Y-AXIS LIMIT SWITCH PORT
connect with 2P line
：
IN PUT DC-24V： Power supply for the machine
9
COMPUTER INTERFACE：PC software control, such as:
10
LightBurn, LaserGRBL, AtomStack, Studio
OUT PUT DC-12V： Power supply for the air pump
11
EMERGENCY： Machine power switch
12
AUTO FOCUS：press it to focus laser automatically if the auto
13
height adjuster applied
14
ALARM： Tilt and flame triggered alarm
15
SCREEN:connect with display
RESET： Restart the machine
16
USB DRIVE： Insert a USB flash drive for firmware flashing and
17
program testino
