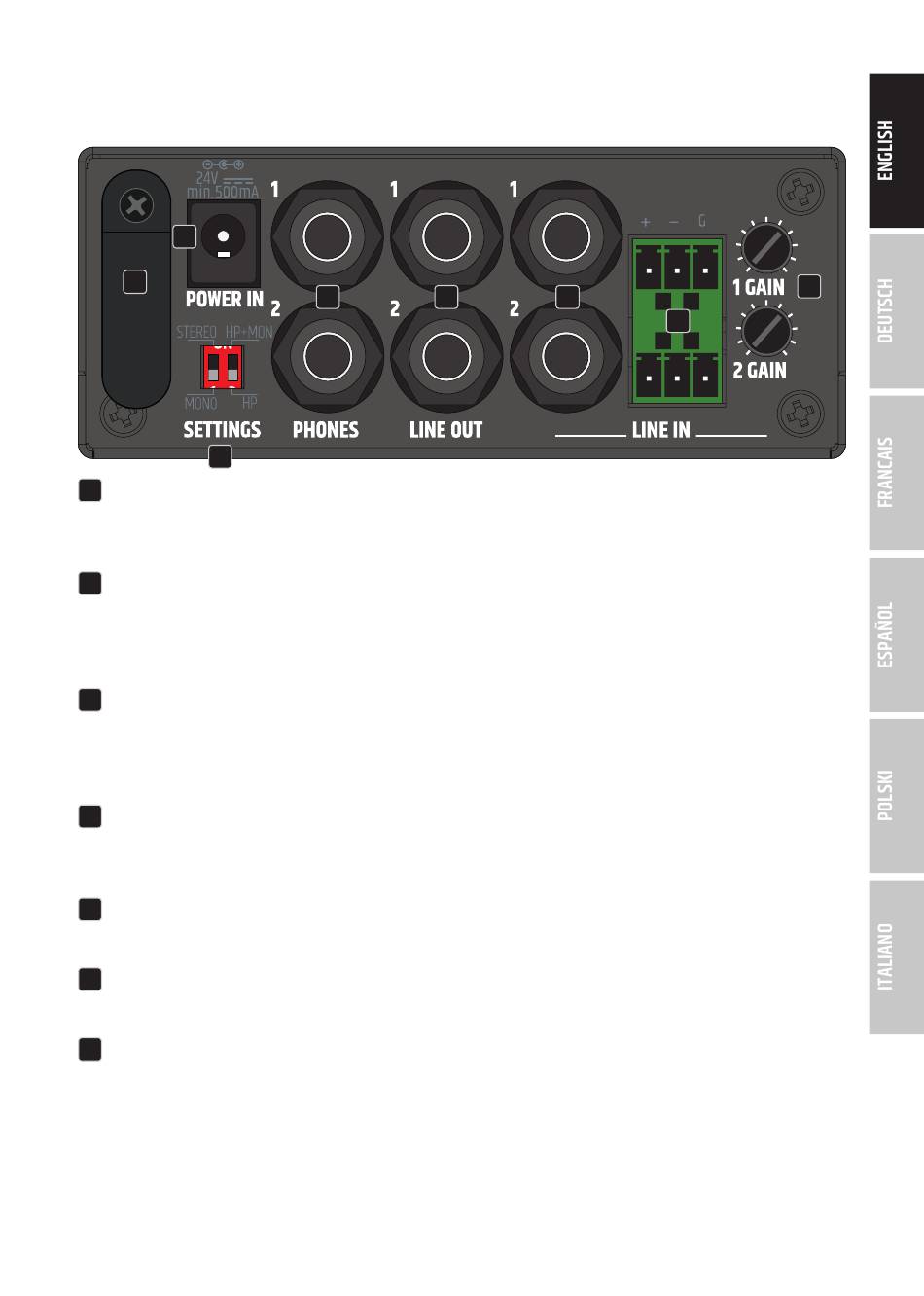

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS
1
2
8
POWER IN
1
Low-voltage socket for supplying power to the device. To avoid damage to the device, please use only
the original power supply (power supply unit included).
STRAIN RELIEF
2
Use the strain relief for the flexible cable of the power supply unit to protect the extra-low voltage
socket, the extra-low voltage plug and the cable of the power supply unit from damage and to prevent
the plug from being pulled out unintentionally.
LINE IN 1 + 2
3
Analogue audio inputs with balanced terminal block connections. The +, - and G poles are for the
balanced input signal (suitable for unbalanced cabling). Terminal blocks are included in the packaging
content. Only use the inputs with the terminal block connections and the jack sockets alternatively.
LINE IN 1 + 2
4
Analogue audio inputs with balanced 6.3 mm jack sockets. Only use the inputs with the terminal block
connections and the jack sockets alternatively.
GAIN 1 + 2
5
Potentiometer for the input sensitivity of the line inputs LINE IN 1 and 2.
LINE OUT 1 + 2
6
Analogue audio outputs with balanced 6.3 mm jack sockets.
HEADPHONES 1 + 2
7
Headphone outputs with 6.3 mm stereo jack sockets. The 6.3 mm sockets on the rear are wired in
parallel with the 3.5 mm sockets on the front and can be used together if necessary. Make sure that
the total impedance of the headphones used in parallel does not fall below 16 ohms.
7
6
4
3
5
9
