SETTINGS
8
Switch 1 STEREO / MONO
STEREO: A stereo signal present at LINE IN is routed in stereo to the headphone outputs on the rear and
front panel and at the line output LINE OUT 1 / 2.
MONO: LINE IN 1 is routed to headphone output 1 on the rear and front panel, and to LINE OUT 1. LINE IN 2
is routed to headphone output 2 on the rear and front panel, and to LINE OUT 2.
Switch 2 HP+MON / HP
HP+MON: A signal applied to LINE IN is routed to the headphone outputs on the rear and front panel
and to LINE OUT (e.g. for driving active studio monitors). The volume of PHONES 1 and 2 is adjusted with
VOLUME 1 on the front panel, the volume of LINE OUT 1 / 2 with VOLUME 2.
HP: A signal applied to LINE IN is routed to the headphone outputs on the rear and front and to LINE OUT
1 / 2. The volume of PHONES 1 is adjusted with VOLUME 1 on the front panel, the volume of PHONES 2 with
VOLUME 2. The Line output level is not affected by any volume control.
10
ON / OFF SWITCH AND POWER SYMBOL
9
Press the push button to switch the device on and again to switch it off. As soon as the HPA2 is correctly
connected to the power supply and switched on, the power symbol lights up white.

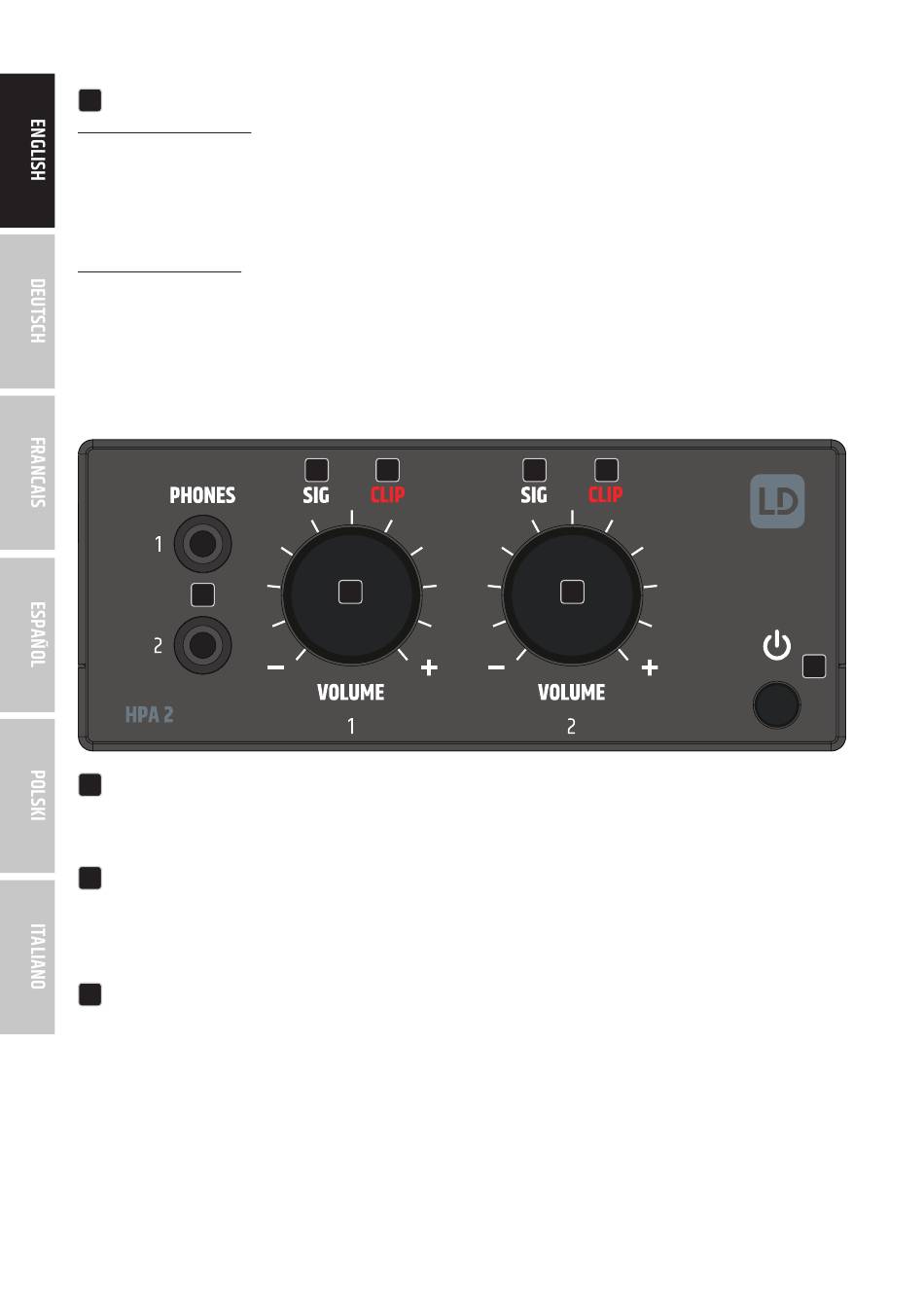

HEADPHONES 1 + 2
10
Headphone outputs with 3.5 mm stereo jack sockets. The 6.3 mm sockets on the rear are wired in
parallel with the 3.5 mm sockets on the front and can be used together if necessary. Make sure that
the total impedance of the headphones used in parallel does not fall below 16 ohms.
VOLUME 1 + 2
11
Depending on the setting of the Settings switch on the back, the level controls have different functions.
SETTINGS - HP: One level control each for headphone outputs 1 and 2.
SETTINGS - HP+MON: VOLUME 1 controls the volume of the headphone outputs PHONES 1 and 2. VOLUME 2
controls the volume of the LINE OUT output.
Turning to the right increases the volume, turning to the left decreases it.
To avoid hearing damage, set the volume to minimum before using headphones or in-earphones and
loudspeakers. Afterwards, increase the volume slowly.
Caution, high volume can damage hearing permanently.
10
12
13
11
12
13
11
9
