SOLARWATT Panel vision XS 5.0 style Montageanleitung Seite 22

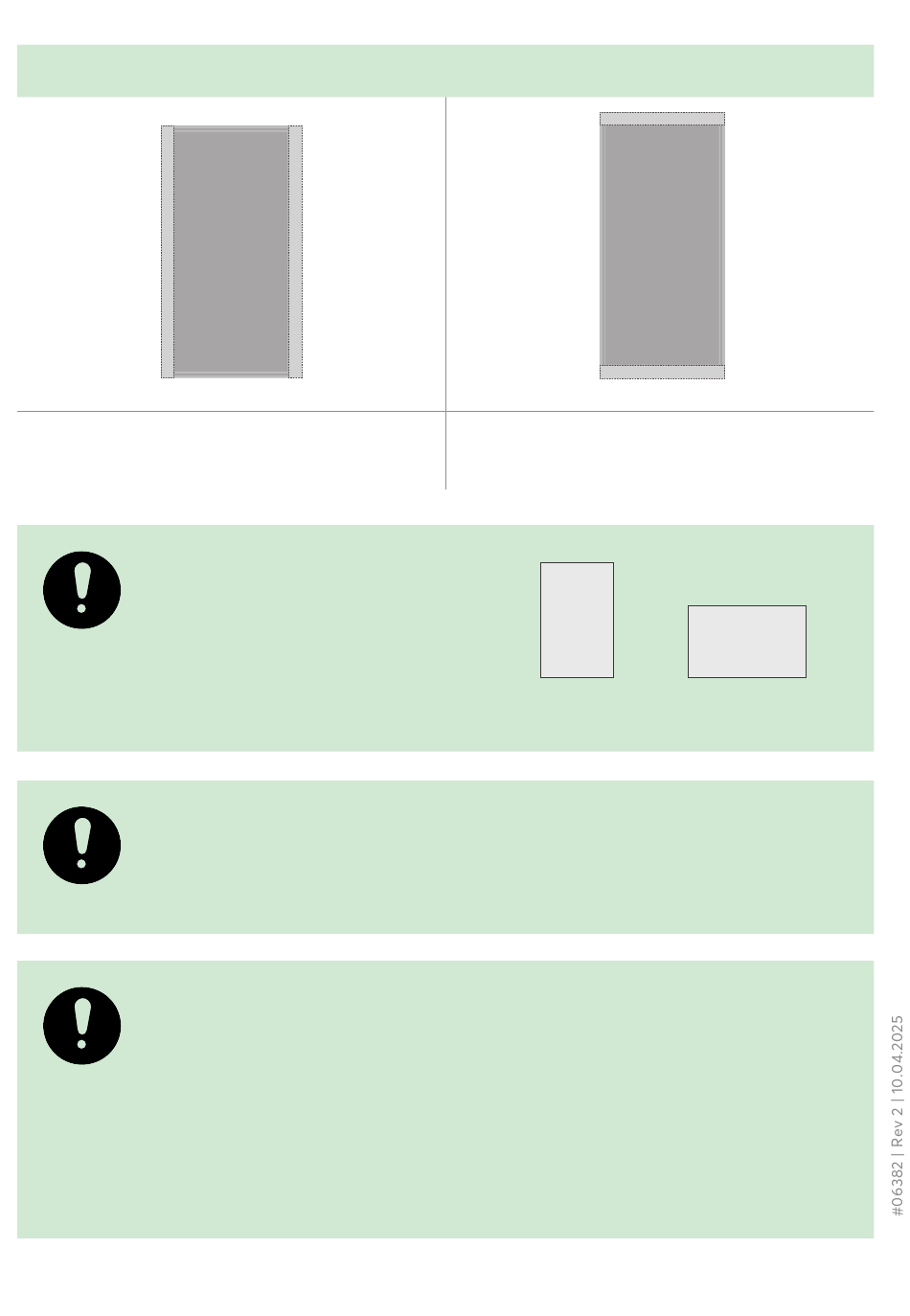

Insertion system (long side)
Max. permitted pressure load (test load) and sucction load
(test load) in Pa.
+ 5,400 (+8,100) -2,600 (-4,000)
NOTE
The solar modules can
be installed both portrait
and landscape.
NOTE
It is not permitted to use SOLARWATT Panel vision solar modules as overhead
glazing.
NOTE
Under mechanical load, no contact between solar glass and hard materials (eg.
metal, glass) may occur. To prevent damage to the glass, an additional rubber
coating must be provided on the rails if high pressure loads are expected (Solar-
watt recommendation: EPDM rubber 'Krevolan' from Kremer).
The drainage holes in the module frame must not be covered, as it could cause
frost damage on the module frame. Do not place any plug connectors in the
frame.
22
Insertion system (short side)
Max. permitted pressure load (test load) and sucction load
(test load) in Pa.
+ 2,100 (+3,200) -2,100 (-3,200)
portrait installation
Errors and changes excepted. | © 2025 Solarwatt GmbH
landscape installation
