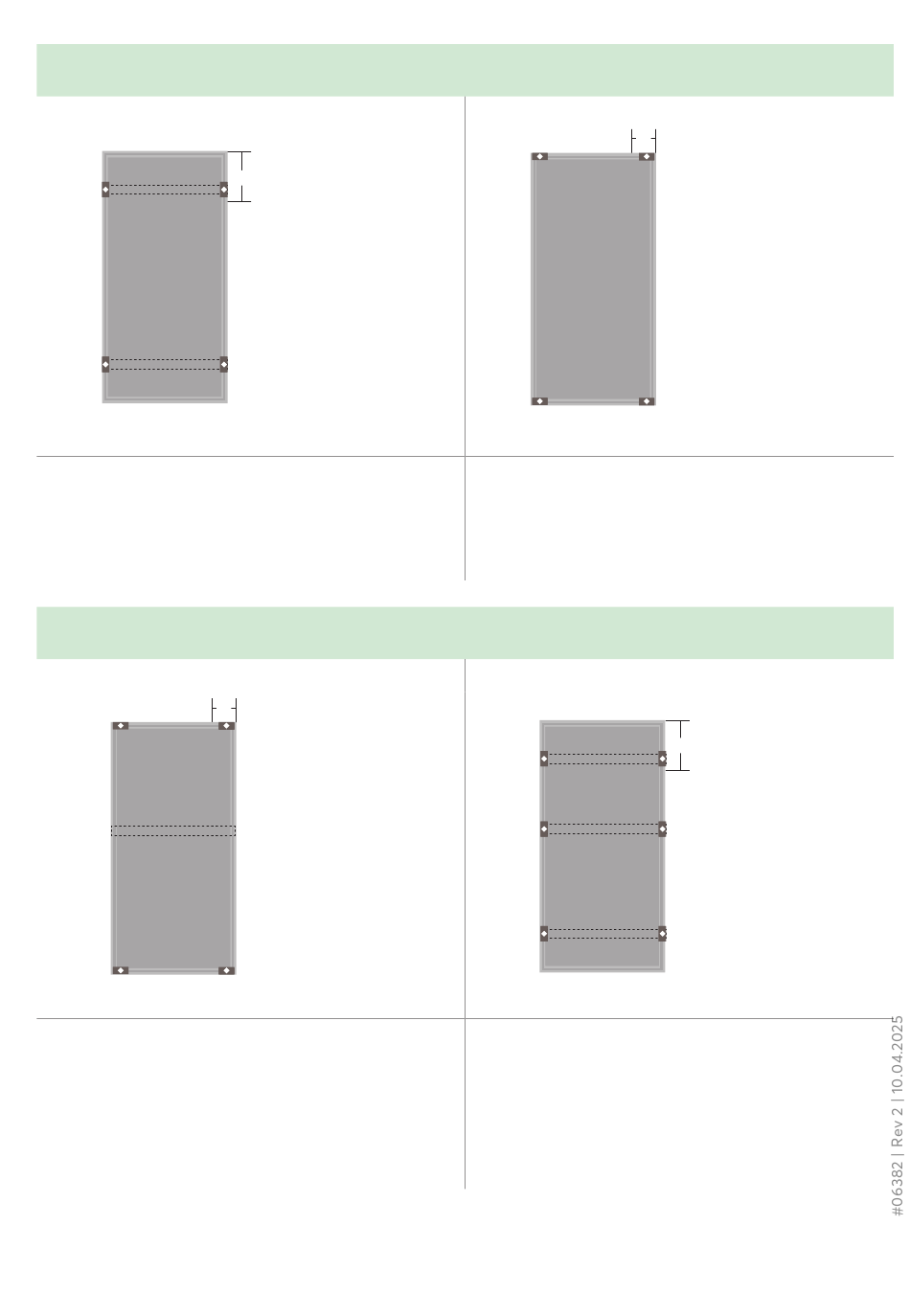

4 Module clamps (long side)
2 rails (parallel to the short side)
Min. clamp surface area: 8 x 50 mm
Max. permitted pressure load (test load) and sucction load
(test load) in Pa as a function of the distance a in mm.
a = 0 - 160
a = 160 - 260
a = 260 - 350
a = 350 - 460
4 Module clamps (short side)
centre support (parallel to the short side)
Min. clamp surface area: 8 x 50 mm
Max. permitted pressure load (test load) and sucction load
(test load) in Pa as a function of the distance a in mm.
a = 0 - 60
Errors and changes excepted. | © 2025 Solarwatt GmbH
a
--
+ 2,400 (+3,600) -1,600 (-2,400)
+ 5,400 (+8,100) -2,600 (-4,000)
+ 2,400 (+3,600) -1,600 (-2,400)
a
Install centre support
with 50-80 mm offset to
the module centre
+ 2,400 (+3,600) -1,600 (-2,400)
4 Module clamps (short side)
Min. clamp surface area: 8 x 50 mm
a
Max. permitted pressure load (test load) and sucction load
(test load) in Pa as a function of the distance a in mm.
a = 0 - 60
+ 2,400 (+3,600) -1,600 (-2,400)
6 Module clamps (long side)
3 rails (parallel to the short side)
Min. clamp surface area: 8 x 50 mm
Max. permitted pressure load (test load) and sucction load
(test load) in Pa as a function of the distance a in mm.
a = 0 - 200
--
a = 200 - 300
+ 6,600 (+10,000) -3,600 (-5,400)
In this mounting variant, due to the high load, the module
can touch the mounting rails. To avoid damage to the glass, a
rubber coating must be provided on the rails.
a
Install the middle rail
with a 50-80 mm
offset to the centre of the
module
21
