aldes T.Flow Hygro+ Montage-Kurzanleitung Seite 6

EN
6

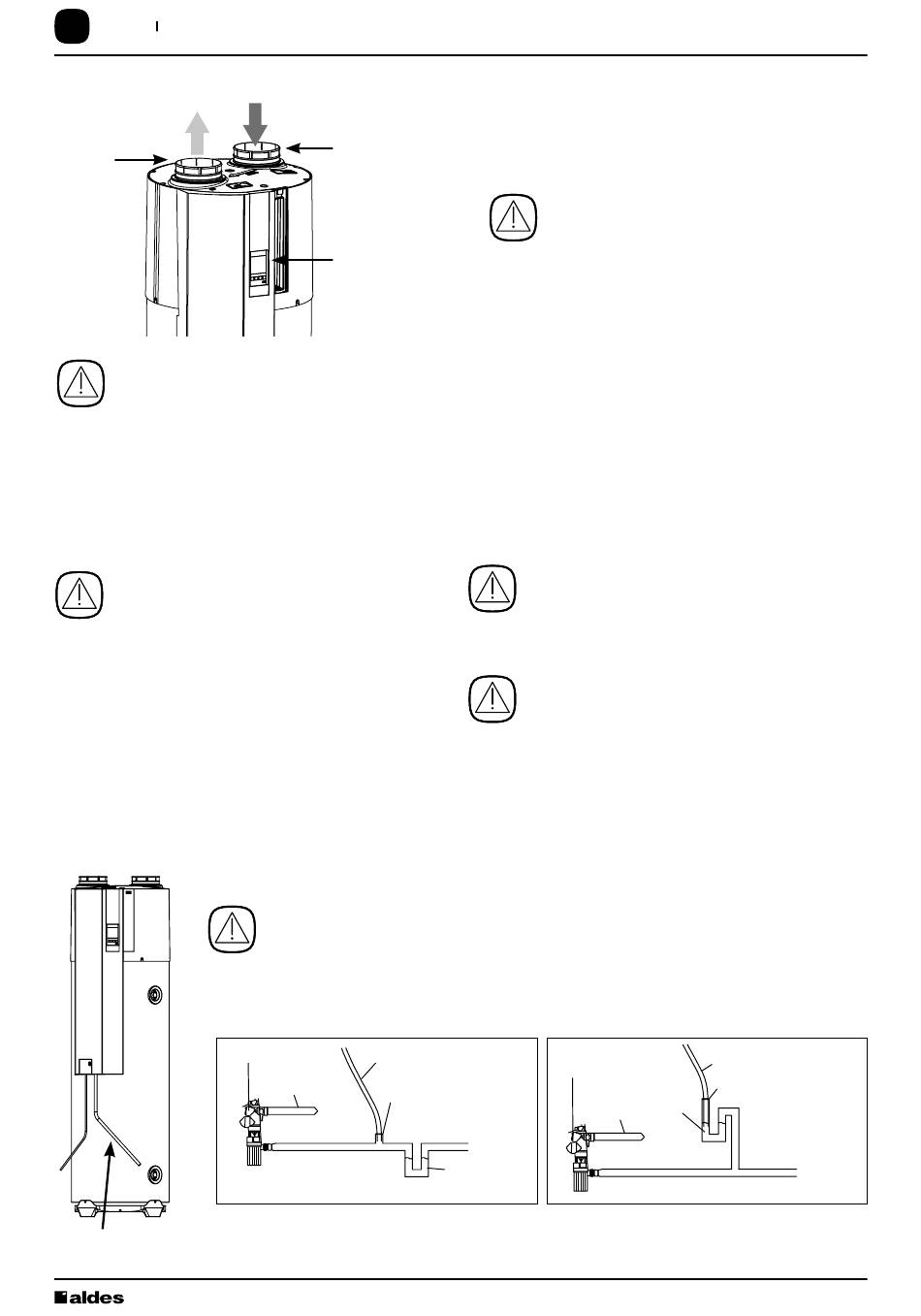

3. AERAULIC CONNECTIONS
Outlet
(cold air)
Ducts must be securely connected to the water
heater, using the clamp collars supplied as
accessories.
However, ensure that it is possible to disconnect the
air ducts for future purposes.
4. HYDRAULIC CONNECTION
Dielectric connectors
The cold water inlet and hot water outlet must
be fitted with dielectric connectors (supplied with
the heater unit) even if the tank connections use
cross-linked polyethylene pipe.
If these connectors are not fitted, our warranty
will be null and void.
Never apply a torque greater than 25 N.m.
Condensate discharge
Safety switch Condensate pipe
Mains water
inlet
Membrane connection
Diagram 1
Condensate tube: must be connected to the waste water siphon.
Inlet
(extracted hot air)
Front side
with control
panel
Install a drain siphon and fill it with water (a membrane siphon can also be used, which
does not need to be filled with water). Check the pipe routing once connected to avoid
any pinching. If these instructions are not respected, our warranty will be null
and void.
Safety switch Condensate pipe
Mains water
inlet
Membrane connection
Wastewater outlet
(drains)
Water trap
Diagram 1
Outlet ducting
The heat pump captures the heat in the extracted
air so the exhaust air discharged by the system
is cold. To avoid any risk of condensation inside
or outside the duct, the ducting must be insulated to a
minimum of 25 mm.
In all events, the air outlet must be sufficiently
dimensioned to avoid extensive pressure losses. An air
outlet that generates excessive pressure losses may cause
the system to malfunction. It is preferable to use ALDES
roof-mounted or wall-mounted outlets.
Hot water outlet
We recommend the installation of one or more
temperature limiters (not supplied).
Cold water inlet
The heater must be equipped with a new safety
switch (not supplied) configured to 7 bar and
compliant with standard EN 1487.
The system must include a pressure reducer (not
supplied) if the mains water supply pressure is higher than
0.45 MPa. The pressure reducer must be installed on the
mains supply inlet.
Safety switch
Mains water
inlet
Wastewater outlet
(drains)
Water trap
T.Flow
Condensate pipe
Safety switch
Membrane connection
Mains water
Water trap
Water trap
inlet
Wastewater outlet
(drains)
Diagram 2
Hygro Plus / T.Flow
® ®
Condensat
Membran
Diagram 2
Nano
