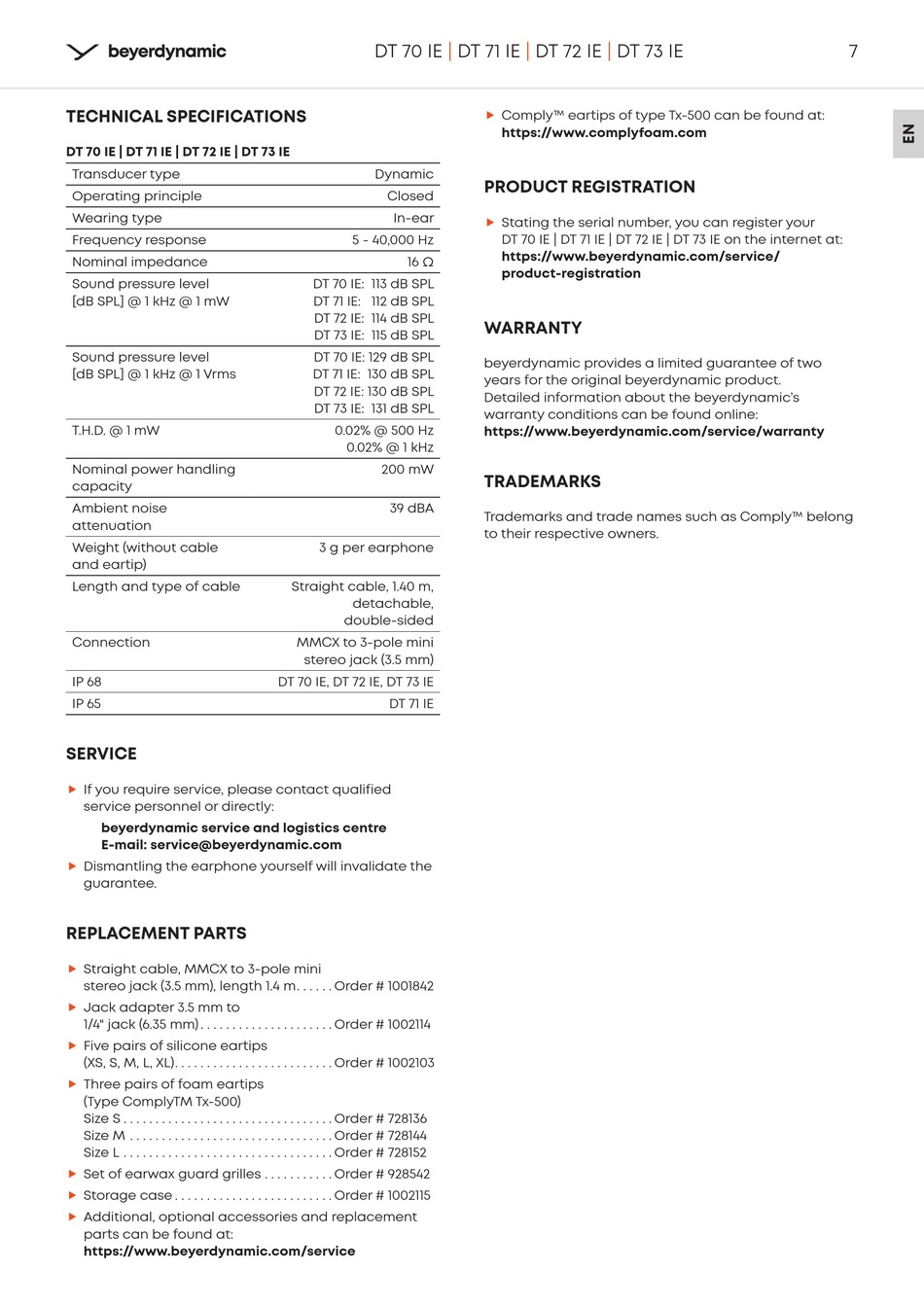

TECHNICAL SPECIFICATIONS
DT 70 IE | DT 71 IE | DT 72 IE | DT 73 IE
Transducer type
Operating principle
Wearing type
Frequency response
Nominal impedance
Sound pressure level
[dB SPL] @ 1 kHz @ 1 mW
Sound pressure level
[dB SPL] @ 1 kHz @ 1 Vrms
T.H.D. @ 1 mW
Nominal power handling
capacity
Ambient noise
attenuation
Weight (without cable
and eartip)
Length and type of cable
Connection
IP 68
IP 65
SERVICE
If you require service, please contact qualified
�
service personnel or directly:
beyerdynamic service and logistics centre
E-mail: service@beyerdynamic .com
Dismantling the earphone yourself will invalidate the
�
guarantee.
REPLACEMENT PARTS
� Straight cable, MMCX to 3-pole mini
stereo jack (3.5 mm), length 1.4 m . . . . . . Order # 1001842
Jack adapter 3.5 mm to
�
1/4" jack (6.35 mm) . . . . . . . . . . . . . . . . . . . . . Order # 1002114
Five pairs of silicone eartips
�
(XS, S, M, L, XL) . . . . . . . . . . . . . . . . . . . . . . . . . Order # 1002103
Three pairs of foam eartips
�
(Type ComplyTM Tx-500)
Size S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 728136
Size M . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 728144
Size L . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 728152
� Set of earwax guard grilles . . . . . . . . . . . Order # 928542
Storage case . . . . . . . . . . . . . . . . . . . . . . . . . Order # 1002115
�
Additional, optional accessories and replacement
�
parts can be found at:
https://www .beyerdynamic .com/service
DT 70 IE |
Dynamic
Closed
In-ear
5 - 40,000 Hz
16 Ω
DT 70 IE: 113 dB SPL
DT 71 IE: 112 dB SPL
DT 72 IE: 114 dB SPL
DT 73 IE: 115 dB SPL
DT 70 IE: 129 dB SPL
DT 71 IE: 130 dB SPL
DT 72 IE: 130 dB SPL
DT 73 IE: 131 dB SPL
0.02% @ 500 Hz
0.02% @ 1 kHz
200 mW
39 dBA
3 g per earphone
Straight cable, 1.40 m,
detachable,
double-sided
MMCX to 3-pole mini
stereo jack (3.5 mm)
DT 70 IE, DT 72 IE, DT 73 IE
DT 71 IE
DT 71 IE | DT 72 IE | DT 73 IE
� Comply™ eartips of type Tx-500 can be found at:
https://www .complyfoam .com
PRODUCT REGISTRATION
� Stating the serial number, you can register your
DT 70 IE | DT 71 IE | DT 72 IE | DT 73 IE on the internet at:
https://www .beyerdynamic .com/service/
product-registration
WARRANTY
beyerdynamic provides a limited guarantee of two
years for the original beyerdynamic product.
Detailed information about the beyerdynamic's
warranty conditions can be found online:
https://www .beyerdynamic .com/service/warranty
TRADEMARKS
Trademarks and trade names such as Comply™ belong
to their respective owners.
