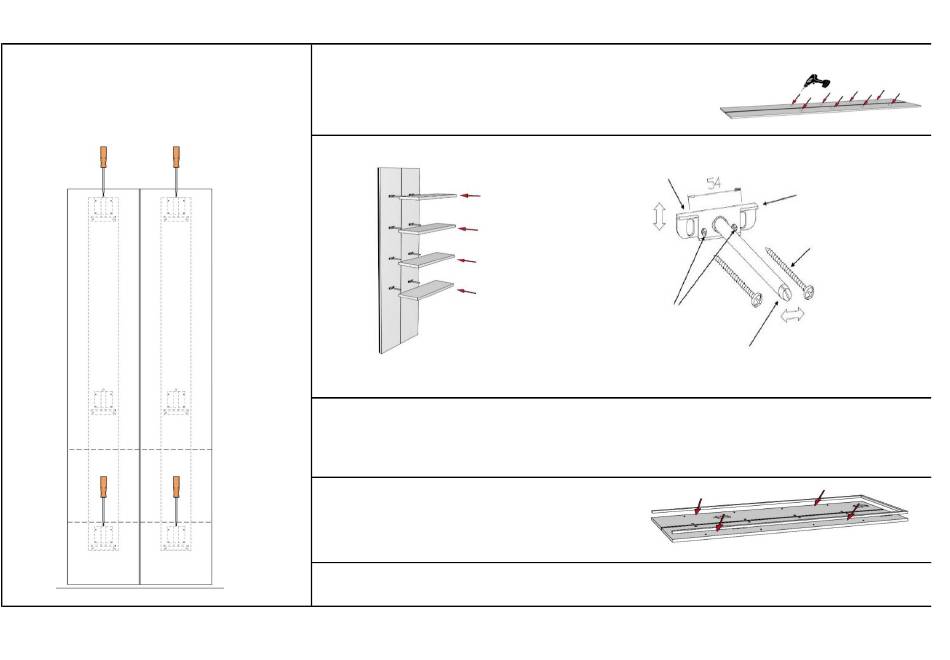

3. Adjust panel
Place wall panel on suspension rails, adjust with
screwdriver, remove again if necessary for wall boards
and Ambiente lighting.
Alfons Venjakob GmbH Co. KG
Friedrichsdorfer Str. 220
33335 Gütersloh, Germany
4. Assembly - wall board (additional item)
Panels are pre-drilled on the back in the grid dimension for wall boards.
If necessary, determine new positions for wall boards and
drill through Ø5mm.
5. Screw the shelf support (Part no.50417) to the panel with 2 x Euro screw Ø6.3x19mm (Part no.51217)
Attention: The closed side of the shelf support must face upwards. (Picture bottom right)
Wall board lighting ( Additional item) → Guide the lighting cable out of the panel to the rear
(15mm panel bore, pre-drilled at the rear).
6. Carefully slide the wall board onto the locating pins.
A horizontal correction of the wall board is to be made by moving the base plates as well as with the lower height-
adjusting screws (inclination) on the shelf fitting.
A lateral correction is made by moving the support pin.
In addition, the wall board can be fixed from behind with a 4.5x80mm chipboard screw (Part no.00227).
7. Mounting ambient lighting (additional item):
Ambient lighting attachment on the back of the panel,
recessed approx. 2mm all round,
with the enclosed screws.
8. Place the wall panel on the suspension rails.
E-Mail: venjako@venjakob-moebel.de
Tel.: +49 52 09 5 92-0
Base plate
Height-
adjusting screws
Support pin
55084-12
Part-No. 50417
Part-No. 51217
