Assembly instruction: Panel "NEXT LEVEL 3000"
Panel widths 600 / 900 / 1200 mm
The fixture materials provided with this product (dowels and screws) are only suitable for fixing parts to concrete and/or solid masonry. Please observe the maximum load that the wall ‐mounted elements can carry. If the
condition of the wall is not suitable (e.g. if it is a lightweight partition wall), then another type of fixture suitable for the load that is to be carried should be used. Check the electrical input of any connection or device
technology. Free‐hanging light fixtures require cable duct solutions that are either on or under plaster.
These assembly instructions are valid for the following order no. (maximum load capacity in brackets):
Panel: 1275, 1276, 1277
Shelf: 1265 (3kg), 1266 (5kg), 1267 (7kg), 1268 (7kg)

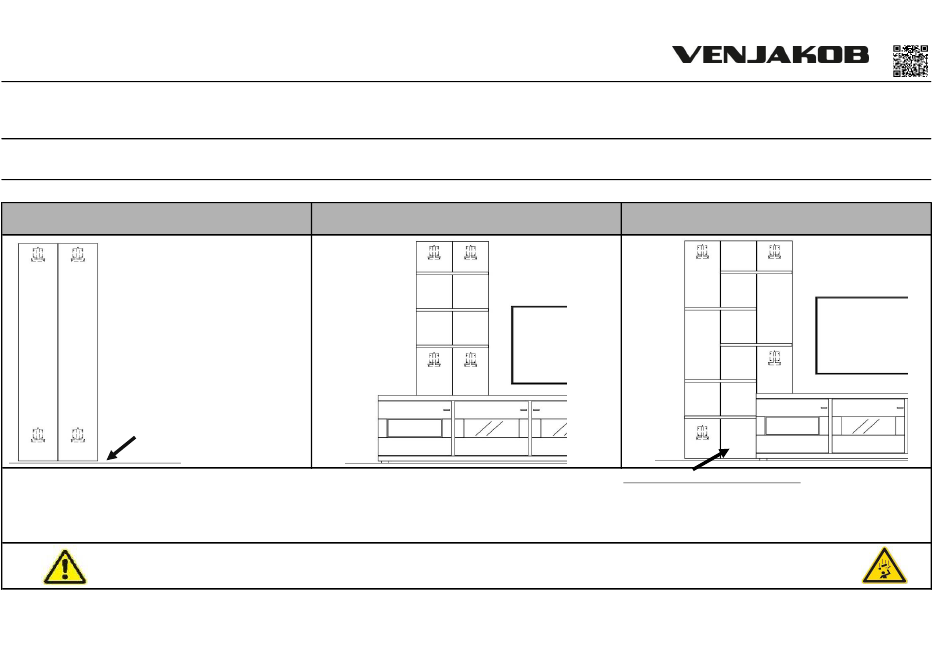

1. Positioning: Suspension rails (Figures show exemplary items)
Fig. 1: Panel – standard
Floor
Floor
Warning: For reasons of load-bearing capacity, align and load all fittings evenly. Observe the maximum load capacity of the suspension units!
If hanging units are not fitted correctly in accordance with the assembly instructions, there is a risk of the units falling down unintentionally!
Alfons Venjakob GmbH Co. KG
Friedrichsdorfer Str. 220
33335 Gütersloh, Germany
Fig. 2: Panel - cut
E-Mail: venjako@venjakob-moebel.de
Tel.: +49 52 09 5 92-0
Fig. 3: Panel - cut out
°
Panel mounting (height approx. 16cm)
Transfer drilling dimensions to masonry / hole Ø8mm,
insert 8x51mm dowel (Part no.50802), screw down
with 4.5x80mm countersunk screw (Part no.00227).
Apply cover cap.
55084-12
created: 26.03.2025
4 / 6
