4. Connections

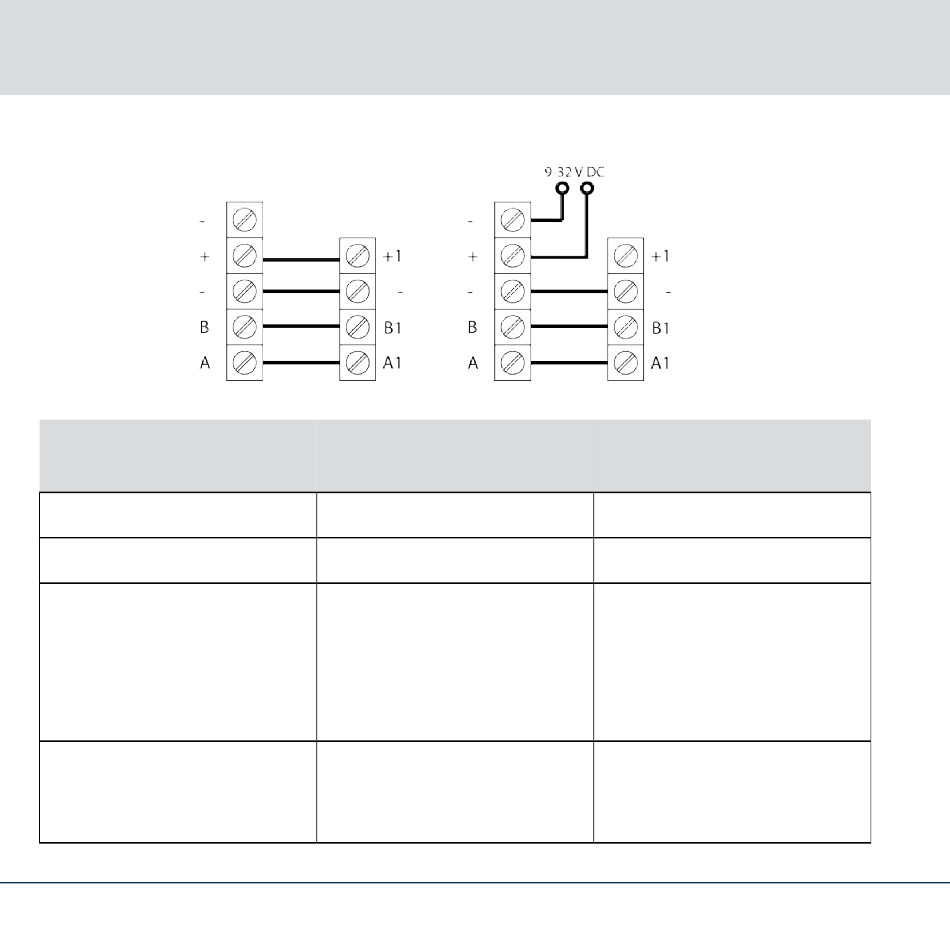

Reader connection
A
B
-
+
34 / 152
Reader Controller
SREL3 controller connec-
tion
A1/A2/A3
B1/B2/B3
-
+
SmartRelais-3-Leser
Reader Controller
Alternative circuit
Signal
RS-485: Data line A
RS-485: Data line B
GND. Used to establish the
common ground reference
potential for the data lines.
Any ground connection to
the SREL3 controller.
V . Connection for power
IN
supply (external or via con-
troller).
