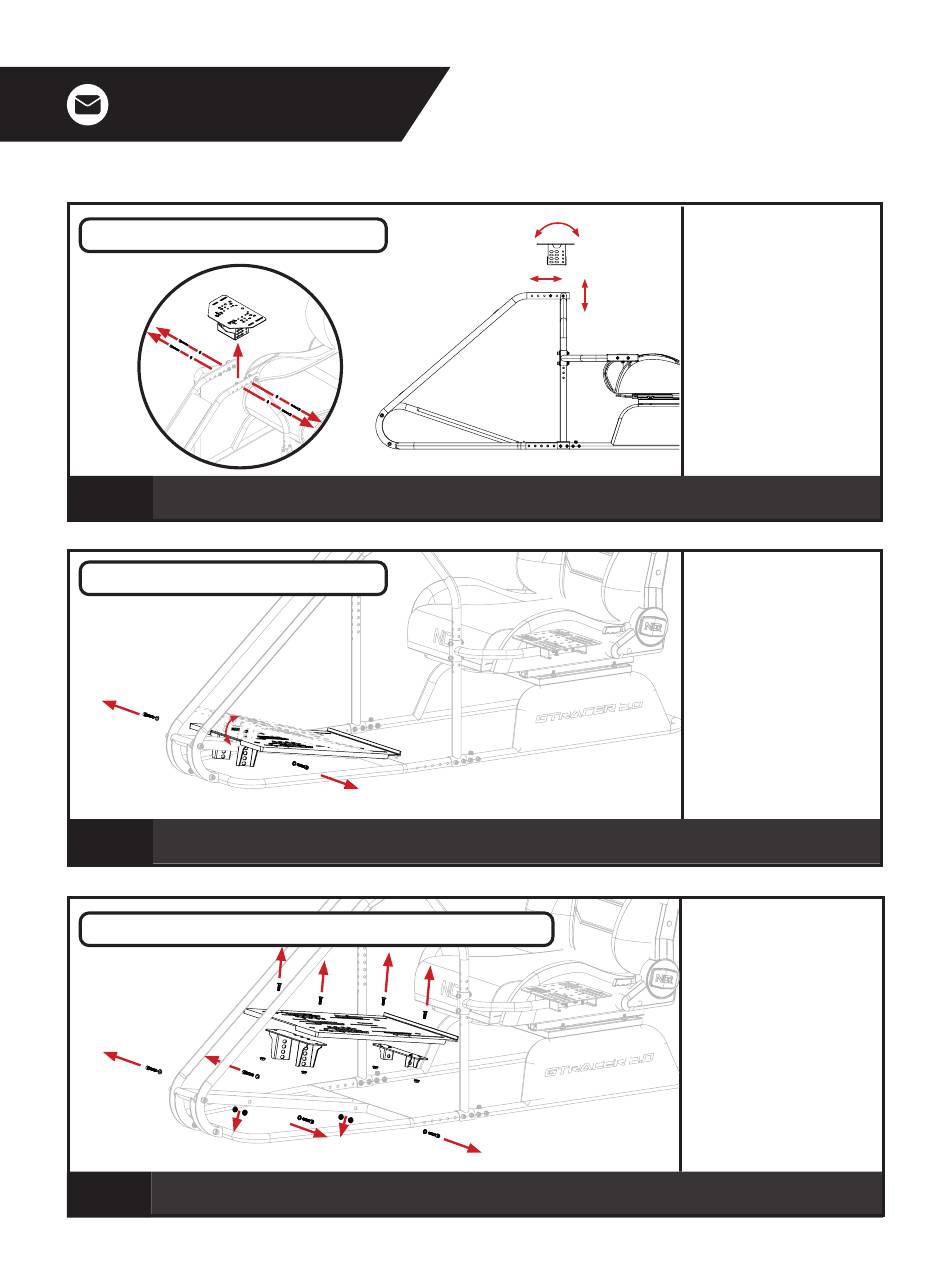

WHEELPLATE ADJUSTMENT
A)
22 A) Remove the Wheel Plate by uninstalling 4 x M8 Bolts, Washers and Flange Nuts.
B) Adjust Wheel Plate to desired angle and position. Replace the Bolts, Washers and Nuts.
PEDAL PLATE ADJUSTMENT
23 Adjust the Pedal Plate angle by removing the above bolts and tilting the plate to adjust angle. Replace
bolts to secure in place.
ALTERNATIVE: FLAT PEDAL PLATE ADJUSTMENT
24
Uninstall the above bolts to remove the Pedal Plate, Angle Bracket, Hinge Bracket.
B)
16
PARTS:
• • NIL
PARTS:
• • NIL
PARTS:
• • NIL
