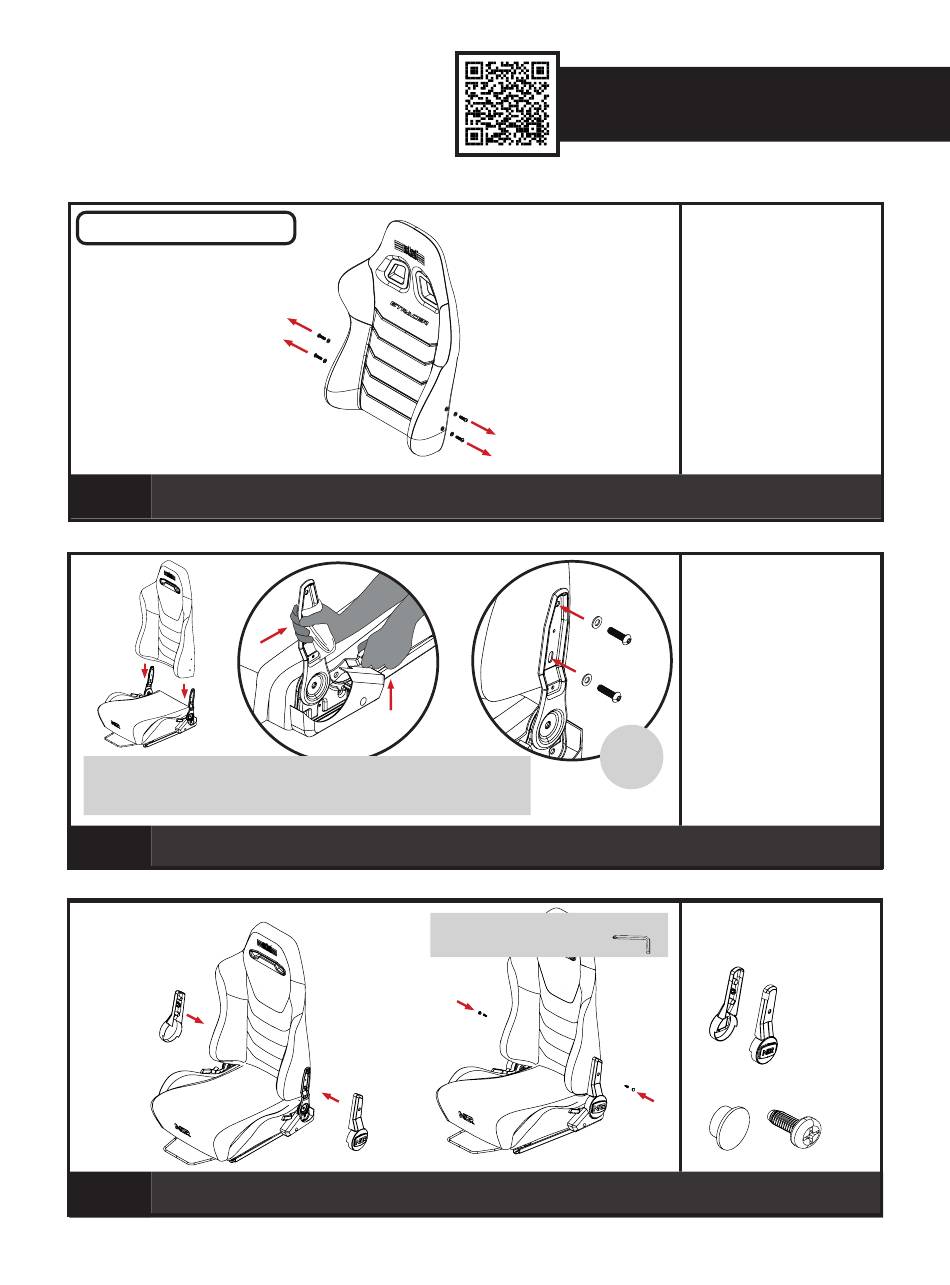

SEAT INSTALLATION
13
Uninstall the M8 Dome Shaped Bolts and Washers pre-installed on the Seat Back.
A)
WARNING:
Make sure both Seat Recliner Arms are set to the same angle before
assembling the seat. If an adjustment is required use a cloth to protect your
hand while adjusting. Remove warning labels once adjustment has been made.
14
A) Align the threaded inserts on the Seat Backrest with the mounting holes on the Seat Recliners.
B) Bolt through and secure with the uninstalled M8 30mm Dome Head Bolts and M8 Washers.
A)
15 A) Align the mounting hole on the Seat Recliner Covers with the Seat Recliners.
B) Bolt through and secure with the M5 Bolts and press fit the Bolt Covers to cover the hole.
B)
B)
NOTE:
Use Phillips Head on the Allen Key
to tighten the M5 12mm Screw.
13
Video Instruction: bit.ly/nlrbuild
PARTS:
• • 1 x Seat Backrest
PARTS:
• • 1 x Seat Base
Repeat
on Other
Side
PARTS:
• • 1 x Right Seat Recliner Cover
1 x Left Seat Recliner Cover
• • 2 x M5 12mm Bolts
• • 2 x Recliner End Caps
