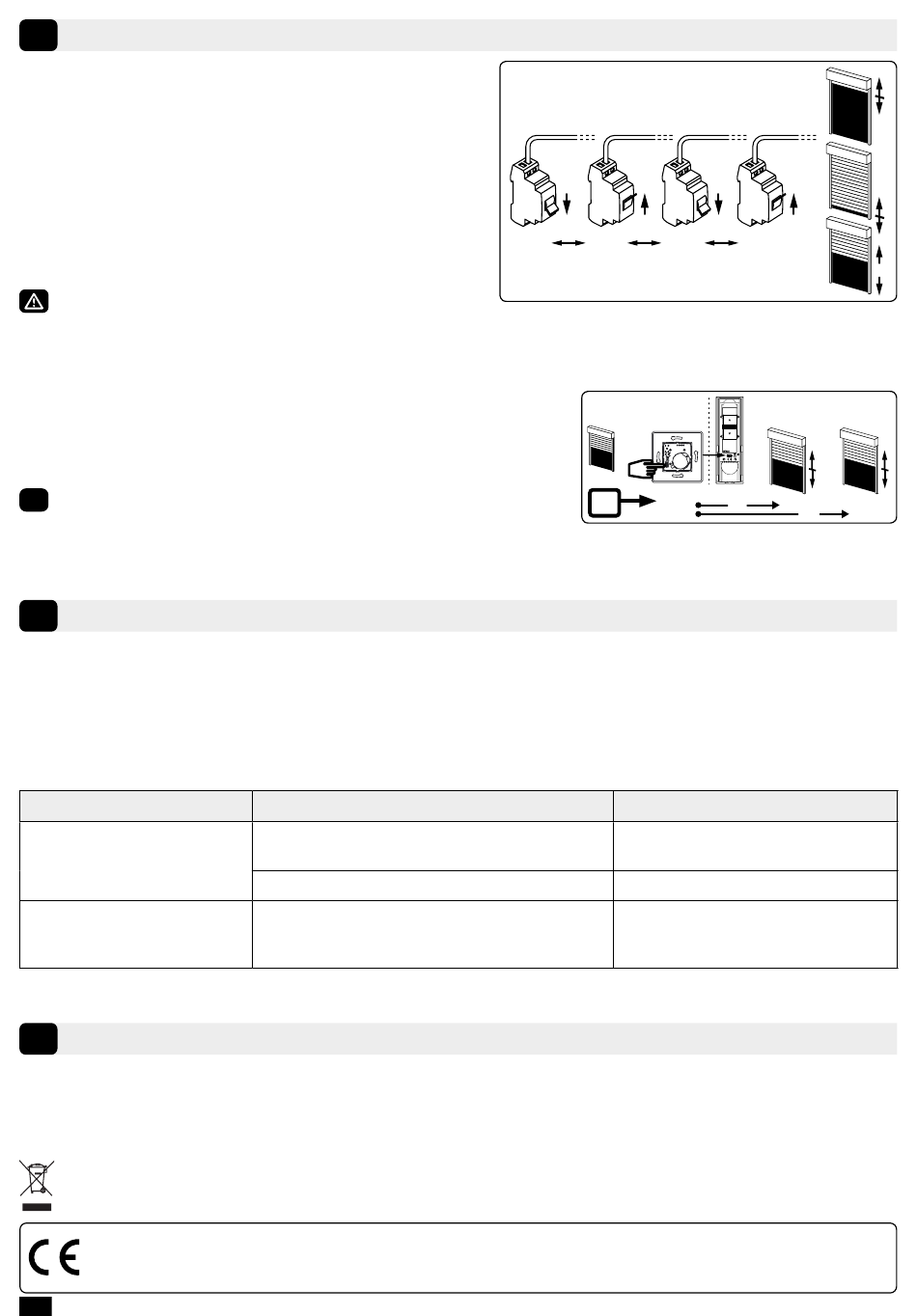

simu T5 AUTOBHZ Originalanleitung Seite 8

Cancelling programming & settings
8
8.1- Switch off the power supply to the motor for 2
seconds.
8.2- Switch the power to the motor back on for 7 seconds.
8.3- Switch off the power supply to the motor for 2
seconds.
8.4- Switch the power to the motor back on. If the motor is
on the end limit position (up or down), the motor will run
briefly in one direction and then in the other, otherwise,
the motor runs for 5 seconds in random direction.
The motor is now in the "cancelling mode".
If you switch off the power to several motors, they
will all be in cancelling mode. That is why, you must "eject" out of this mode all the receivers that are
not to be deprogrammed by sending a command from their individual control transmitter (UP or Down).
8.5- Then, confirm the cancelling of the concerned motor from the individual control:
- Press the "PROG" key of the transmitter more than 7 seconds.
Maintain the pressure until the motor will first run for 0.5 second
in one direction and then in the other, and a few second later, it will
run again in both direction.
i
The motor is now as it was originally configured, and no
transmitter and no settings is saved in its memory and is ready
for a new programming (§4).
9 Operation and maintenance
- This drive is maintenance-free.
- Press the ▲ button on the control point to raise the motorised product.
- Press the ▼ button on the control point to lower the motorised product.
- If the motorised product is moving: briefly press the "Stop" button, the motorised product stops automatically.
- The motorised product is then stopped, press 0.5 s on the "Stop" button. The motorised product moves to the
programmed intermediate position. (To modify or delete an intermediate position, see the section §6).
Tips and recommendations for use:
PROBLEMS
The motorised product does
not operate.
The direction of rotation of the
motorisation does not self-
adjust automatically.
If the motorised product still does not work, contact a drive and home automation professional.
10
Technical data
- Radio frequency 868-870 MHz, tri-band two-way.
- Frequency bands and Maximum power used:
868.000 MHz - 868.600 MHz ERP <25 mW
868.700 MHz - 869.200 MHz ERP <25 mW
869.700 MHz - 870.000 MHz ERP <25 mW
We care about our environment. Do not dispose of the appliance with usual household waste. Give it to an approved
collection point for recycling.
Simu SAS, F-70103 as manufacturer hereby declares that the drive covered by these instructions when marked for input voltage 230V~50Hz
and used as intended according to these instructions, is in compliance with the essential requirements of the applicable European Directives
and in particular of the Machinery Directive 2006/42/EC, and the Radio Directive 2014/53/EU. The full text of the EU declaration of conformity
is available at www.simu.com. Jean-Pascal REY, Chief Executive Officer, GRAY, 01/2020.
