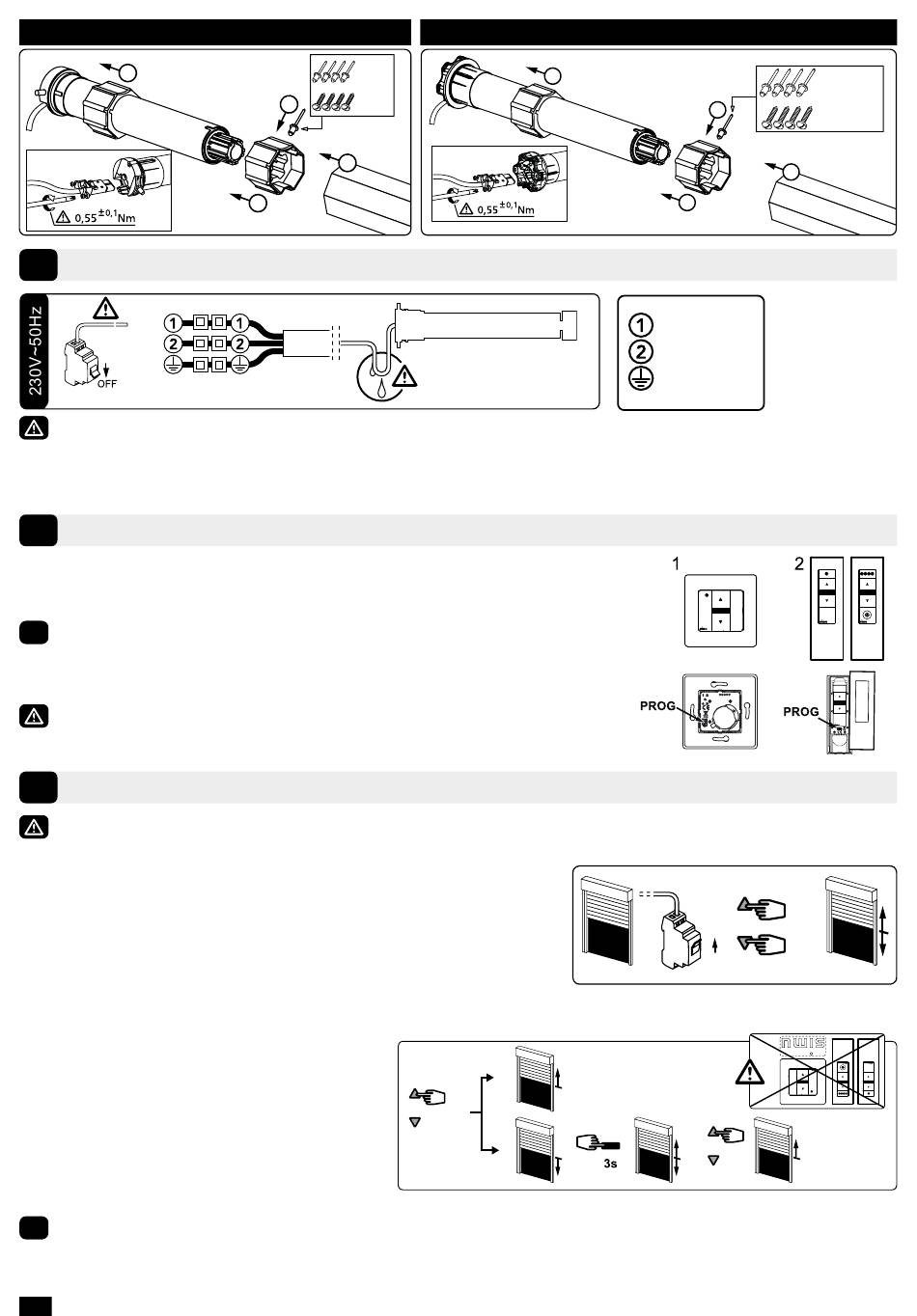

T5 AUTOBHZ / T5 AUTOBHZ WP
1
2
Wiring
N
L
PE
You must have the possibility to switch off individually each motor.
- Attach cables to prevent any contact with moving parts.
- If the motor is used outdoors and if the power supply cable is of the H05-VVF type, then run the cable in a
UV-resistant conduit, e.g. trunking.
3
Compatible transmitters
1 : Wall BHz transmitter
2 : 1/5 channels Mobile BHz transmitter
i
Compatible with io-homecontrol
Location of the PROG key on BHz transmitters:
Do not position the transmitter near metal in order to avoid range
losses.
4
Power up of the operator
If the installation includes several motors, only one motor is to be powered during this programming
procedure. It will eliminate interferences with the other motor during the procedure.
4.1- Learning mode:
- Switch the motor ON.
- Simultaneously press the "UP" and "DOWN" buttons of a BHz
transmitter. The motor will run for 0.5 second in one direction, then
in the other. The transmitter now controls the motor in unstable
mode, move to stage 4.2.
4.2- Checking the rotation direction (optional for rolling shutters more than 0.5 m² (H:0.6m x W:0.8m)):
Press the "UP" key of the transmitter:
a. If the motorized tube runs in the UP
direction, move to next stage 4.3.
b. If the motorized tube runs in the DOWN
direction, reverse the rotation direction
by pressing the "Stop" key for at least
3 seconds. The motor will run for 0.5
second in one direction, then in the other
direction. Move to the stage 4.3.
i
The direction of rotation of the motor can be adjusted automatically after the first 3 complete cycles
(from stop block to stop block and without stopping between each stop block), after programming the first
individual control point (§4.3). In this case, go directly to step 4.3 without doing operation 4.2.
EN
2/4
Ø4,8 x 10
STEEL
4
Ø5 x 10
3
2
transmitters.
®
T5S AUTOBHZ
1
AUTOBHZ
9 transmitters (1 channel) max. for one motor)
a
OK
>>
>>
>>
>>
b
4
3
2
Blue
Brown
Green / yellow
ON
4.3
>>
Ø4,8 x 10
STEEL
Ø5 x 10
>>
OK
4.3
>>
>>
