Notes on working with the machine

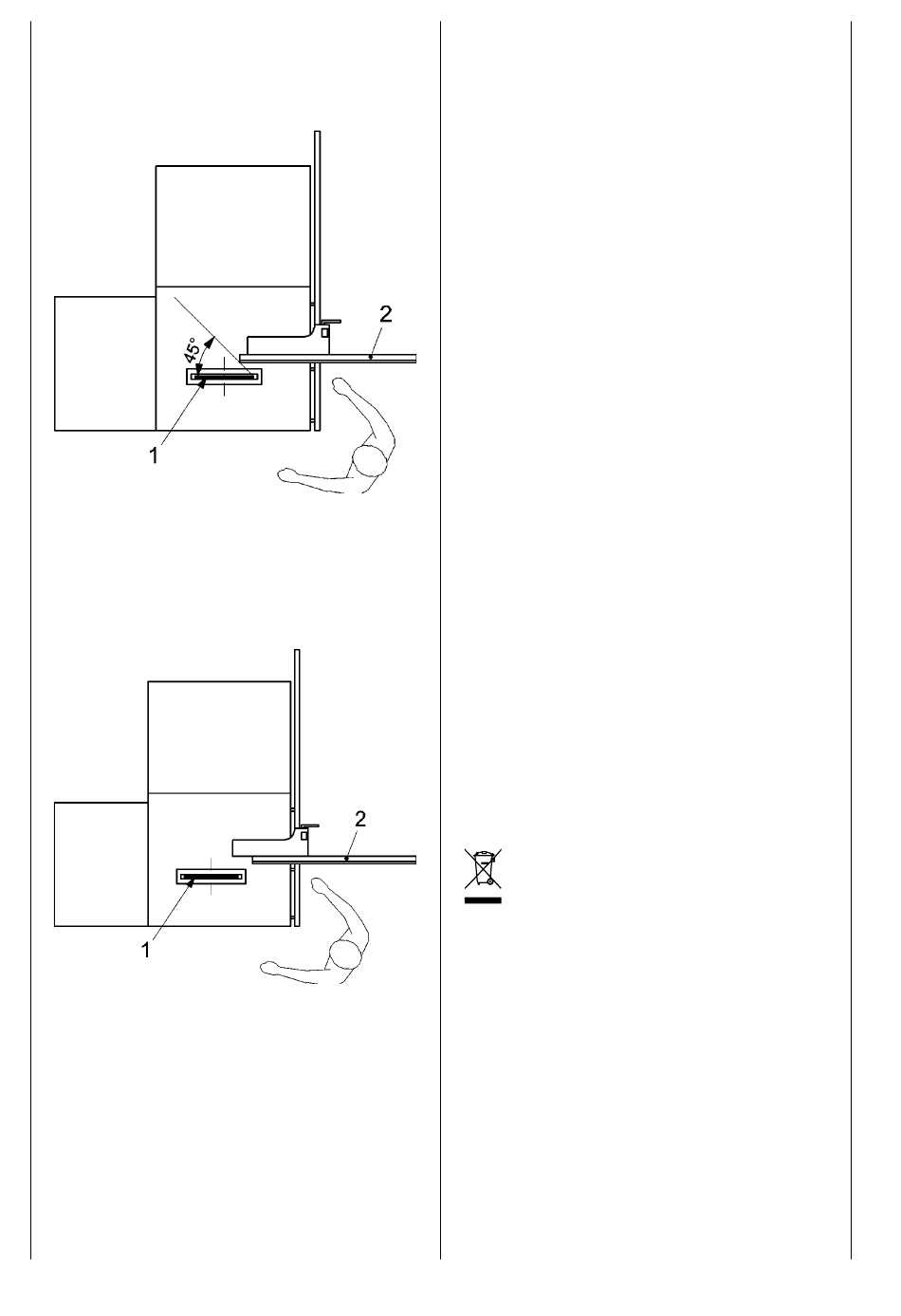

For lengthwise cutting, the tip of the front face of the par-
allel stop must be located near an imaginary line at 45° to
the leading edge of the sawblade. (See image)
Legend:
1
Main sawblade
2
Parallel stop
When cutting with the transverse stop, the tip of the par-
allel stop must be positioned in front of the leading edge
of the sawblade. (See image)
Legend:
1
Main sawblade
2
Parallel stop
Cross-cutting Fig. „T"
Making short workpieces on the parallel stop
• Retract the parallel or auxiliary stop far enough so that
the rear end is in front of the sprocket of the circular
saw blade. This prevents the workpiece from jamming.
• Remove workpieces from the danger zone with a push
stick (not with your hands).
• Attach the deflector strip if the workpieces can be
caught by the rising sprocket of the circular saw blade
and thrown back (make deflector strip yourself)
Cross-cutting Fig. „U"
Cutting narrow workpieces to length at the cross
stop
• Move parallel stop away from the circular saw blade.
• Attach the deflector strip so that if workpieces could be
caught by the rising sprocket of the circular saw blade
and thrown back (make deflector strip yourself).
• After the cut, release the gauge stop from the cross
stop and pull the workpiece away from the circular saw
blade or push the workpiece through up to behind the
riving knife.
Pushstick Item no. 5320 6208 Fig."W"
For cutting narrow workpieces and when swivelling
the sawblade, with the distance between stop rail
and sawblade less than 120 mm, turn the stop rail to
the lower guide side.
Always use the push stick to guide the workpiece.
Pushing handle Special accessory Item no. 7963
1000 Fig."X"
Safe and convenient for working with small and specially
shaped workpieces. This required push stick is easily
made and secured to the pushing handle.
Table lengh extension Fig. Y
see spare parts list
Disposal and recycling
The equipment is supplied in packaging to prevent it from
being damaged in transit. The raw materials in this pack-
aging can be reused or recycled. The equipment and its
accessories are made of various types of material, such
as metal and plastic. Never place defective equipment in
your household refuse. The equipment should be taken
to a suitable collection center for proper disposal. If you
do not know the whereabouts of such a collection point,
you should ask in your local council offi ces.
Old devices must not be disposed of with house-
hold waste!
This symbol indicates that this product must not
be disposed of together with domestic waste in
compliance with the Directive (2012/19/EU) per-
taining to waste electrical and electronic equip-
ment (WEEE). This product must be disposed of at a
designated collection point. This can occur, for example,
by handing it in at an authorised collecting point for the
recycling of waste electrical and electronic equipment.
Improper handling of waste equipment may have nega-
tive consequences for the environment and human
health due to potentially hazardous substances that are
often contained in electrical and electronic equipment.
By properly disposing of this product, you are also con-
tributing to the effective use of natural resources. You
can obtain information on collection points for waste
equipment from your municipal administration, public
waste disposal authority, an authorised body for the dis-
posal of waste electrical and electronic equipment or
your waste disposal company.
GB | 31
