W IRING CON N ECTI ON

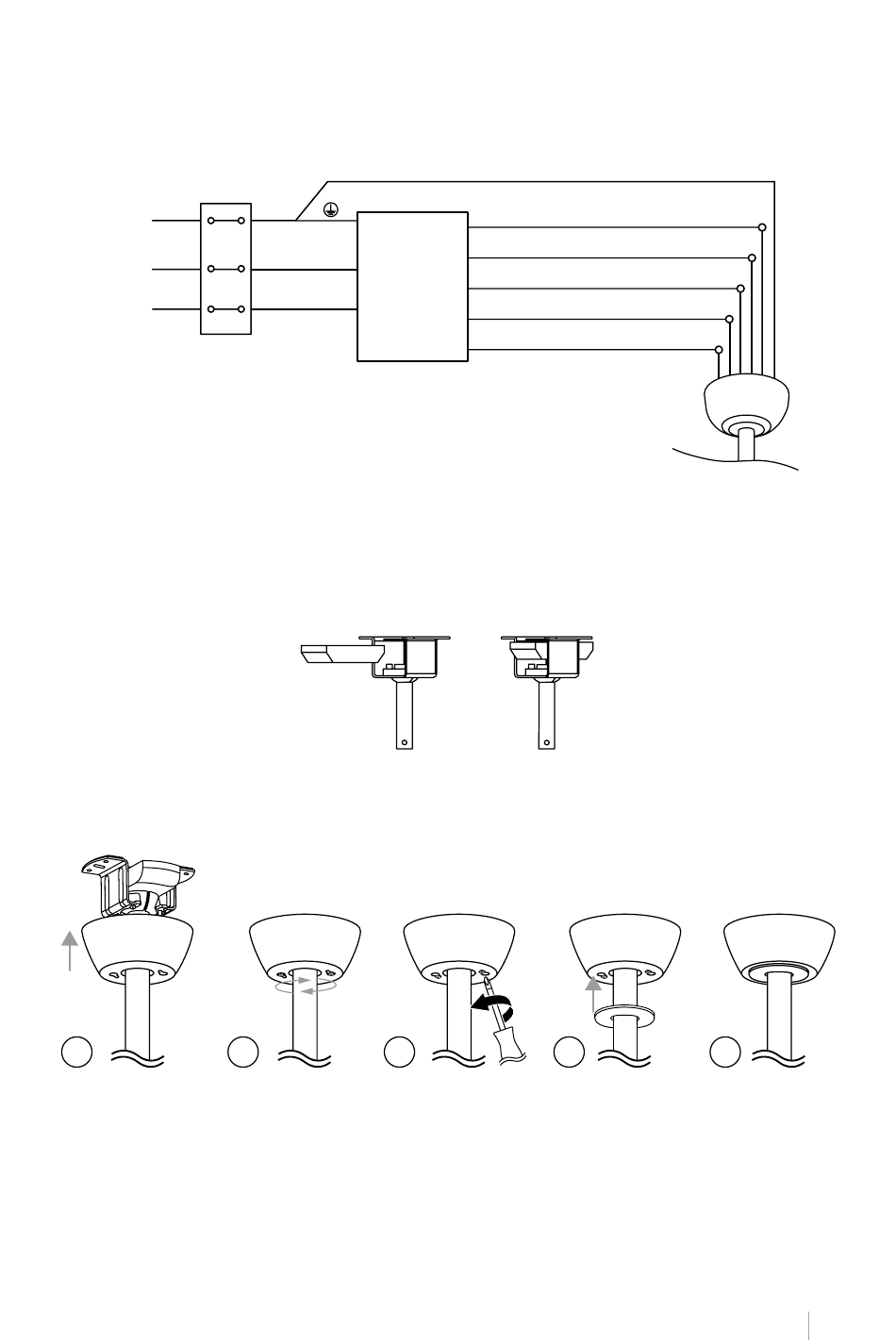

Make the connection between the receiver wires and the fan motor wires following the color
indications. Make sure the connection is secure.
Ground
L
N
* Only on models WITH LIGHT.
RE MO TE CON TRO L CO NNECT I O N
Insert the remote control controller into the mounting bracket as shown in the picture.
MOU N T I NG THE F I NIA L
1
1. Lift the finial up to the mounting bracket and align the loosened screws in the mounting
bracket with the holes in the finial.
2. Turn the finial to adjust and reinsert the screws.
3. Secure the screws with the help of a screwdriver.
4. Then lift the decorative cover towards the rosette so that it is fixed with the built-in magnet.
Advice: Another person should help you hold the ladder and hand you the fan once you are
on the ladder.
Remote
Input L
control
receiver
at the
Input N
distance
2 3
Ground (green/yellow)
Neutral N (white)*
Light L (blue)*
DC motor L (gray)
DC motor L (pink)
DC motor L (red)
