BEFORE USE
HANDLING OF THE PACKED MACHINE
The machine is supplied with suitable packing foreseen for fork lift
truck handling.
The total weight is 136kg (300 lbs.).
The Packing dimensions are:
Base: 140 cm x 75 cm (55"x30")
Height: 120 cm (48")
Do not place more than 2 packings on top of each other.

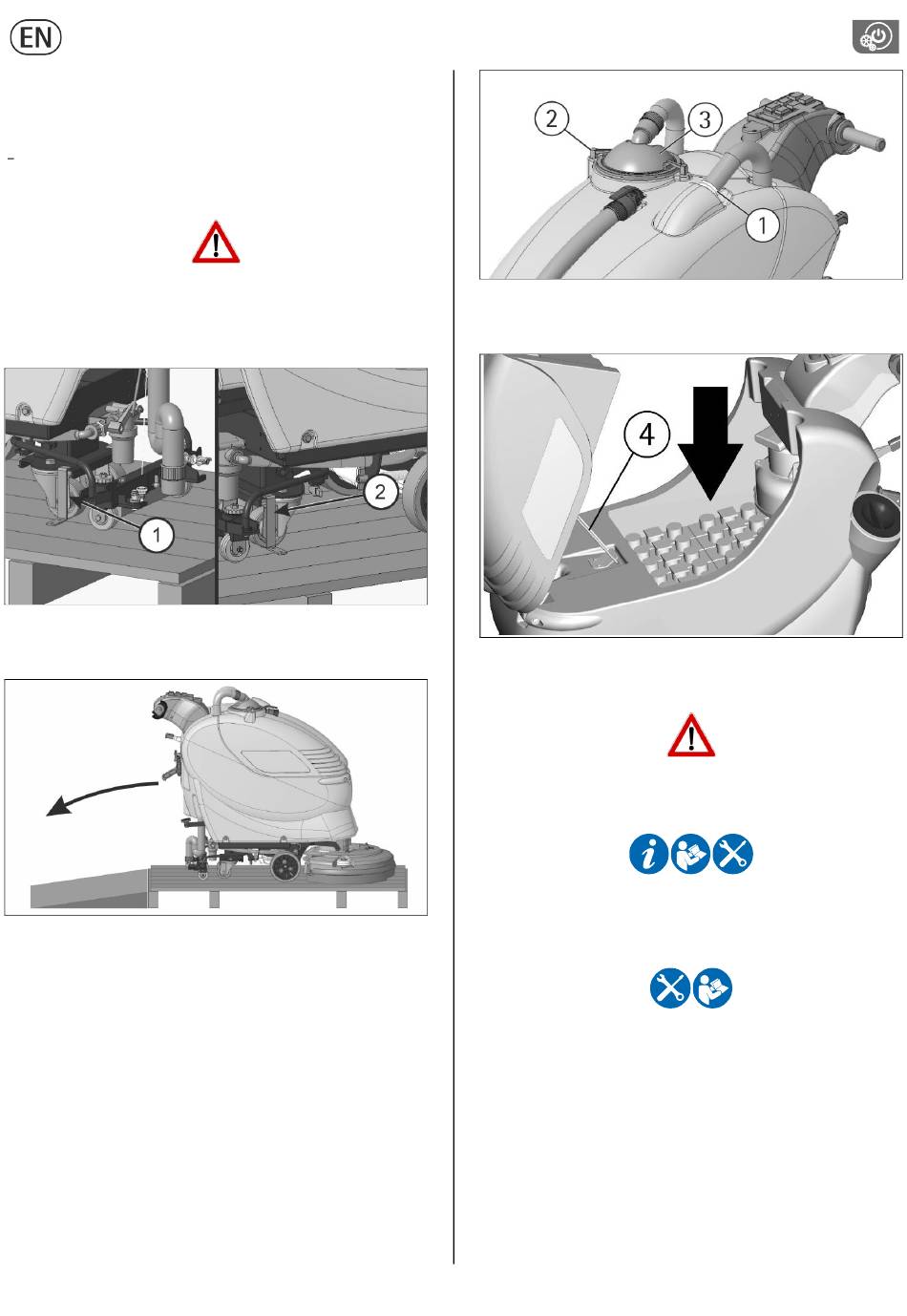

UNPACKING OF THE MACHINE
1.
Remove the external packing.
2.
Unscrew the brackets (1+2) that secure the machine to the
pallet.
3.
Provide for an inclined base.
4.
Move the machine backwards, as indicated in the figure,
avoiding heavy contacts to mechanical parts.
5.
Keep the pallet and the brackets for eventual transport.
BATTERY INSTALLATION
The machine is equipped either with batteries in serial connection or
elements of DIN-type assembled together and connected in series,
placed in its appropriate compartment under the recovery tank and
must be handled using suitable lifting equipment (due to weight,
considering the type of batteries chosen, and coupling system).
The batteries must be in accordance with CEI 21-5 Norms.
For batteries installation proceed as follows:
1.
Take off the squeegee hose (1).
2.
Take off the suction cover (2) after turning the blocking levers
(3).
3.
Lift the recovery tank by rotating it and fix it with the suitable
bar (4).
4.
Place the batteries in its compartment.
5.
Connect the terminals, respecting the polarities, avoiding
contact with other parts that could create short circuit.
6.
Reassemble all parts.
The machine and its battery check card foresee the use of traditional
lead batteries.
In case of GEL batteries installation, it is necessary to set the battery
check card. Please contact the authorized technical assistance.
Strictly
follow
manufacturer/distributor
maintenance and recharge of the batteries. All installation and
maintenance operations must be executed by specialized staff, using
suitable protection accessories.
BATTERY RECHARGER
Be sure that the battery recharger is suitable for the installed
batteries both for their capacities and type (lead/acid or GEL and
equivalent).
In versions not equipped with on-board battery charger it is
recommended to use one with current suitable for the batteries used,
SELV output voltage (Safety Extra Low Voltage) of 24Vdc and
complying with IEC/EN 60335-1 and IEC/EN 60335-2-29.
In the plastic bag containing the use and maintenance you will find
the coupling connector for the recharger. It must be assembled onto
the cables of your recharger, following the instructions given by the
manufacturer.
7
indications
for
the
