RT-155H/HB/E
©)

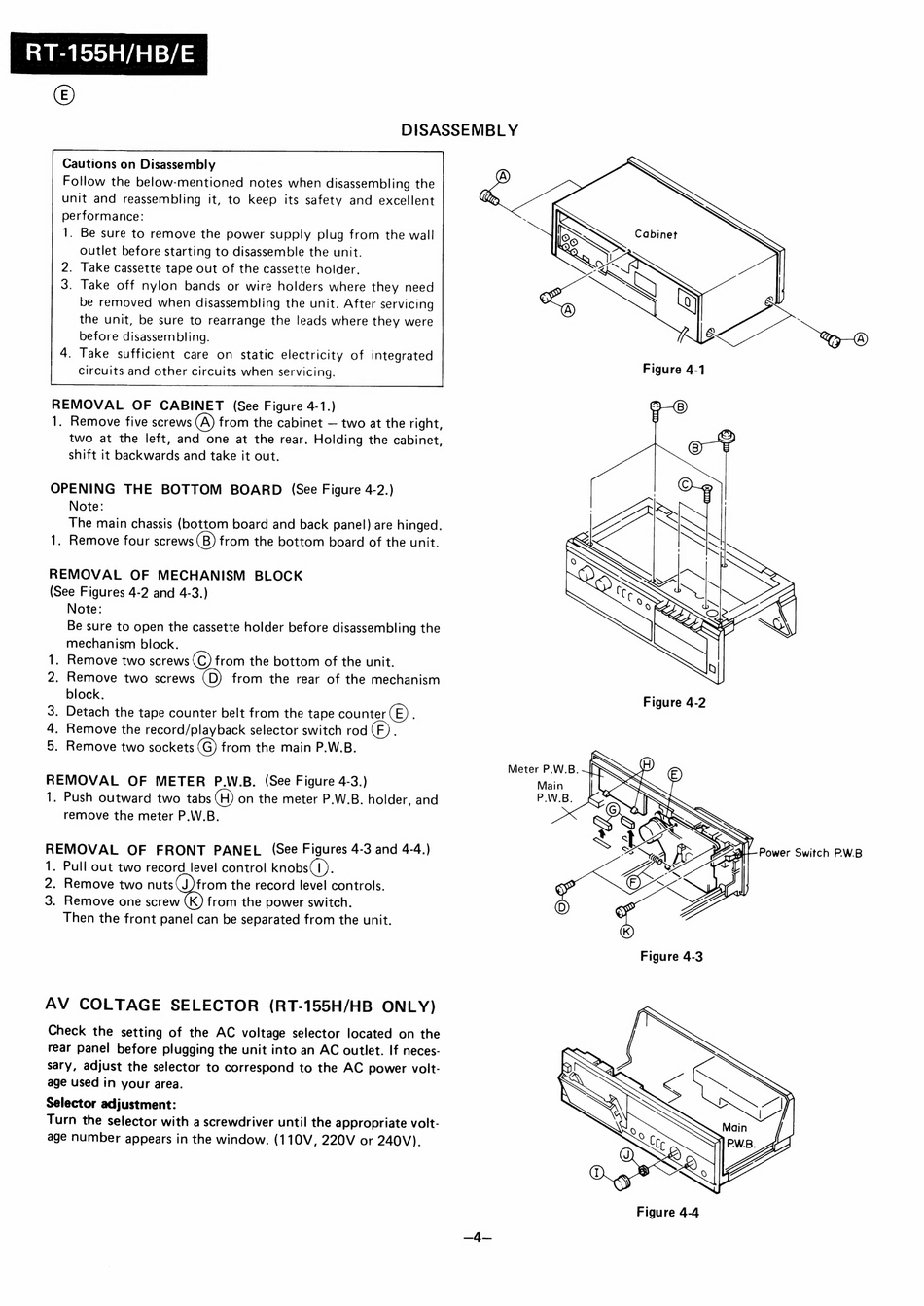

DISASSEMBLY
Cautions on Disassembly
performance:
1. Be sure to remove the power supply plug from the wall
outlet before starting to disassemble the unit.
2. Take cassette tape out of the cassette holder.
3. Take off nylon bands or wire holders where they need
before disassembling.
. Take
sufficient
care on static electricity of integrated
REMOVAL
OF
CABINET
(See Figure 4-1.)
1. Remove five screws
from the cabinet — two at the right,
two at the left, and one at the rear. Holding the cabinet,
shift it backwards and take it out.
OPENING
THE
BOTTOM
BOARD
(See Figure 4-2.)
Note:
The main chassis (bottom board and back panel) are hinged.
1, Remove four screws (B) from the bottom board of the unit.
REMOVAL
OF MECHANISM
BLOCK
(See Figures 4-2 and 4-3.)
Note:
Be sure to open the cassette holder before disassembling the
mechanism block.
. Remove two screws () from the bottom of the unit.
. Remove two screws (D) from the rear of the mechanism
block.
5. Remove two sockets (G) from the main P.W.B.
NJ
—
Meter P.W.B.
REMOVAL
OF
METER
P.W.B.
(See Figure 4-3.)
Main
1. Push outward two tabs (H) on the meter P.W.B. holder, and
P.W.B.
remove the meter P.W.B.
age used in your area.
Selector adjustment:
Figure 4-4
—_4—
