ENGLISH
For the U.K. and the Republic of Ireland only
* The wires in the mains lead are coloured in accordance with the following code:
Green & Yellow = Earth
Blue = Neutral
Brown = Live
As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:
The wire which is coloured Green-and-Yellow must be connected to the terminal in the plug which is marked with the letter E
or by the symbol or coloured Green or Green-and-Yellow.
The wire which is coloured Blue must be connected to the terminal which is marked with the letter N.
The wire which is coloured Brown must be connected to the terminal which is marked with the letter L.
7. WATER SUPPLY AND DRAIN CONNECTIONS
* The connections to the mains water supply must be made in accordance with the countries' current requirements of the Water
Supply or Water Fittings Regulations.
* Icemaking water must be potable water. Where scaling can be caused by water quality:
- Installation of an external filter or softener is recommended. Contact your local water treatment professional or Hoshizaki
service agent.
- Change to the "full drain flush" mode is recommended. Contact your local Hoshizaki service agent.
* A plumbing permit and services of a licensed plumber may be required in some areas.
* The rated water supply temperature is 5 - 35°C at a rated pressure of 0.05 - 0.8 MPa (0.5 - 8 bar) with a required flow rate of 3.8L/
min. If the pressure exceeds 0.8MPa (8 bar), use a proper pressure reducing valve. Do NOT throttle back the supply tap.
* Be sure to use the new hose-sets supplied with the appliance. Do not reuse any old hose-sets.

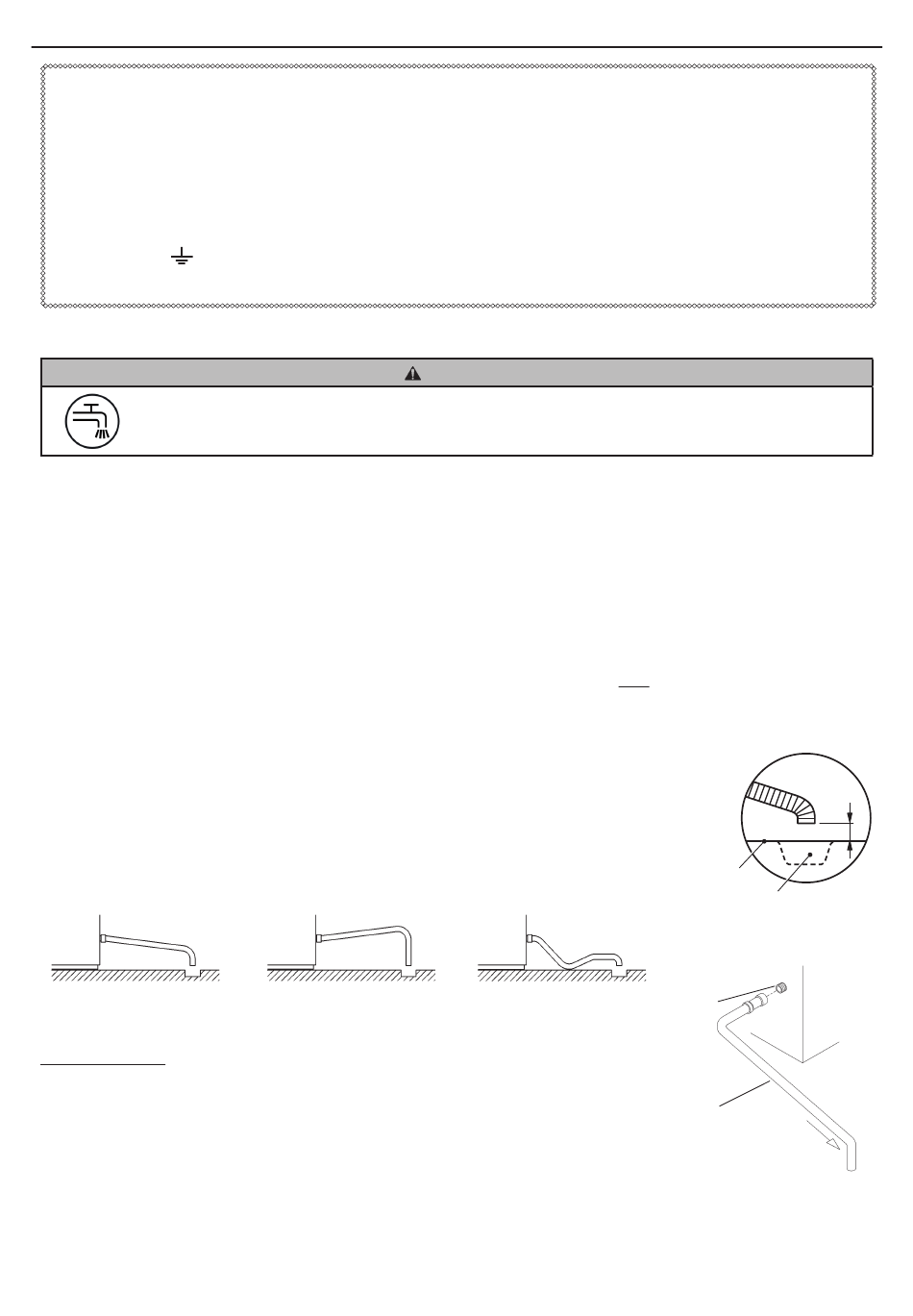

[a] Drain Connections
* Drain lines should not be installed directly to the sewer system. A vertical air gap of a minimum of
5 cm should be between the end of the drain hoses from the icemaker and the floor drain.
[Gravity Drain Models]
* The icemaker drain is gravity flow, so ensure drain hose has an adequate pitch or fall, as shown.
GOOD
Downgrade
* To prevent a backflow into the storage bin, the outlet hose must be laid as shown.
Except IM-130CPE
1) Hand tighten grey flexible outlet hose (accessory) onto the R3/4 fitting on
the rear of the icemaker as indicated, ensuring rubber washer is correctly
positioned to obtain a leak free joint. The hose can be cut to length as
necessary to suit position of main drain.
WARNING
Connect to potable cold water supply only.
BAD
Upgrade
10
Floor
BAD
R3/4
Outlet Hose
5cm air gap
Drain
