2 GETTING STARTED (Continued)
2.3 ADJUSTING THE SUPPORTING PINS
Take care when adjusting and using the indenting tool;
the points of the supporting pins are very sharp and can
puncture skin.
The indenting tool supporting pins have points on each end and
can therefore be inverted if they become worn or damaged. To
remove the pins, unscrew the hexagon screws on each side of the
indenting tool. Refit the pins, tighten the hexagon screws and then
adjust the length of the pins using the adjusting shim included with
your tester (Figure 3):
1. Place the adjusting shim on a flat hard surface.
2. Place the indenting tool on the adjusting shim with the
supporting pins in the holes in the shim.
3. Loosen the hexagon screws until the pins drop down to the
surface and then re tighten the screws.

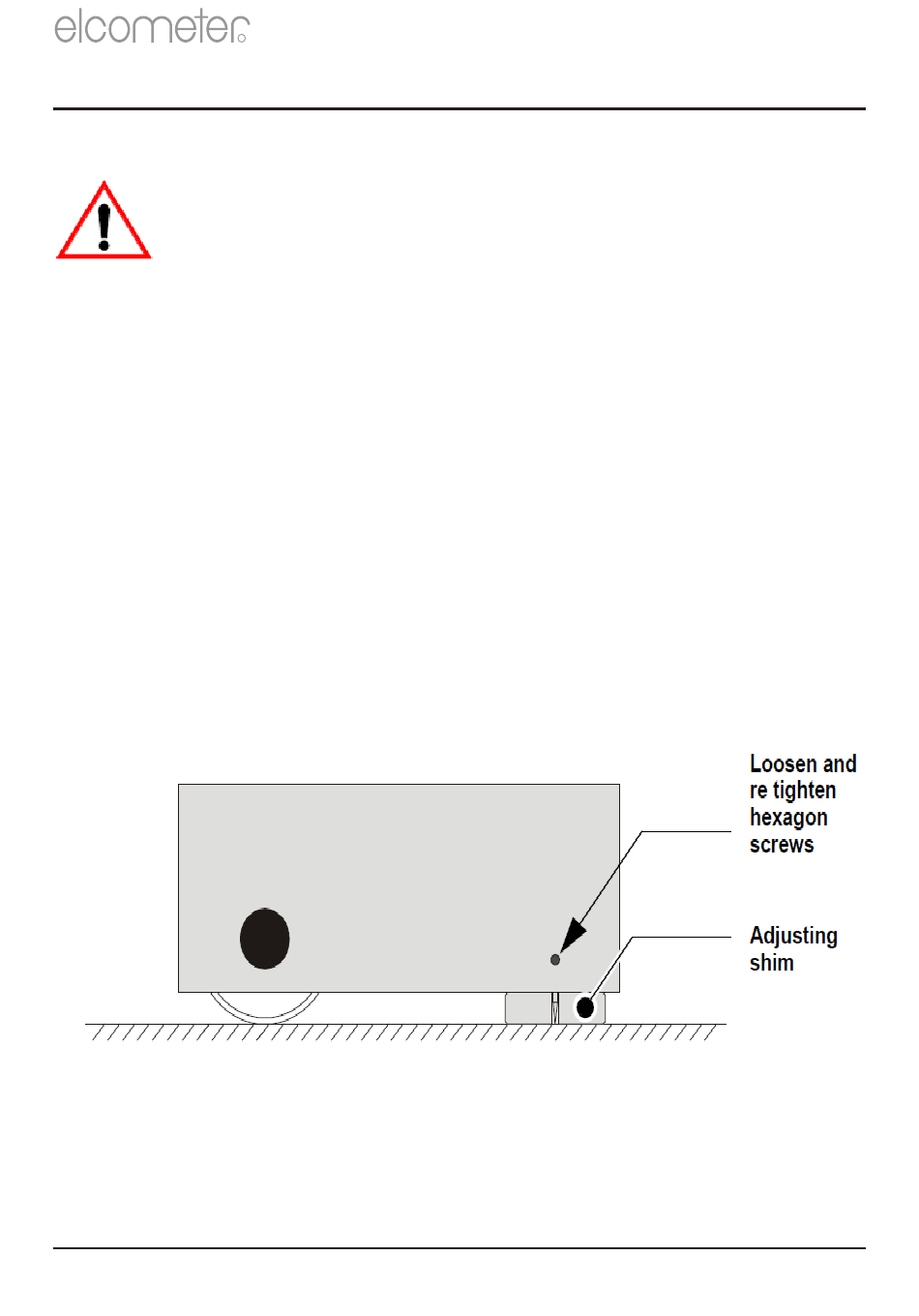

Figure 3. Adjusting the supporting pins
