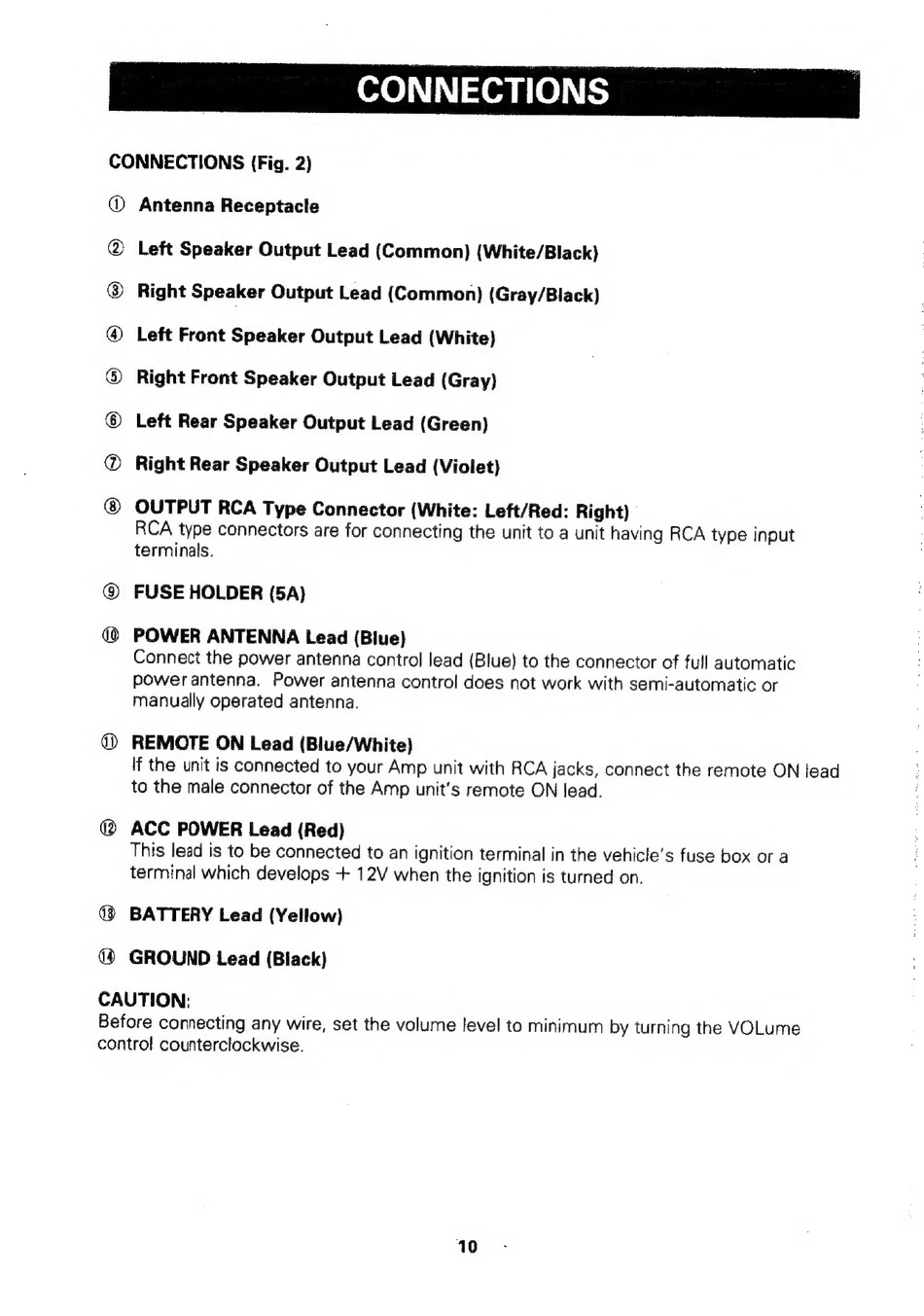

CONNECTIONS (Fig. 2)
® e@®@66
@©8
@6
6
Se ©
®
®
Antenna Receptacle
Left Speaker Output Lead (Common) (White/Black)
Left Front Speaker Output Lead (White)
Right Front Speaker Output Lead (Gray)
Left Rear Speaker Output Lead (Green)
Right Rear Speaker Output Lead (Violet)
FUSE HOLDER (5A)
POWER ANTENNA Lead (Blue)
REMOTE ON Lead (Blue/White)
ACC POWER Lead (Red)
BATTERY Lead (Yellow)
GROUND Lead (Black)
CAUTION:
Before connecting any wire, set the volume level to minimum by turning the VOLume
control counterclockwise.
10
