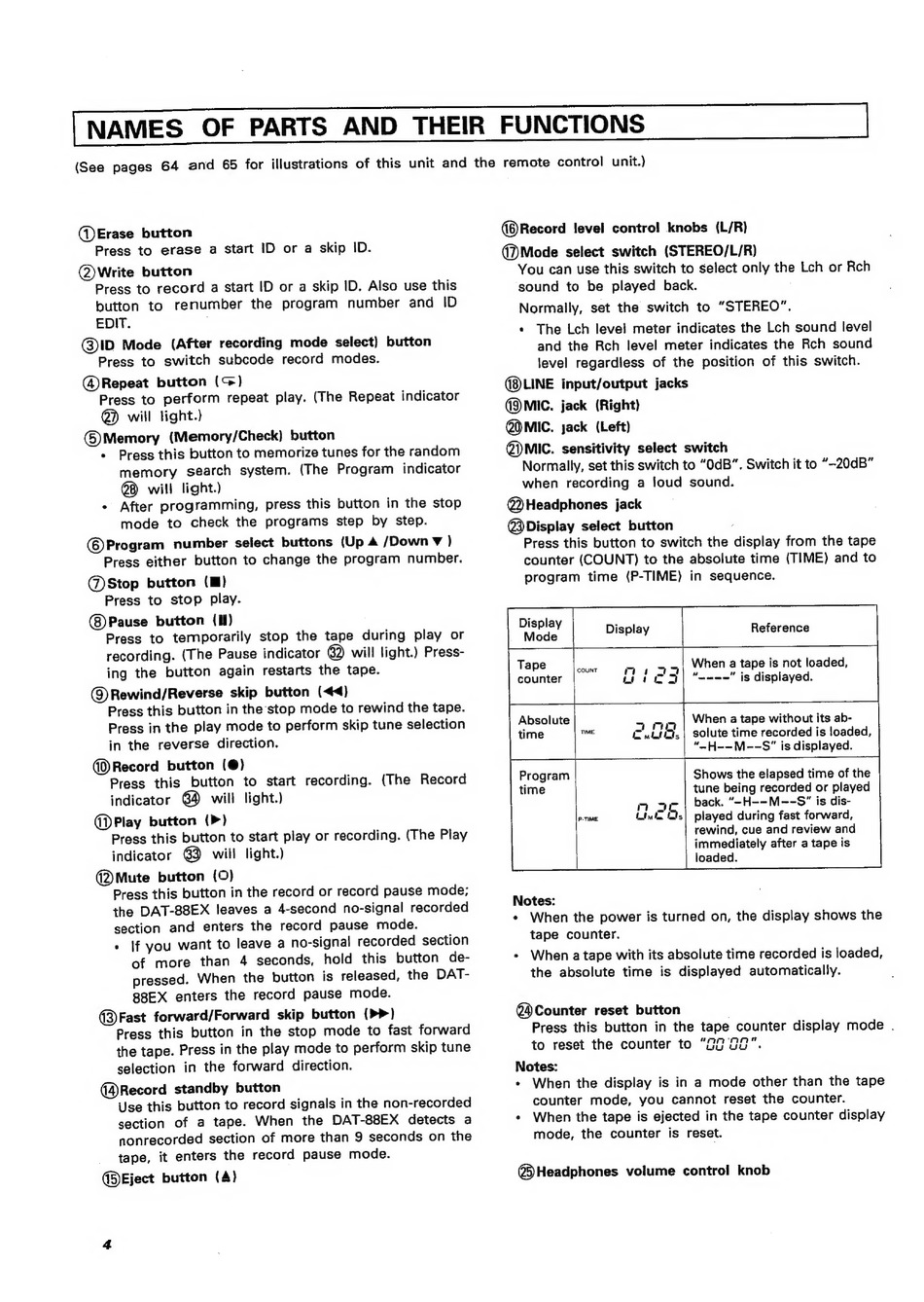

Hitachi DAT-88EX Bedienungsanleitung Seite 4

@ Erase button
Press to erase
a start ID or a skip ID.
@ Write button
Press to record a start ID or a skip ID. Also use this
button
to renumber
the program
number
and
ID
EDIT. ;
@)Pause button (I)
(Record button (@)
Press this button
to start recording.
(The Record
indicator
@4 will light.)
@ Eject button (4)
@®Record level contro! knobs (L/R)
(Mode select switch (STEREO/L/R)
sound to be played back.
Normally, set the switch to "STEREO".
(LINE input/output jacks
@9MIC. jack (Right)
Q@QMIC. jack (Left)
@)MIC. sensitivity select switch
when recording a loud sound.
@)Headphones jack
@)Display select button
program time (P-TIME) in sequence.
Display :
Mode Display Reference
Tape When a tape is not loaded,
counter ".---" is displayed.
Absolute When a tape without its ab-
time
solute time recorded is loaded,
".H-~M--S" is displayed.
Notes:
*
When the power is turned on, the display shows the
tape counter.
* When a tape with its absolute time recorded is loaded,
the absolute time is displayed automatically.
@4 Counter reset button
Press this button in the tape counter display mode .
to reset the counter to "2902".
Notes:
* When the display is in a mode other than the tape
counter mode, you cannot reset the counter.
@Headphones volume control knob
