28 | USER MANUAL

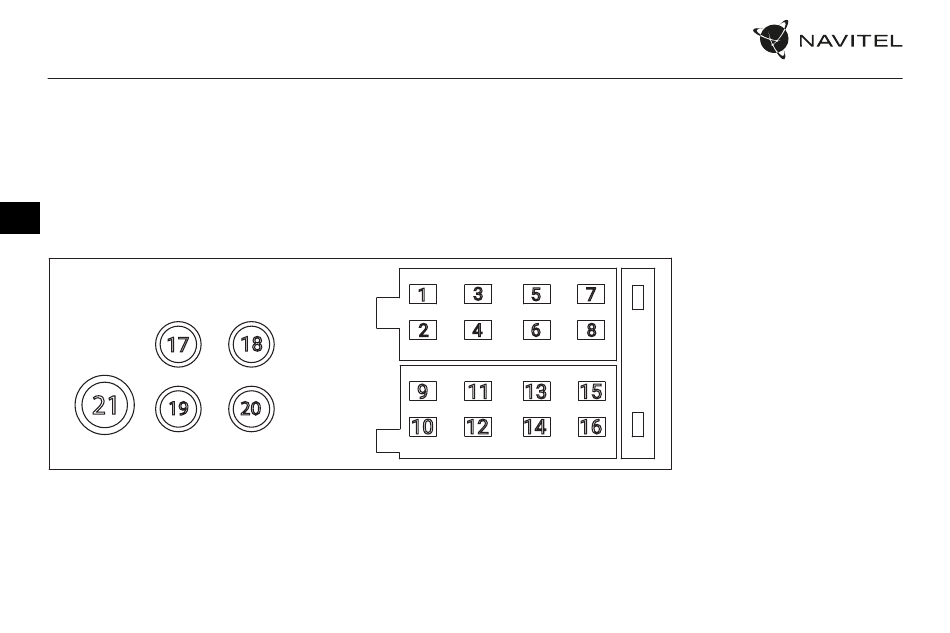

Wiring diagram

It is strongly recommended that works on installing the car radio should be done by qualified personnel with the necessary skills. Make sure these
works are safe in case of self-installation.
EN
17
21
19
1
2
18
9
20
10
3
5 7
4 6 8
11 13 15
12 14 16
1. Right rear speaker (+)
2. Right rear speaker (-)
3. Right front speaker (+)
4. Right front speaker (-)
5. Left front speaker (+)
6. Left front speaker (-)
7. Left rear speaker (+)
8. Left rear speaker (-)
9. Not used
10. Not used
11. Not used
12. Constant power supply (+12V)
13. Power antenna
14. Not used
15. Ignition/accessory
16. Ground
17. Right RCA connector (red)
18. Right RCA connector (red)
19. Left RCA connector (white)
20. Left RCA connector (white)
21. Radio antenna
