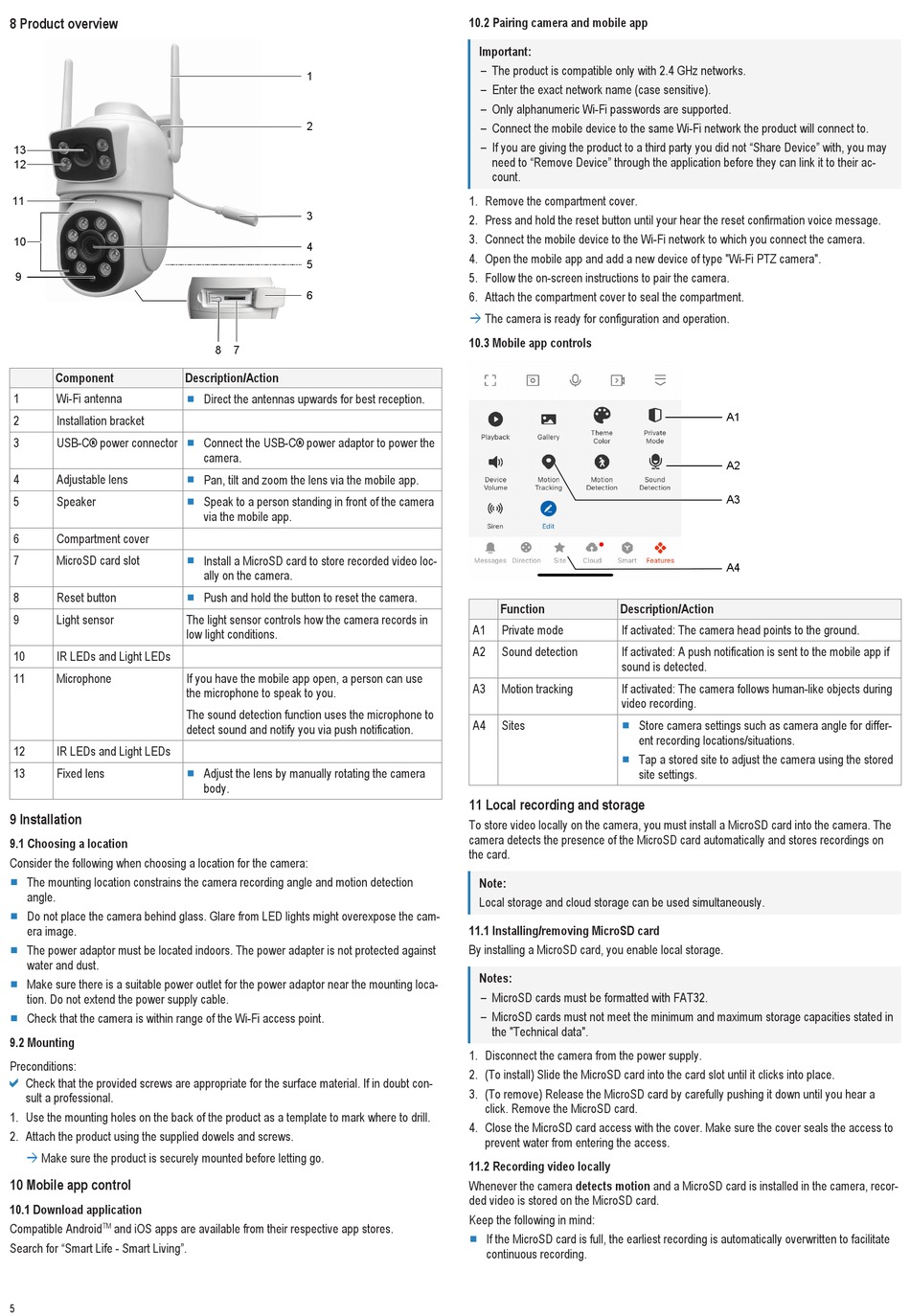

8 Product overview
13
12
11
10
9
Component
1
Wi-Fi antenna
2
Installation bracket
3
USB-C® power connector
4
Adjustable lens
5
Speaker
6
Compartment cover
7
MicroSD card slot
8
Reset button
9
Light sensor
10
IR LEDs and Light LEDs
11
Microphone
12
IR LEDs and Light LEDs
13
Fixed lens
9 Installation
9.1 Choosing a location
Consider the following when choosing a location for the camera:
■
The mounting location constrains the camera recording angle and motion detection
angle.
■
Do not place the camera behind glass. Glare from LED lights might overexpose the cam-
era image.
■
The power adaptor must be located indoors. The power adapter is not protected against
water and dust.
■
Make sure there is a suitable power outlet for the power adaptor near the mounting loca-
tion. Do not extend the power supply cable.
■
Check that the camera is within range of the Wi-Fi access point.
9.2 Mounting
Preconditions:
a
Check that the provided screws are appropriate for the surface material. If in doubt con-
sult a professional.
1. Use the mounting holes on the back of the product as a template to mark where to drill.
2. Attach the product using the supplied dowels and screws.
à
Make sure the product is securely mounted before letting go.
10 Mobile app control
10.1 Download application
TM
Compatible Android
and iOS apps are available from their respective app stores.
Search for "Smart Life - Smart Living".
5
1
2
3
4
5
6
8
7
Description/Action
■
Direct the antennas upwards for best reception.
■
Connect the USB-C® power adaptor to power the
camera.
■
Pan, tilt and zoom the lens via the mobile app.
■
Speak to a person standing in front of the camera
via the mobile app.
■
Install a MicroSD card to store recorded video loc-
ally on the camera.
■
Push and hold the button to reset the camera.
The light sensor controls how the camera records in
low light conditions.
If you have the mobile app open, a person can use
the microphone to speak to you.
The sound detection function uses the microphone to
detect sound and notify you via push notification.
■
Adjust the lens by manually rotating the camera
body.
10.2 Pairing camera and mobile app
Important:
– The product is compatible only with 2.4 GHz networks.
– Enter the exact network name (case sensitive).
– Only alphanumeric Wi-Fi passwords are supported.
– Connect the mobile device to the same Wi-Fi network the product will connect to.
– If you are giving the product to a third party you did not "Share Device" with, you may
need to "Remove Device" through the application before they can link it to their ac-
count.
1. Remove the compartment cover.
2. Press and hold the reset button until your hear the reset confirmation voice message.
3. Connect the mobile device to the Wi-Fi network to which you connect the camera.
4. Open the mobile app and add a new device of type "Wi-Fi PTZ camera".
5. Follow the on-screen instructions to pair the camera.
6. Attach the compartment cover to seal the compartment.
à
The camera is ready for configuration and operation.
10.3 Mobile app controls
Function
Description/Action
A1
Private mode
If activated: The camera head points to the ground.
A2
Sound detection
If activated: A push notification is sent to the mobile app if
sound is detected.
A3
Motion tracking
If activated: The camera follows human-like objects during
video recording.
■
A4
Sites
Store camera settings such as camera angle for differ-
ent recording locations/situations.
■
Tap a stored site to adjust the camera using the stored
site settings.
11 Local recording and storage
To store video locally on the camera, you must install a MicroSD card into the camera. The
camera detects the presence of the MicroSD card automatically and stores recordings on
the card.
Note:
Local storage and cloud storage can be used simultaneously.
11.1 Installing/removing MicroSD card
By installing a MicroSD card, you enable local storage.
Notes:
– MicroSD cards must be formatted with FAT32.
– MicroSD cards must not meet the minimum and maximum storage capacities stated in
the "Technical data".
1. Disconnect the camera from the power supply.
2. (To install) Slide the MicroSD card into the card slot until it clicks into place.
3. (To remove) Release the MicroSD card by carefully pushing it down until you hear a
click. Remove the MicroSD card.
4. Close the MicroSD card access with the cover. Make sure the cover seals the access to
prevent water from entering the access.
11.2 Recording video locally
Whenever the camera detects motion and a MicroSD card is installed in the camera, recor-
ded video is stored on the MicroSD card.
Keep the following in mind:
■
If the MicroSD card is full, the earliest recording is automatically overwritten to facilitate
continuous recording.
A1
A2
A3
A4
