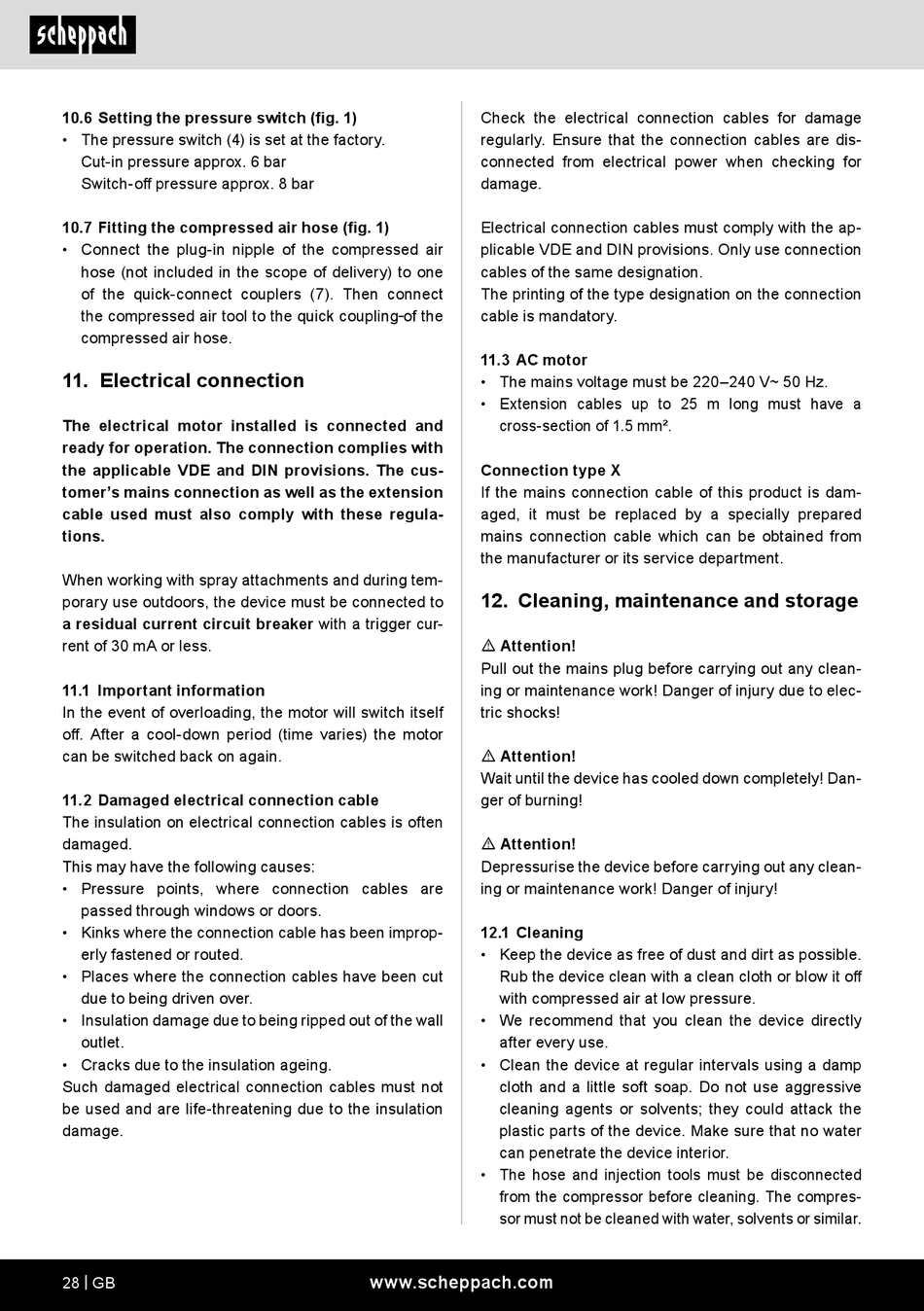

10.6 Setting the pressure switch (fig. 1)
• The pressure switch (4) is set at the factory.
Cut-in pressure approx. 6 bar
Switch-off pressure approx. 8 bar
10.7 Fitting the compressed air hose (fig. 1)
• Connect the plug-in nipple of the compressed air
hose (not included in the scope of delivery) to one
of the quick-connect couplers (7). Then connect
the compressed air tool to the quick coupling of the
compressed air hose.
11. Electrical connection
The electrical motor installed is connected and
ready for operation. The connection complies with
the applicable VDE and DIN provisions. The cus-
tomer's mains connection as well as the extension
cable used must also comply with these regula-
tions.
When working with spray attachments and during tem-
porary use outdoors, the device must be connected to
a residual current circuit breaker with a trigger cur-
rent of 30 mA or less.
11.1 Important information
In the event of overloading, the motor will switch itself
off. After a cool-down period (time varies) the motor
can be switched back on again.
11.2 Damaged electrical connection cable
The insulation on electrical connection cables is often
damaged.
This may have the following causes:
• Pressure points, where connection cables are
passed through windows or doors.
• Kinks where the connection cable has been improp-
erly fastened or routed.
• Places where the connection cables have been cut
due to being driven over.
• Insulation damage due to being ripped out of the wall
outlet.
• Cracks due to the insulation ageing.
Such damaged electrical connection cables must not
be used and are life-threatening due to the insulation
damage.
28 | GB
Check the electrical connection cables for damage
regularly. Ensure that the connection cables are dis-
connected from electrical power when checking for
damage.
Electrical connection cables must comply with the ap-
plicable VDE and DIN provisions. Only use connection
cables of the same designation.
The printing of the type designation on the connection
cable is mandatory.
11.3 AC motor
• The mains voltage must be 220‒240 V~ 50 Hz.
• Extension cables up to 25 m long must have a
cross-section of 1.5 mm².
Connection type X
If the mains connection cable of this product is dam-
aged, it must be replaced by a specially prepared
mains connection cable which can be obtained from
the manufacturer or its service department.
12. Cleaning, maintenance and storage
m Attention!
Pull out the mains plug before carrying out any clean-
ing or maintenance work! Danger of injury due to elec-
tric shocks!
m Attention!
Wait until the device has cooled down completely! Dan-
ger of burning!
m Attention!
Depressurise the device before carrying out any clean-
ing or maintenance work! Danger of injury!
12.1 Cleaning
• Keep the device as free of dust and dirt as possible.
Rub the device clean with a clean cloth or blow it off
with compressed air at low pressure.
• We recommend that you clean the device directly
after every use.
• Clean the device at regular intervals using a damp
cloth and a little soft soap. Do not use aggressive
cleaning agents or solvents; they could attack the
plastic parts of the device. Make sure that no water
can penetrate the device interior.
• The hose and injection tools must be disconnected
from the compressor before cleaning. The compres-
sor must not be cleaned with water, solvents or similar.
