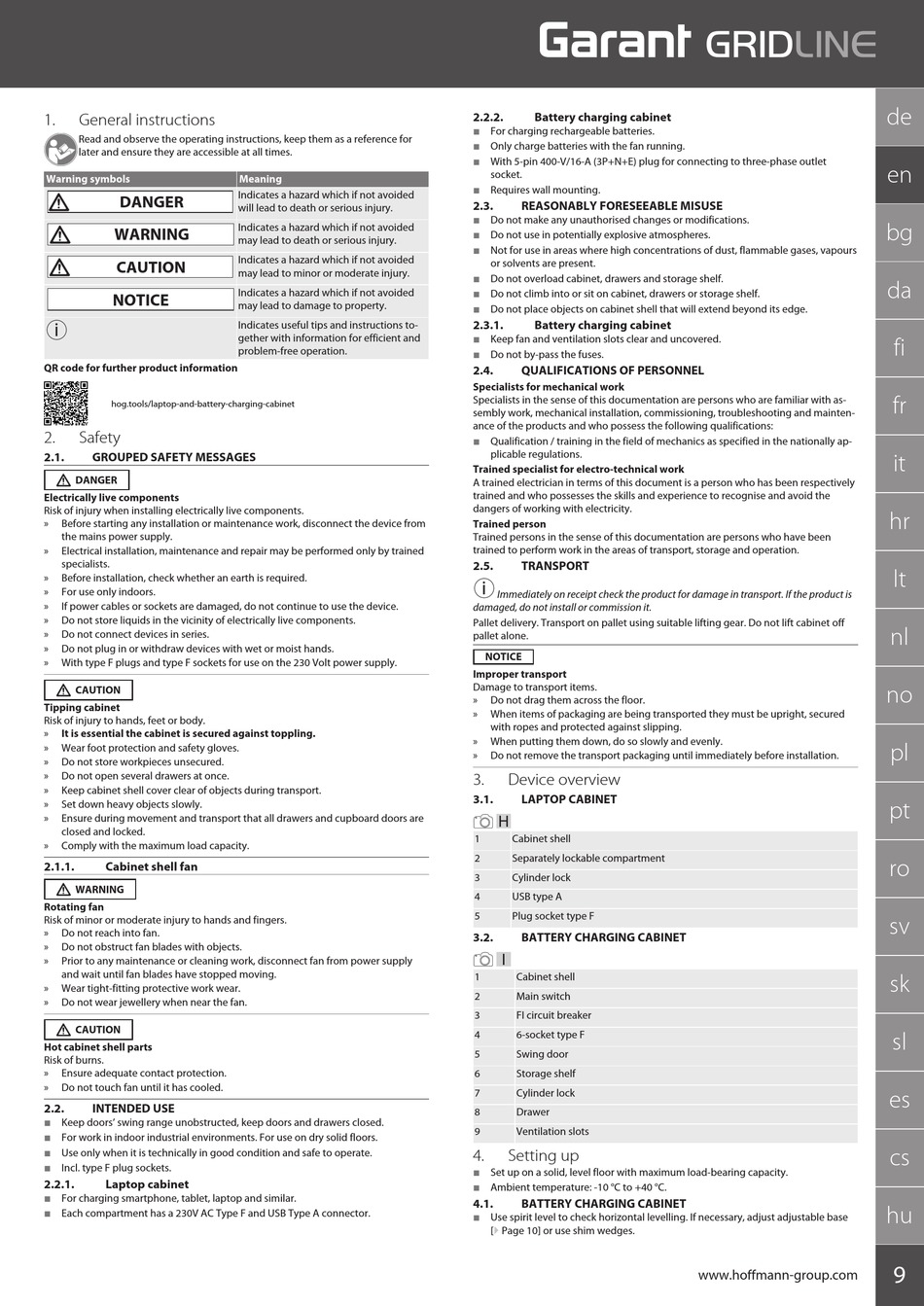

1.
General instructions
Read and observe the operating instructions, keep them as a reference for
later and ensure they are accessible at all times.
Warning symbols
DANGER
WARNING
CAUTION
NOTICE
i
QR code for further product information
hog.tools/laptop-and-battery-charging-cabinet
2.
Safety
2.1.
GROUPED SAFETY MESSAGES
DANGER
Electrically live components
Risk of injury when installing electrically live components.
»
Before starting any installation or maintenance work, disconnect the device from
the mains power supply.
»
Electrical installation, maintenance and repair may be performed only by trained
specialists.
»
Before installation, check whether an earth is required.
»
For use only indoors.
»
If power cables or sockets are damaged, do not continue to use the device.
»
Do not store liquids in the vicinity of electrically live components.
»
Do not connect devices in series.
»
Do not plug in or withdraw devices with wet or moist hands.
»
With type F plugs and type F sockets for use on the 230 Volt power supply.
CAUTION
Tipping cabinet
Risk of injury to hands, feet or body.
»
It is essential the cabinet is secured against toppling.
»
Wear foot protection and safety gloves.
»
Do not store workpieces unsecured.
»
Do not open several drawers at once.
»
Keep cabinet shell cover clear of objects during transport.
»
Set down heavy objects slowly.
»
Ensure during movement and transport that all drawers and cupboard doors are
closed and locked.
»
Comply with the maximum load capacity.
2.1.1.
Cabinet shell fan
WARNING
Rotating fan
Risk of minor or moderate injury to hands and fingers.
»
Do not reach into fan.
»
Do not obstruct fan blades with objects.
»
Prior to any maintenance or cleaning work, disconnect fan from power supply
and wait until fan blades have stopped moving.
»
Wear tight-fitting protective work wear.
»
Do not wear jewellery when near the fan.
CAUTION
Hot cabinet shell parts
Risk of burns.
»
Ensure adequate contact protection.
»
Do not touch fan until it has cooled.
2.2.
INTENDED USE
Keep doors' swing range unobstructed, keep doors and drawers closed.
For work in indoor industrial environments. For use on dry solid floors.
Use only when it is technically in good condition and safe to operate.
Incl. type F plug sockets.
2.2.1.
Laptop cabinet
For charging smartphone, tablet, laptop and similar.
Each compartment has a 230V AC Type F and USB Type A connector.
Meaning
Indicates a hazard which if not avoided
will lead to death or serious injury.
Indicates a hazard which if not avoided
may lead to death or serious injury.
Indicates a hazard which if not avoided
may lead to minor or moderate injury.
Indicates a hazard which if not avoided
may lead to damage to property.
Indicates useful tips and instructions to-
gether with information for efficient and
problem-free operation.
2.2.2.
Battery charging cabinet
For charging rechargeable batteries.
Only charge batteries with the fan running.
With 5-pin 400-V/16-A (3P+N+E) plug for connecting to three-phase outlet
socket.
Requires wall mounting.
2.3.
REASONABLY FORESEEABLE MISUSE
Do not make any unauthorised changes or modifications.
Do not use in potentially explosive atmospheres.
Not for use in areas where high concentrations of dust, flammable gases, vapours
or solvents are present.
Do not overload cabinet, drawers and storage shelf.
Do not climb into or sit on cabinet, drawers or storage shelf.
Do not place objects on cabinet shell that will extend beyond its edge.
2.3.1.
Battery charging cabinet
Keep fan and ventilation slots clear and uncovered.
Do not by-pass the fuses.
2.4.
QUALIFICATIONS OF PERSONNEL
Specialists for mechanical work
Specialists in the sense of this documentation are persons who are familiar with as-
sembly work, mechanical installation, commissioning, troubleshooting and mainten-
ance of the products and who possess the following qualifications:
Qualification / training in the field of mechanics as specified in the nationally ap-
plicable regulations.
Trained specialist for electro-technical work
A trained electrician in terms of this document is a person who has been respectively
trained and who possesses the skills and experience to recognise and avoid the
dangers of working with electricity.
Trained person
Trained persons in the sense of this documentation are persons who have been
trained to perform work in the areas of transport, storage and operation.
2.5.
TRANSPORT
i
Immediately on receipt check the product for damage in transport. If the product is
damaged, do not install or commission it.
Pallet delivery. Transport on pallet using suitable lifting gear. Do not lift cabinet off
pallet alone.
NOTICE
Improper transport
Damage to transport items.
»
Do not drag them across the floor.
»
When items of packaging are being transported they must be upright, secured
with ropes and protected against slipping.
»
When putting them down, do so slowly and evenly.
»
Do not remove the transport packaging until immediately before installation.
3.
Device overview
3.1.
LAPTOP CABINET
H
1
Cabinet shell
2
Separately lockable compartment
3
Cylinder lock
4
USB type A
5
Plug socket type F
3.2.
BATTERY CHARGING CABINET
I
1
Cabinet shell
2
Main switch
3
FI circuit breaker
4
6-socket type F
5
Swing door
6
Storage shelf
7
Cylinder lock
8
Drawer
9
Ventilation slots
4.
Setting up
Set up on a solid, level floor with maximum load-bearing capacity.
Ambient temperature: -10 °C to +40 °C.
4.1.
BATTERY CHARGING CABINET
Use spirit level to check horizontal levelling. If necessary, adjust adjustable base
[} Page 10] or use shim wedges.
