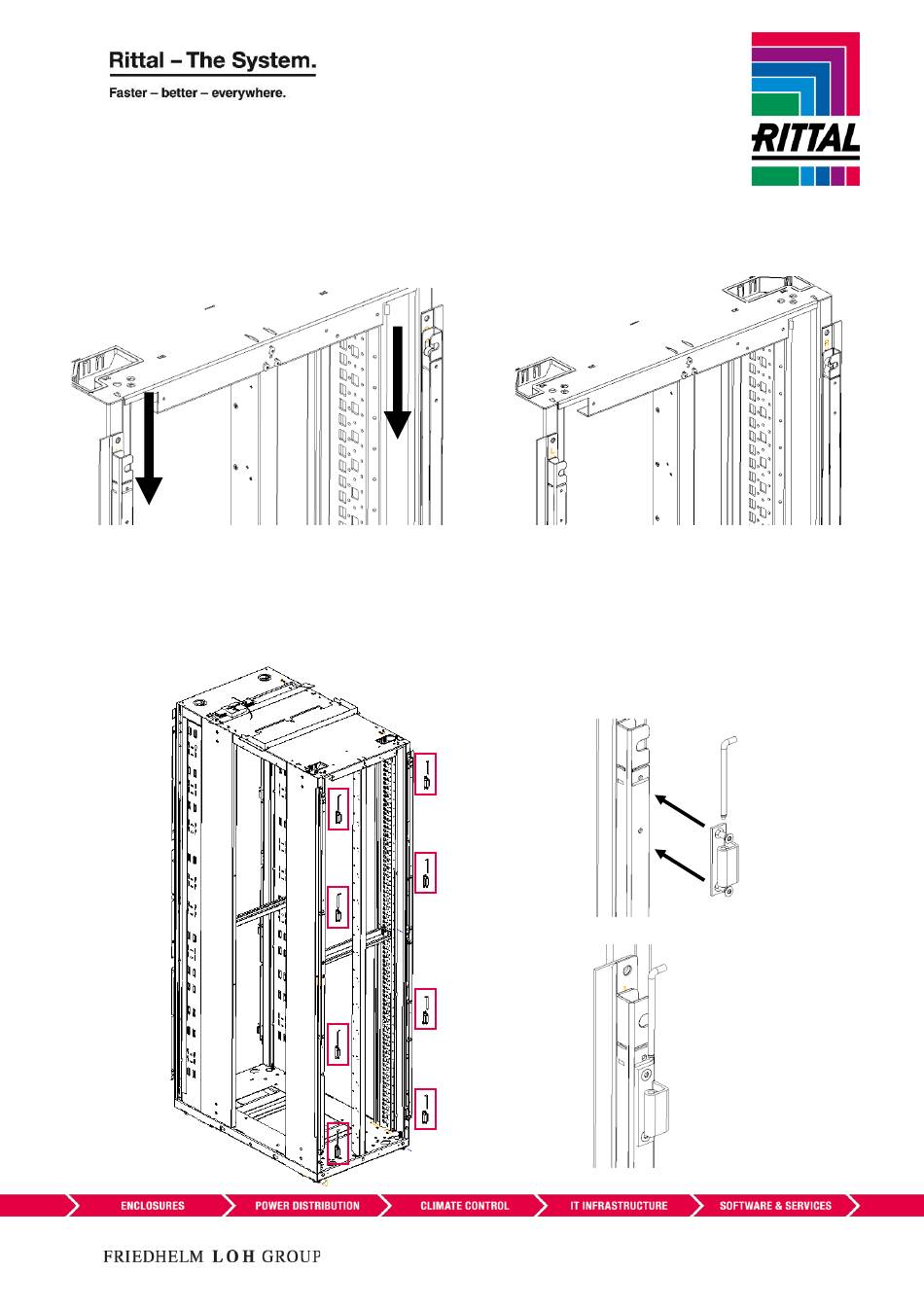

3. Use the keyhole slots on the doors verticals to align with the 2 tops screws
and pull down to lock in place.
4. The rest of the M8 screws (4x left & 4x right total) can be installed and
tightened to 9Nm.
5. Install the 4x hinges to the left rear vertical (shown below), using the M5
trilobe screws (2x each hinge) as shown below (5Nm), leaving hinge pins
aside. Repeat for the right rear vertical.
Page 80
