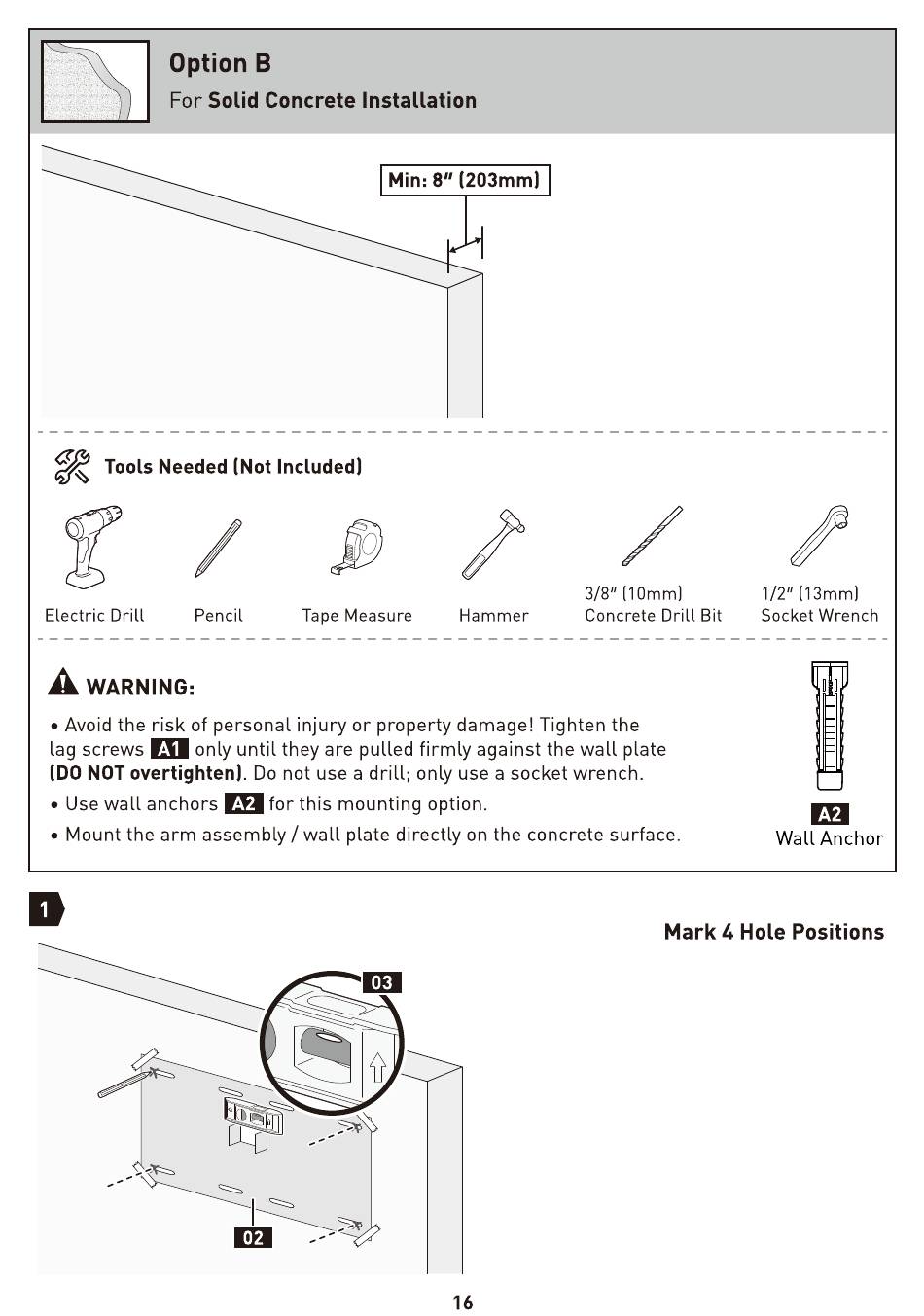

Option B
For
Solid
Tools Needed (Not Included)
Electric
Drill
Pencil
A WARNING
:
• Avoid the risk of personal injury or property damage! Tighten the
lag screws
only until they are pulled firmly against the wall plate
(DO NOTovertighten). Do not use a drill; only use a socket wrench.
• Use
wall
anchors
• Mount the arm assembly / wall plate directly on the concrete surface
Concrete
Installation
Min: 8" (203mm)
C)
Tape Measure
for this mounting option
03
02
3/8" (10mm)
Hammer
Concrete
16
1/2" (13mm)
Drill
Bit
Socket
Wrench
10
Wall
Anchor
Mark
4 Hole
Positions
