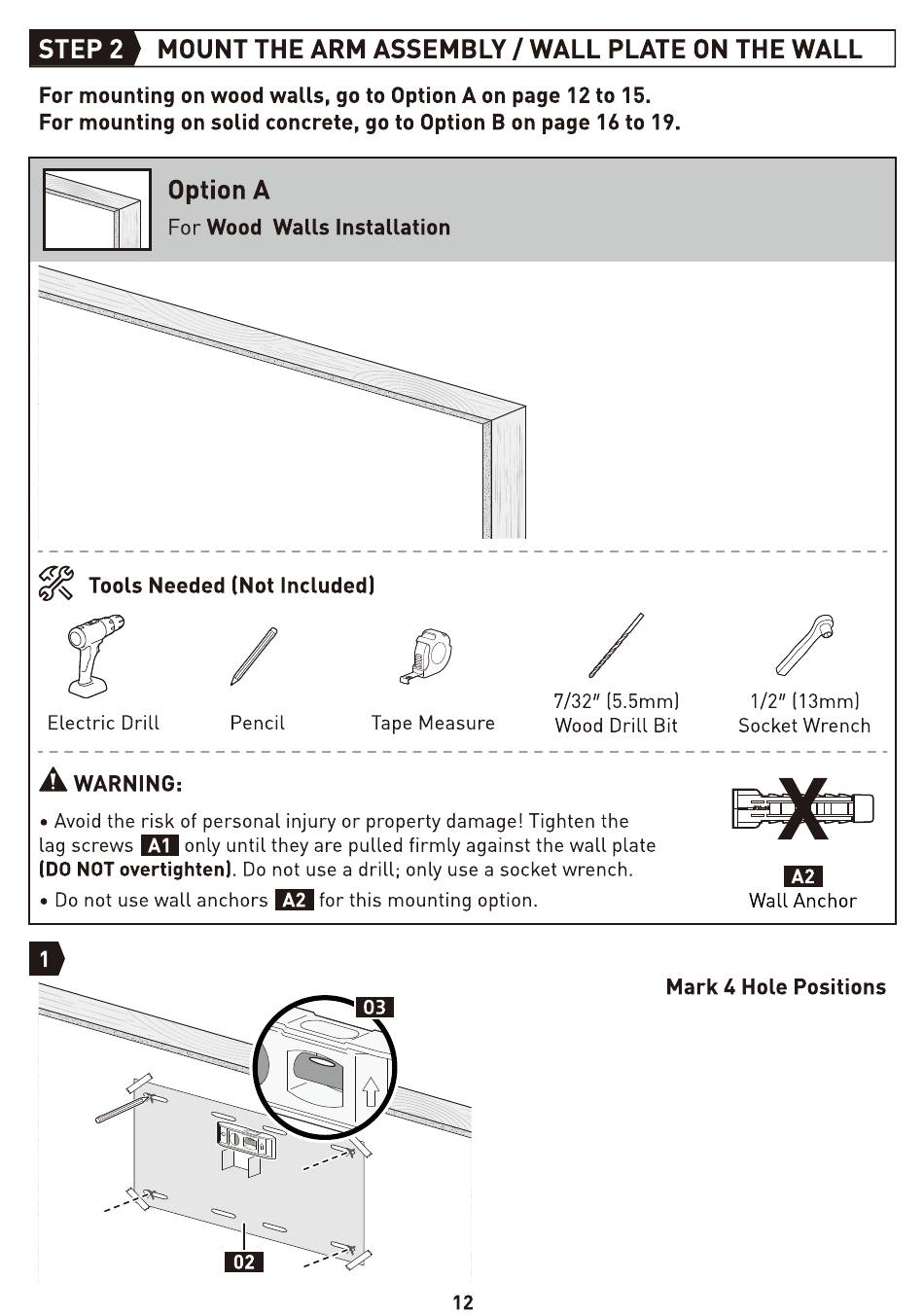

MOUNT THE ARM ASSEMBLY
STEP
2
For mounting
on wood walls, go to Option A on page 12 to 15.
For mounting
on solid concrete, go to Option B on page 16 to 19.
Option A
For
Wood
Tools Needed (Not Included)
Electric
Drill
A WARNING:
• Avoid the risk of personal injury or property damage! Tighten the
lag screws
only until they are pulled firmly against the wall plate
(DO NOTovertighten). Do not use a drill; only use a socket wrench
• Do not
use wall
anchors
Walls
Installation
Pencil
Tape Measure
for this mounting option
03
02
/ WALL PLATE ON THE WALL
C)
7/32" (5 5mm)
Wood
12
1/2" (13mm)
Socket
Drill
Bit
Wall
Mark
4 Hole
Wrench
Anchor
Positions
