AXP-IOOH MUSCLE
AM2/AM2+/AM3/AM3+/FM1/FM2/FM2+

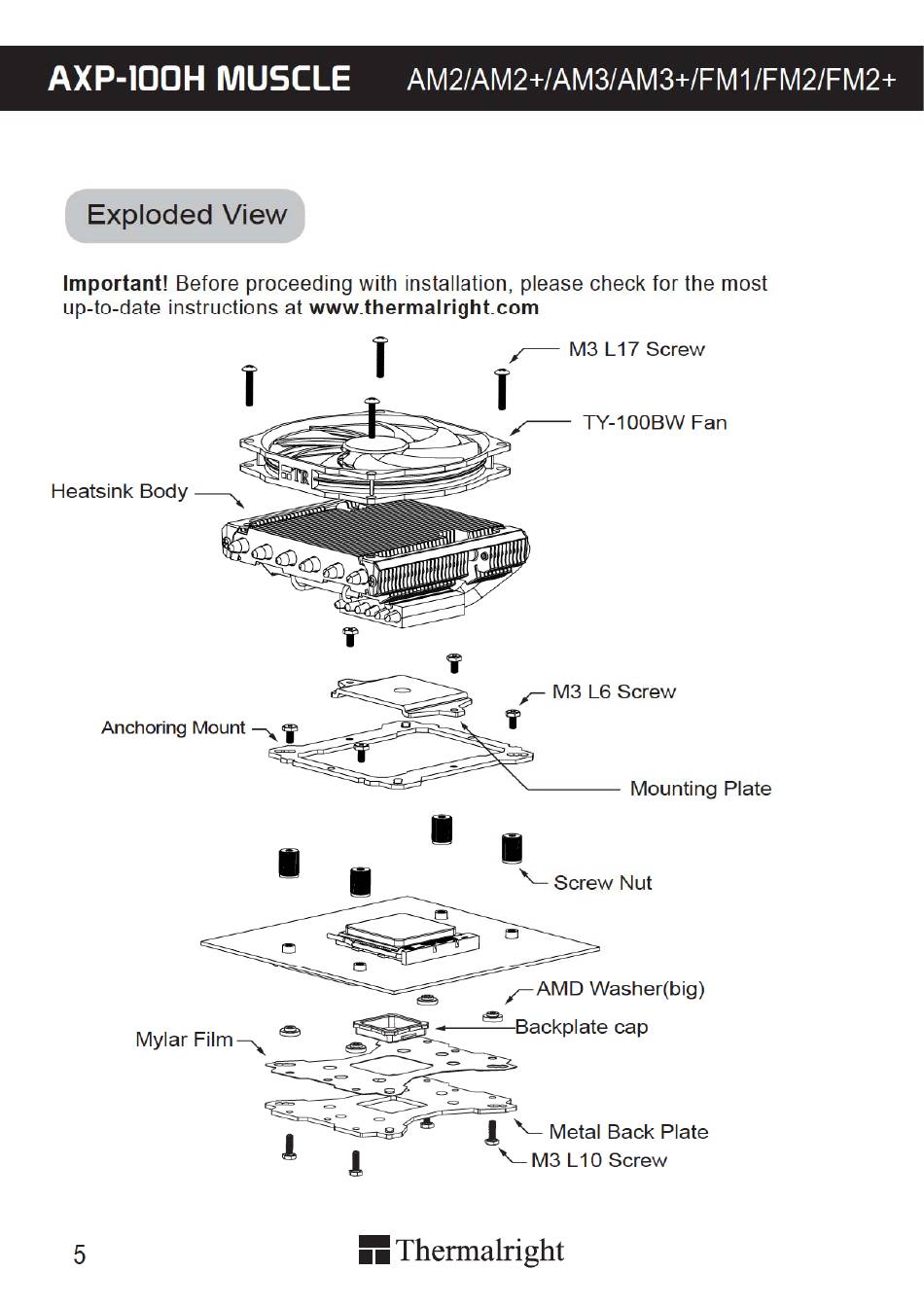

Exploded View
Important! Before proceeding with installation, please check for the most
up-to-date instructions at www.thermalright.com
Z— M3 L17 Screw
TY-I OOBW Fan
HeatsinkBody—X
M3 L6 Screw
Anchoring Mount —X
Mounting Plate
AMD Washer(big)
Backplate cap
Mylar Film
X— Metal Back Plate
M3 LIO Screw
Thermalright
5
