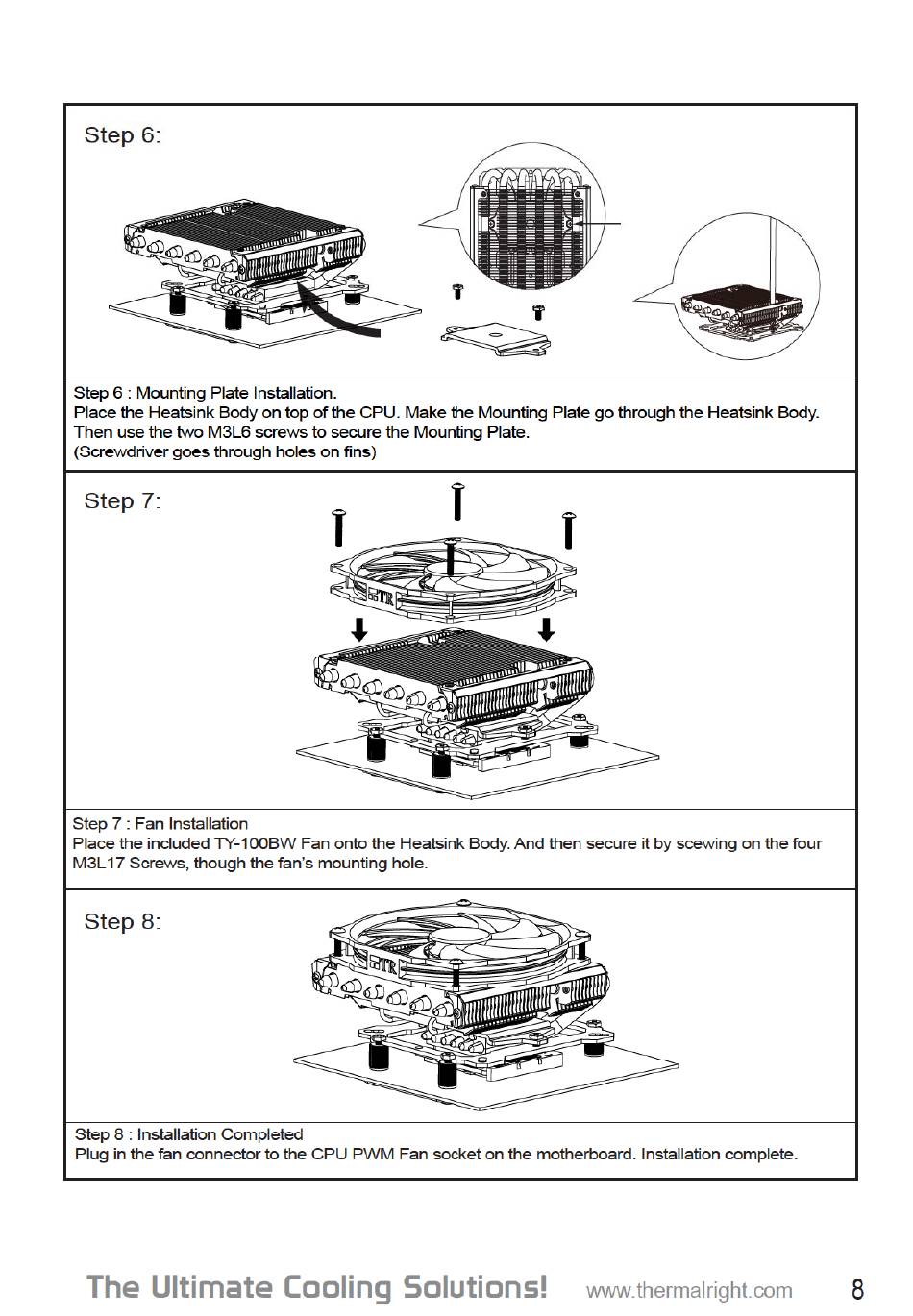

Step 6:
Step 6 : Mounting Plate Installation.
Place the Heatsink Body on top of the CPU. Make the Mounting Plate go through the Heatsink Body.
Then use the M3L6 screws to secure the Mounting Plate.
(Screwdriver goes through holes on fins)
step 7:
Step 7 : Fan Installation
Place the included TV-IOOBW
M3L17 Screws, though the fan's mounting
Step 8:
Step 8 : Installation Completed
Plug in the fan connector
The Ultimate
0000
Fan onto the Heatsink Body. And then secure it by scewing on the four
hole.
to the CPU PWM Fan socket on the motherboard.
Cooling Solutions!
Installation complete.
