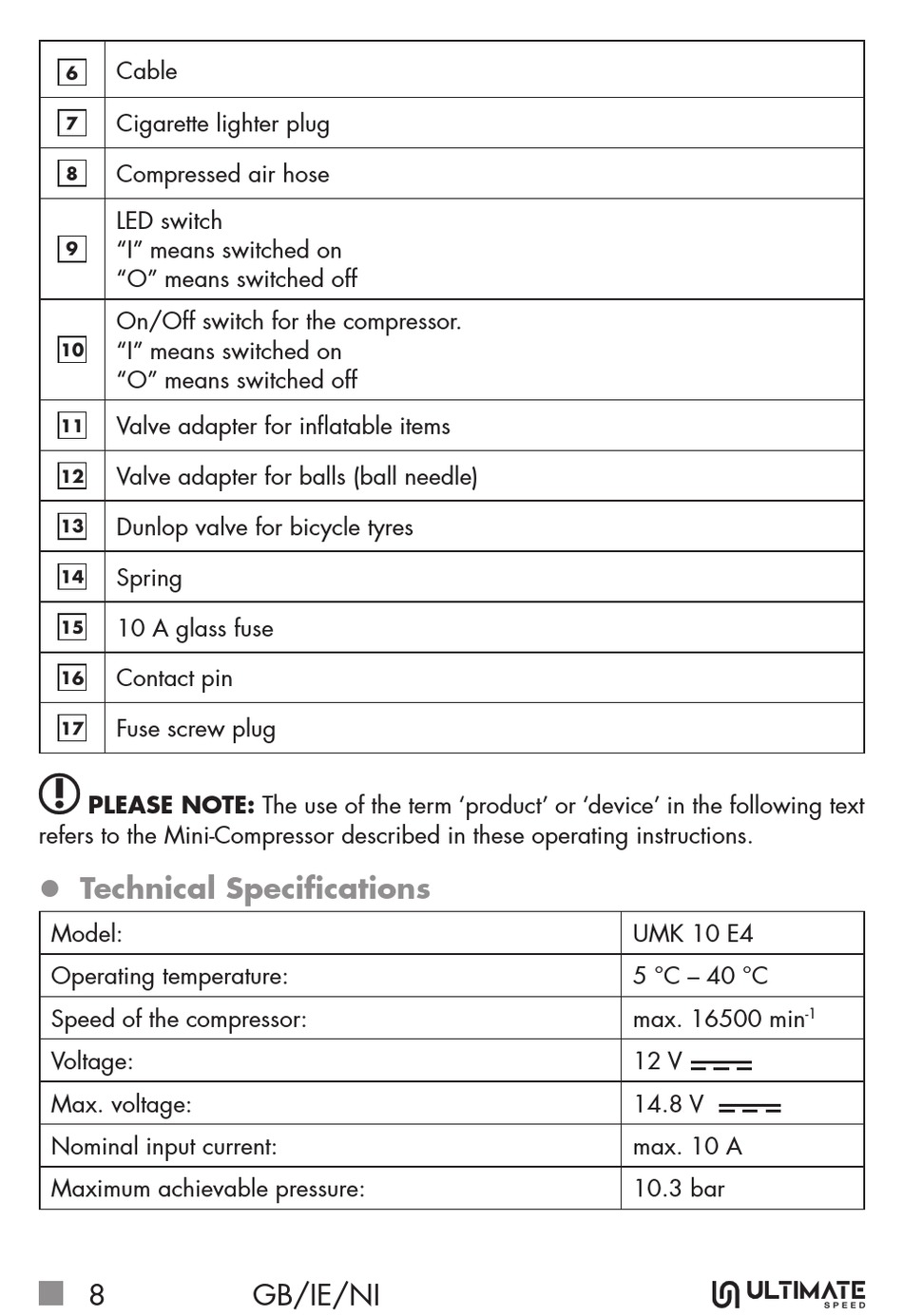

Cable
6
Cigarette lighter plug
7
Compressed air hose
8
LED switch
"I" means switched on
9
"O" means switched off
On/Off switch for the compressor.
"I" means switched on
10
"O" means switched off
Valve adapter for inflatable items
11
Valve adapter for balls (ball needle)
12
Dunlop valve for bicycle tyres
13
Spring
14
10 A glass fuse
15
Contact pin
16
Fuse screw plug
17
PLEASE NOTE: The use of the term 'product' or 'device' in the following text
refers to the Mini-Compressor described in these operating instructions.
z Technical Specifications
Model:
Operating temperature:
Speed of the compressor:
Voltage:
Max. voltage:
Nominal input current:
Maximum achievable pressure:
8 GB/IE/NI
UMK 10 E4
5 °C – 40 °C
max. 16500 min
12 V
14.8 V
max. 10 A
10.3 bar
-1
