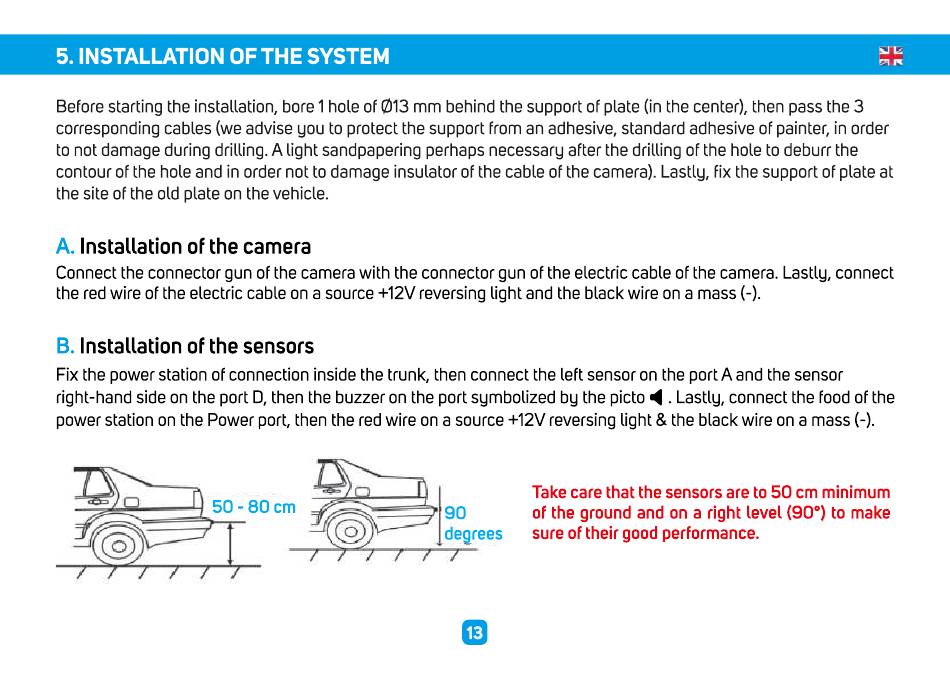

5. INSTALLATION OF THE SYSTEM
Beforestarting the installation, bore I hole of 013 mm behind the support of plate (in the center),then pass the 3
corresponding cables (we advise gou to protect the support from an adhesive, standard adhesive of painter, in order
to not damage during drilling. A light sandpapering perhaps necessary after the drilling of the hole to deburr the
contour of the hole and in order not to damage insulator of the cable of the camera).Lastly, fix the support of plate at
the site of the old plate on the vehicle.
Installation of the camera
Connect the connector gun of the camera with the connector gun of the electric cable of the camera. Lastly, connect
the redwire of the electric cable on a source +12Vreversing light and the black wire on a mass (-).
B. Installation of the sensors
Fix the power station of connection inside the trunk, then connect the left sensor on the port A and the sensor
right-hand side on the port D, then the buzzer on the port symbolized bu the picto
power station on the Powerport, then the redwire on a source +12Vreversing light & the black wire on a mass (-).
50 - 80 cm
90
degrees
. Lastly, connect the food of the
Take care that the sensors
of the ground and on a right level (900) to make
sure of their good performance.
are to 50 cm minimum
