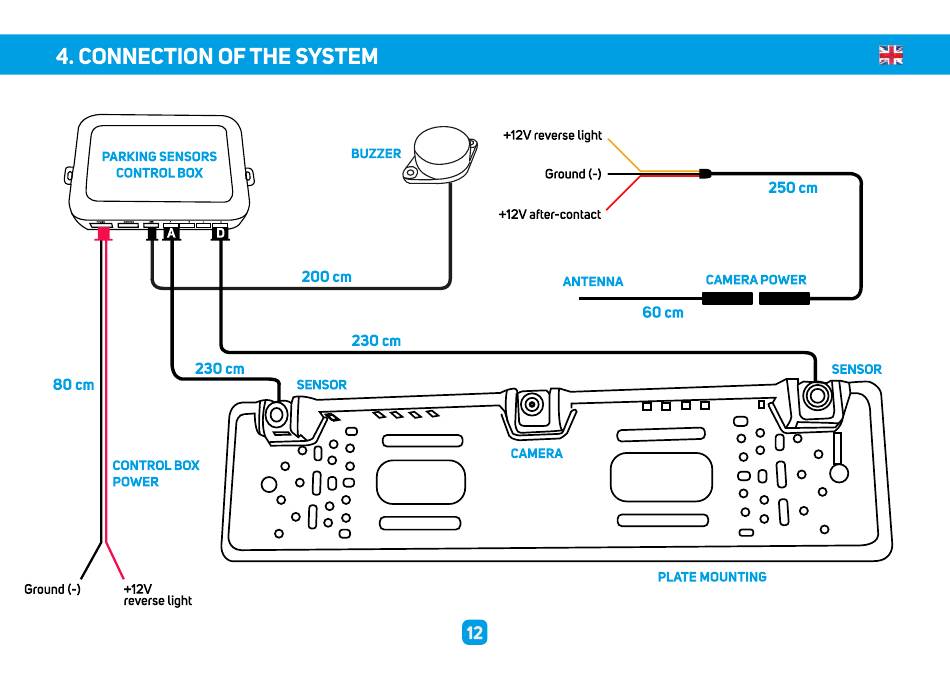

4. CONNECTION
PARKING SENSORS
CONTROL BOX
230
80 cm
CONTROL BOX
POWER
Ground (-)
reverse light
OF THE SYSTEM
BUZZER
200 cm
230 cm
cm
SENSOR
00
0 0 000
+12V reverse light
Ground (-)
+12V after-contact
ANTENNA
60 cm
CAMERA
PLATE
250 cm
CAMERA POWER
SENSOR
o
000
0000
O
O
MOUNTING
