LITHIUM BATTERY
1. Connect charge leads to the charger, making sure polarity of all
leads is correct
2. Turn the charger on and check your settings that they match the
battery pack you intend to charge
3. Connect the main leads of the battery to the main leads of the
charger.
4. Connect the balance lead of the battery to the correct balance port
on the multi balance board. If in doubt as to which socket to use please
ask your dealer for clarification
5. Start the charge cycle, wait and watch that the charger starts to
charge and shows correct readings on the screen
6. When charging
board, then disconnect the battery main leads from the charging lead

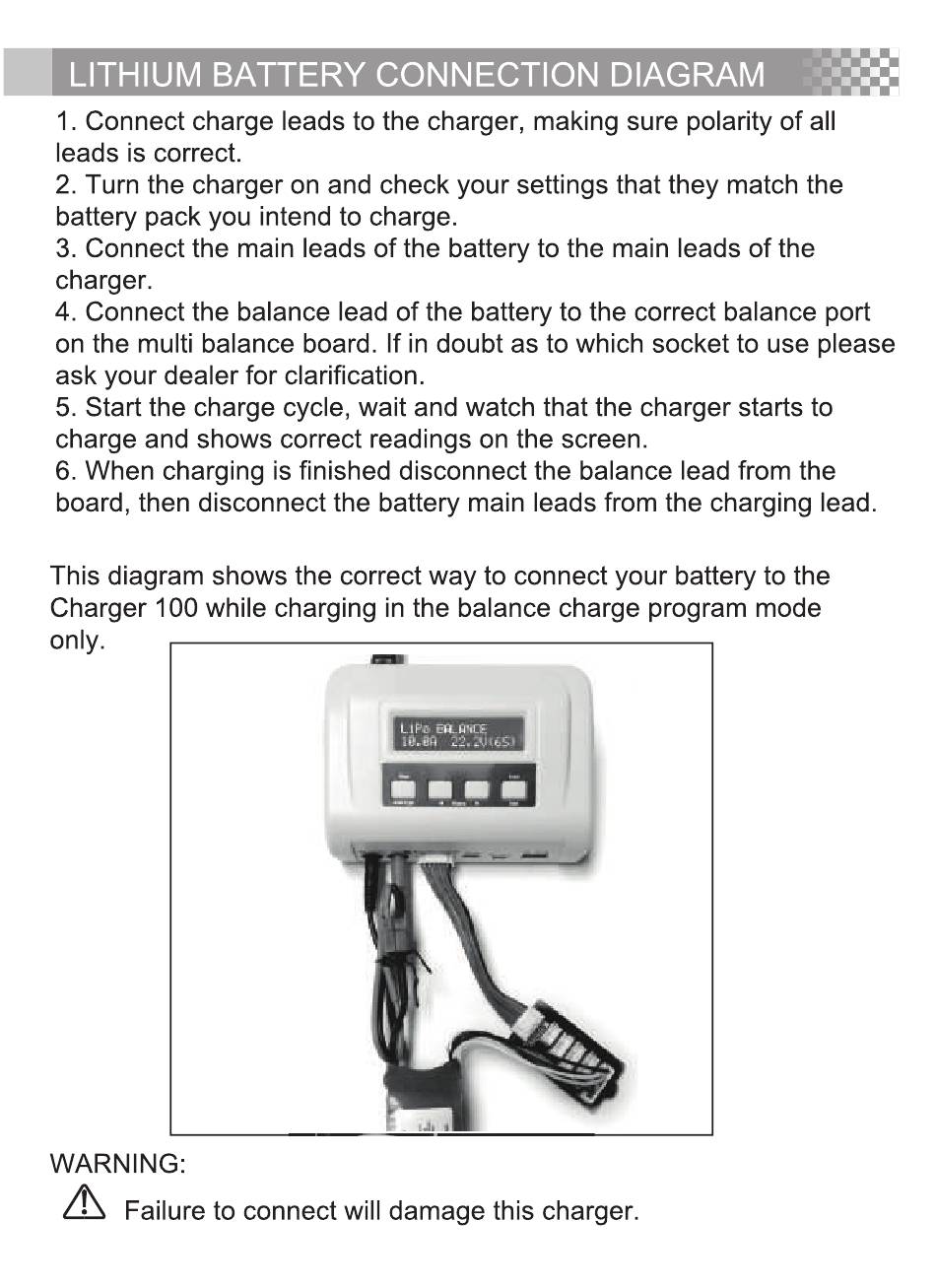

This diagram shows the correct way to connect your battery to the
Charger 100 while charging in the balance charge program mode
only.
WARNING:
Failure to connect will damage
CONNECTION
is finished disconnect
DIAGRAM
the balance
this charger.
lead from the
