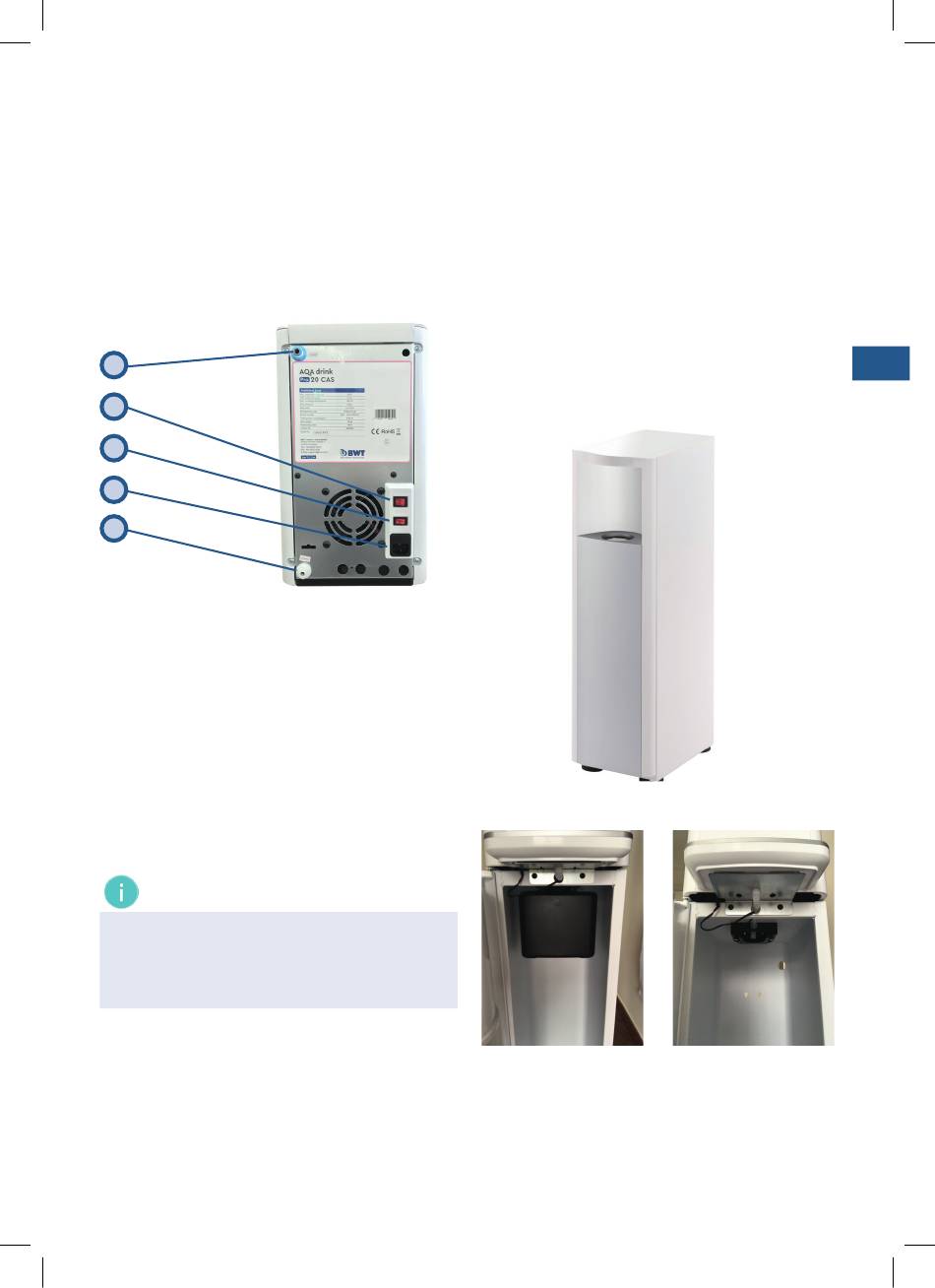

The rear panel of the AQA drink Pro 20 CAS water
dispenser has the following connections (Fig. 3)
1 On/off switch for the cooling function (COLD)
2 On/off switch for the carbonator pump (CO 2 )
3 Power connection
4 CO 2 connection (CO 2 INLET)
5 Water connection (WATER INLET)
4
1
2
3
5
Abb. 3: Rückseite des AQA drink Pro 20 CAS
Fig. 3: Rear panel of the AQA drink Pro 20 CAS
3.3 Function of the integral UV system in the AQA
drink Pro 20
The AQA drink Pro 20 CAS water dispenser has
an integrated UV system with a lamp output of 11
watts. When the UV lamp is in operation, the LED
indicator on the front of the control panel lights
up. Water dispensing and UV-sterilization start
immediately after pressing a button. After each
time water is dispensed, UV sterilisation continues
for approximately 60 seconds each time water is
dispensed.
Note!
If the UV lamp is defective or is not connected, water
can still be freely dispensed. without restrictions.
However, an acoustic warning signal sounds when
the selection buttons are pressed and the LED
indicator on the operator panel fl ashes.
3.4 AQA drink Pro 20 cabinet (optional)
The AQA drink Pro 20 water dispenser (Fig. 4) is also
available with an optional cabinet for installing the
water dispenser as a free-standing unit. The cabinet
has height-adjustable feet on the underside and an
integrated cup dispenser on the front. A wastewater
tank with a wastewater level sensor is connected to
the upper section inside the cabinet (Fig. 5 and Fig.
6). The cable for the level sensor in the cabinet is
connected to the plug on the left-hand side of the
base plate of the water dispenser.
The scope of supply for the cabinet comprises:
•
Integrated wastewater tank (3 l)
•
Drip tray holder
Abb. 4: AQA drink Pro 20 Kabinetexternal view
Fig. 4: AQA drink Pro 20 cabinet (external view)
Fig. 5
Fig. 5: Interior of the AQA drink Pro 20 cabinet with
Abb. 5:AQA drink Pro 20 Kabinett innen mit einge-
wastewater tank in place
hängtem Abwassertank
Fig. 6: Interior of the AQA drink Pro 20 cabinet with-
Abb. 6:AQA drink Pro 20 Kabinett innen ohne einge-
out wastewater tank in place
hängtem Abwassertank
EN
Fig. 6
