Fitting the CrashBox magnetic to the
robot
Safety

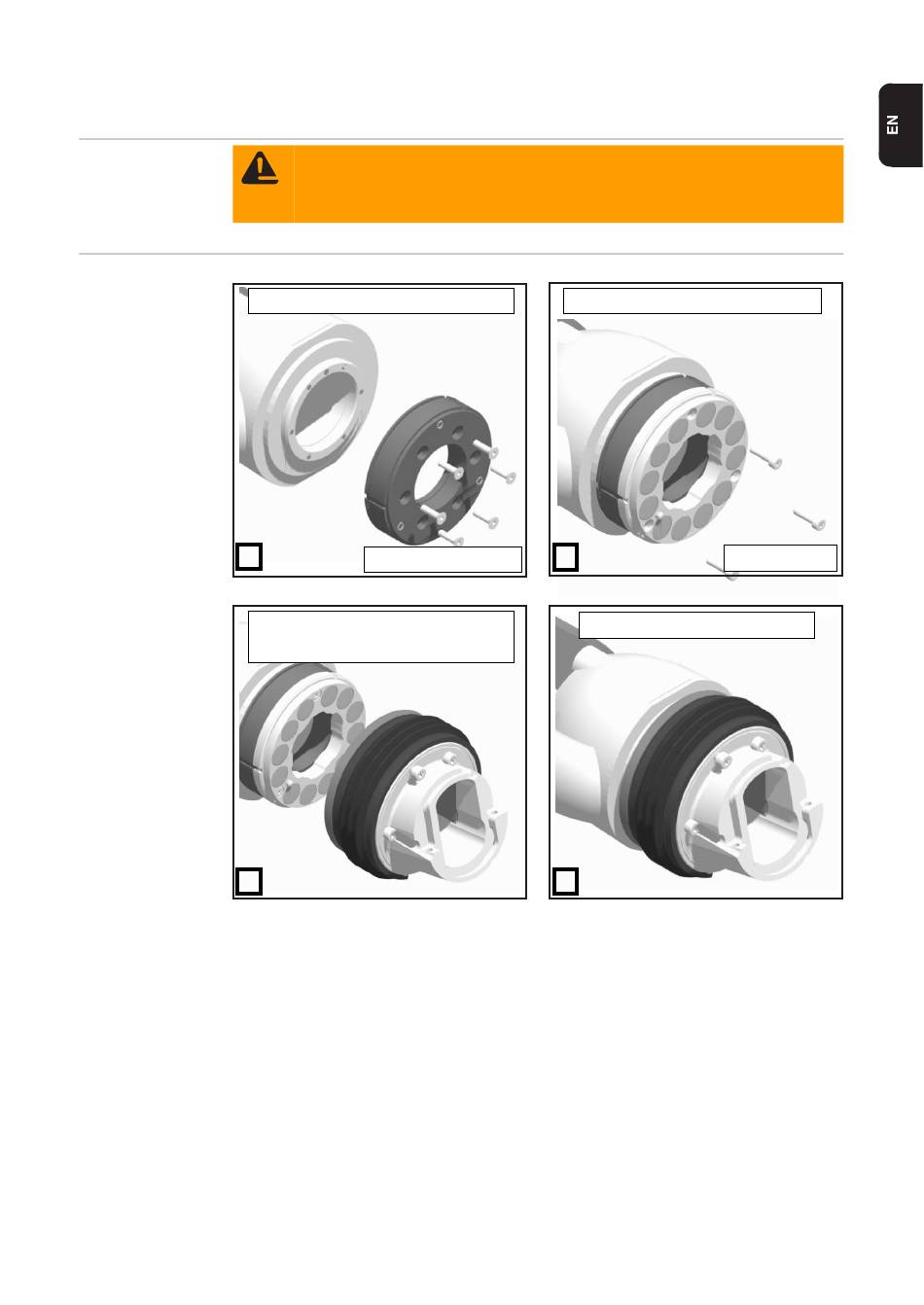

Fitting the CrashBox
magnetic to the
robot
1
3
WARNING! Incorrectly executed work can cause serious injury or damage. The
following activities may only be carried out by trained and qualified personnel.
Observe the safety rules in the power source operating instructions.
Secure the robot flange with the screws provided
Torque: see table on page 2
Attach CMT mounting bracket (making sure to fit it
correctly in line with the lugs and the 3 grooves on the
bellows and flange).
Secure the magnetic plate with 3 x M4x16 screws
2
Click locking ring into place and then lock
4
Torque: 4 Nm
3
