DDR DIMM Modules: DDR1-2

DRAM Access Time: 2.5V Unbuffered DDR 200/266/Fuzzy 333 MHz
Type required (x16 does not support).
DRAM Type: 64MB/ 128MB/ 256MB/ 512MB/ 1GB DIMM Module (184
pin)
DIMM Socket
Location
DDR 1 64MB/128MB/256MB/512MB/1GB
DDR 2 64MB/128MB/256MB/512MB/1GB
* The list shown above for DRAM configuration is only for reference.

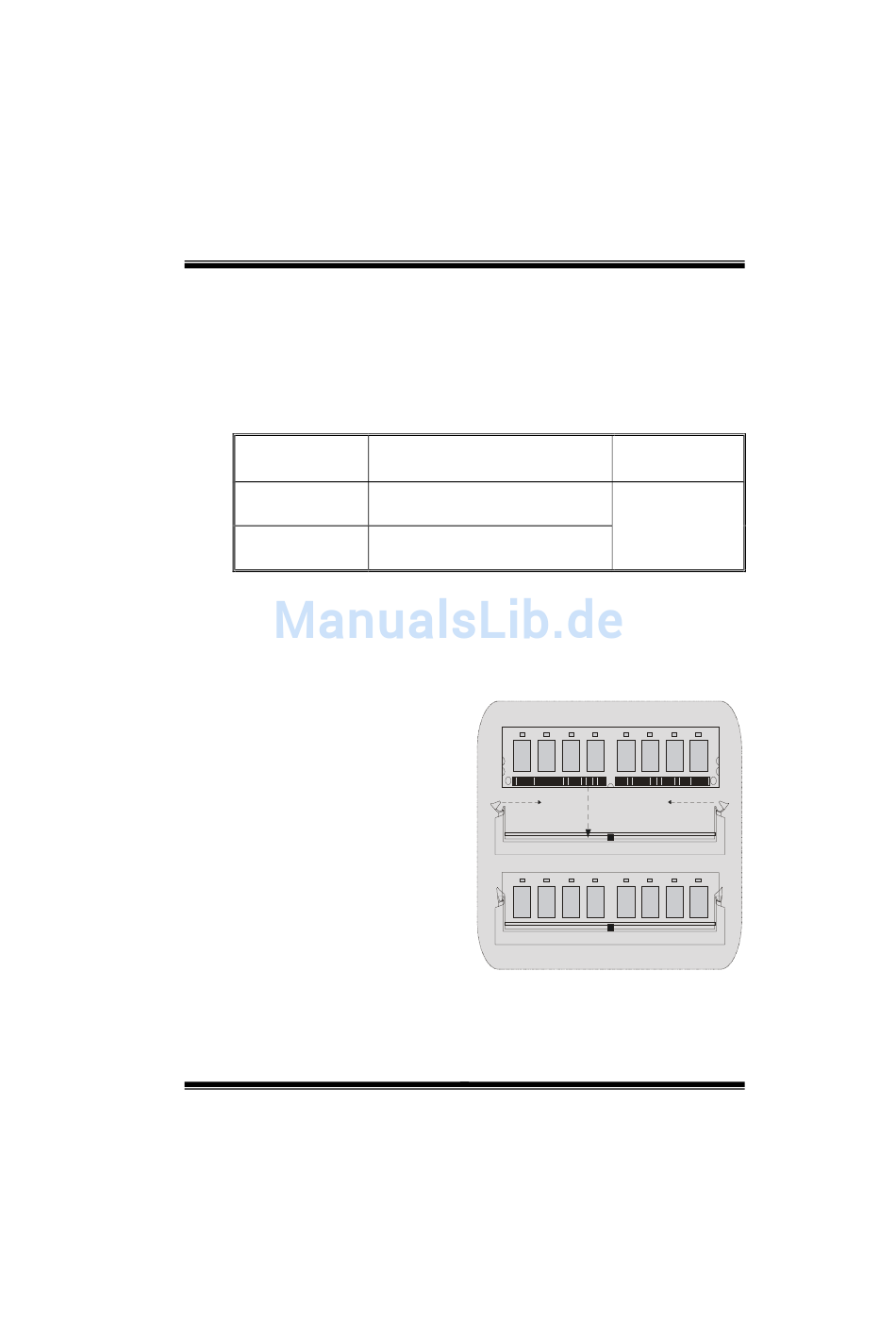

How to install a DIMM Module
1. The DIMM socket has a
" Plastic Safety Tab", and the
DIMM memory module has an
"Asymmetrical notch",
DIMM memory module can only
fit into the slot in one direction.
2. Push the tabs out. Insert the
DIMM memory modules into the
socket at a 90-degree angle, then
push down vertically so that it will
fit into the place.
3. The Mounting Holes and plastic
tabs should fit over the edge and
hold the DIMM memory modules
in place.
DDR Module
*1
*1
so the
4
Total Memory
Size (MB)
Max is
2GB
